Armario rack Lanview RSL12U61BL 12U negro 600 kg IP20

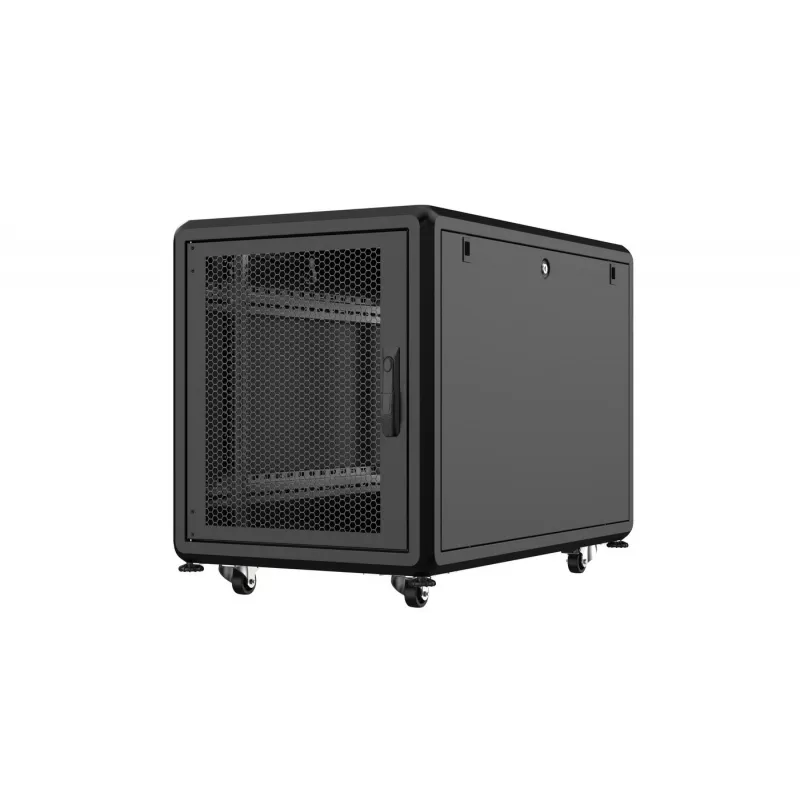

The Lanview RSL12U61BL is a 12U freestanding rack cabinet designed for indoor network and server equipment. It offers a compact footprint (600 x 1000 x 719 mm) with a black finish, a load capacity up to 600 kg and IP20 protection for use in offices, server rooms and other controlled indoor environments. The cabinet is built from robust metal components and includes removable front and rear doors, side panels and integrated cable entry points to simplify installation, maintenance and cable management.

Advantages

The cabinet’s modular design allows tool-light assembly and disassembly. A spring-loaded, reversible front door with 4 mm tempered smoke glass and handle-locking mechanism provides secure access and visibility for mounted equipment. Removable solid metal rear door panels use a barrel-locking mechanism for quick access during relocation or servicing. Top and bottom brushed cable entries, a raised roof profile and rubber-edged sliding cable entry on the bottom chassis enable protected cable routing and passive ventilation while reducing dust and moisture ingress. Side panels and additional structural supports increase rigidity and allow easy access on both sides.

Suitable for

• Small server rooms and IT closets
• Network switches, patch panels and rackmount equipment up to 12U
• Office installations requiring secure, indoor equipment housing (IP20)

Key specifications

• Rack capacity: 12U
• External dimensions (W × D × H): 600 × 1000 × 719 mm
• Maximum load capacity: 600 kg
• Protection rating: IP20 (indoor use)
• Weight: 44.5 kg
• Front door: split metal frame with 4 mm tempered smoke glass, handle lock
• Rear door: removable solid metal door with barrel lock
• Cable management: 3U brushed cable entries top and bottom, rubber-edged sliding bottom entry, vertical cable manager integration
• Side panels: removable with barrel-locking system; split panels on taller models for limited-space access

How to use

Position the freestanding cabinet on a level surface and verify clearances for airflow and cable routing. Assemble panels and doors using basic tools following the included instructions; the front door hinge system allows changing the opening direction and tool-free removal. Install equipment into standard 19" mounting rails, secure cabling through the top and bottom brushed entries or the rubber-edged sliding entry, and fasten vertical cable managers where required. For maintenance or relocation, remove side or rear panels using the barrel locks to access the interior.

Recommendations

Place the cabinet in a controlled indoor environment consistent with its IP20 rating, avoid exposure to moisture, and ensure adequate ventilation or add active cooling if installed equipment generates significant heat. Use the integrated cable management features to route and secure cables to reduce strain on connectors and maintain airflow.
