Armario rack Triton RIE-27-A68-CCX-A1 19 pulgadas 27HE blanco 600x800 mm 400 kg de carga

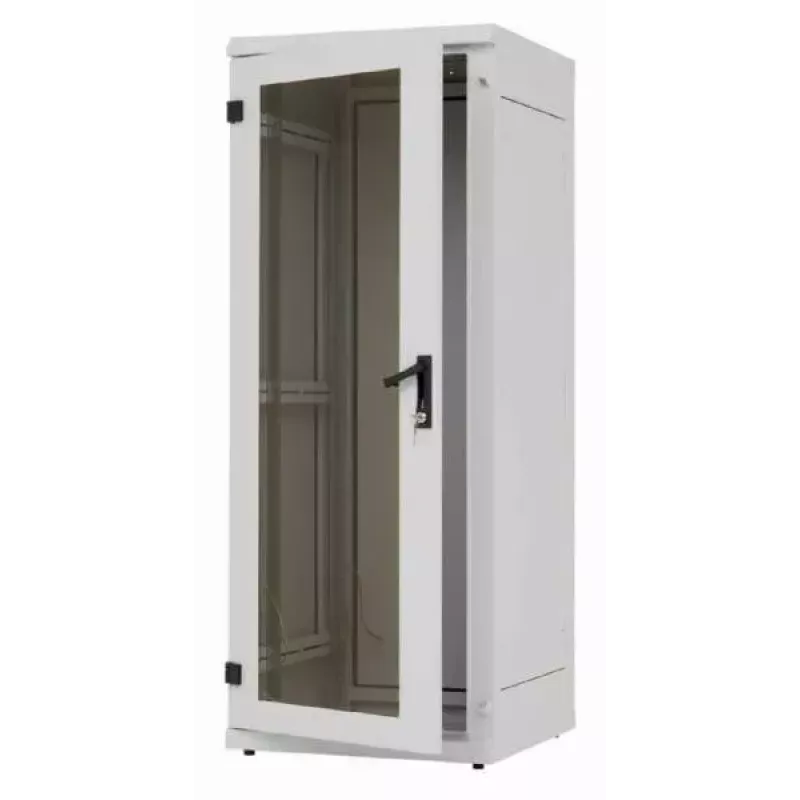

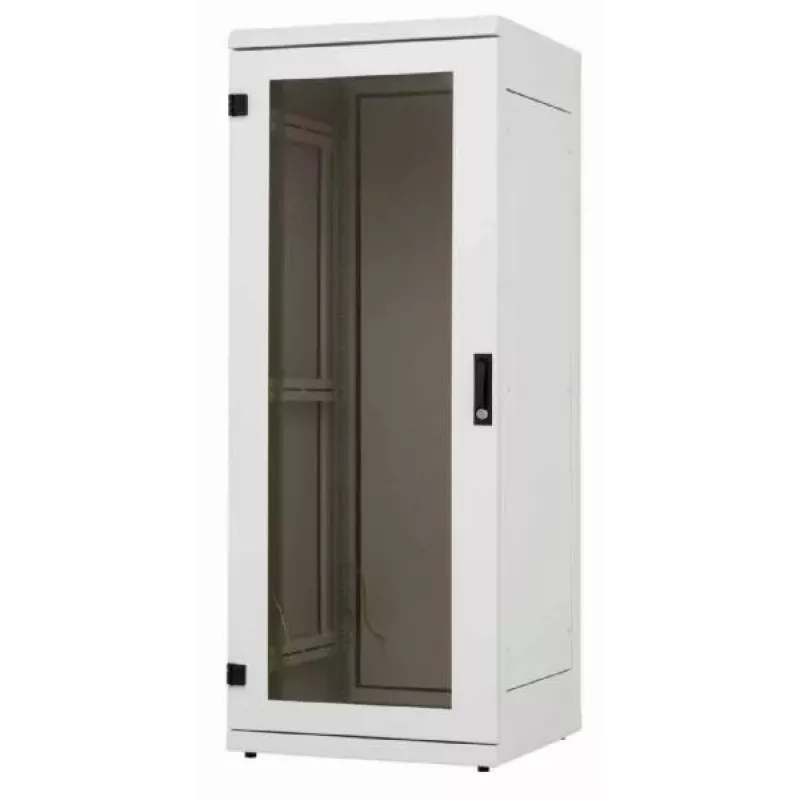

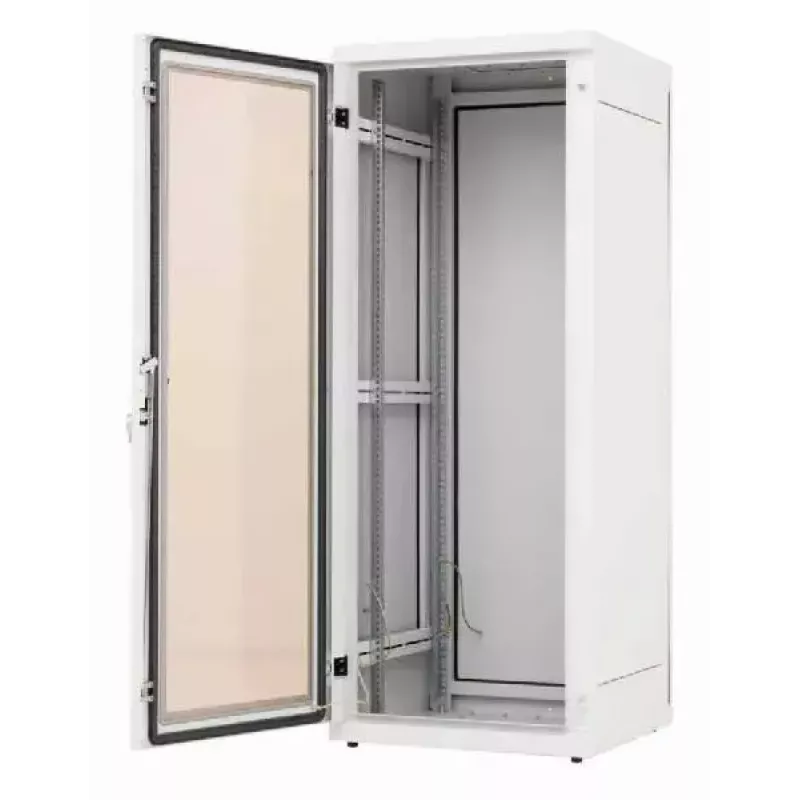

The Triton RIE-27-A68-CCX-A1 19" 27U rack cabinet is a floor-mounted enclosure in a white finish designed for mounting network and server equipment. It offers 27U of usable rack height in a 19-inch format, with external dimensions of 600 mm width and 800 mm depth and an overall height of 1300 mm. The cabinet is rated for a maximum static load capacity of 400 kg and weighs 75.7 kg, making it suitable for telecom, data centre and server room installations where organised mounting and basic protection are required.

Advantages

This rack cabinet provides a standard 19" mounting frame with 27U of usable vertical space, allowing consolidation of servers, switches and patch panels in a single enclosure. The 600 x 800 mm footprint balances equipment capacity and floor space usage, while the white colour supports neat visual integration into office or technical environments. A static load rating of 400 kg ensures the cabinet can support typical combinations of networking and server hardware. The cabinet's weight and construction contribute to stable installation on finished floors.

Suitable for

• Small to medium server rooms and network closets
• Telecommunication racks for switches, patch panels and small servers
• Edge data installations and branch office IT closets

When it may not be suitable

This cabinet may not be suitable for applications that require high security certifications, specialised environmental protection beyond standard indoor use, or extremely heavy machinery that exceeds the 400 kg static load. It is also not intended for installations that need built-in climate control, redundant power distribution units, or custom internal shelving not specified by the manufacturer.

Key specifications

• Usable rack height: 27U (19" standard)
• External width: 600 mm
• External depth: 800 mm
• External height: 1300 mm
• Maximum static load capacity: 400 kg
• Net weight: 75.7 kg
• Colour: White

How to use

Place the cabinet on a level, stable floor and ensure sufficient clearance around it for airflow and cable access. Install standard 19" equipment into the vertical mounting rails, observing weight distribution guidelines to keep heavier items low in the rack. Route patch cords and power cables through the cabinet openings or cable management accessories to maintain organised wiring. Follow manufacturer instructions for securing the cabinet to the floor if required by local regulations or site conditions.

What to consider before purchase

• Check internal depth requirements of your equipment to confirm compatibility with 800 mm external depth.
• Verify total equipment weight to ensure the combined load does not exceed 400 kg.
• Ensure the 27U usable height is sufficient for current and planned devices.
• Confirm whether additional accessories (shelves, cable management, PDUs) are needed and compatible.

Recommendations

For stable and safe operation, mount heavier equipment toward the bottom of the rack, maintain organised cable routing to avoid airflow obstruction, and verify floor loading limits. Consider adding earthing/grounding and appropriate airflow or cooling solutions when deploying active server equipment.
