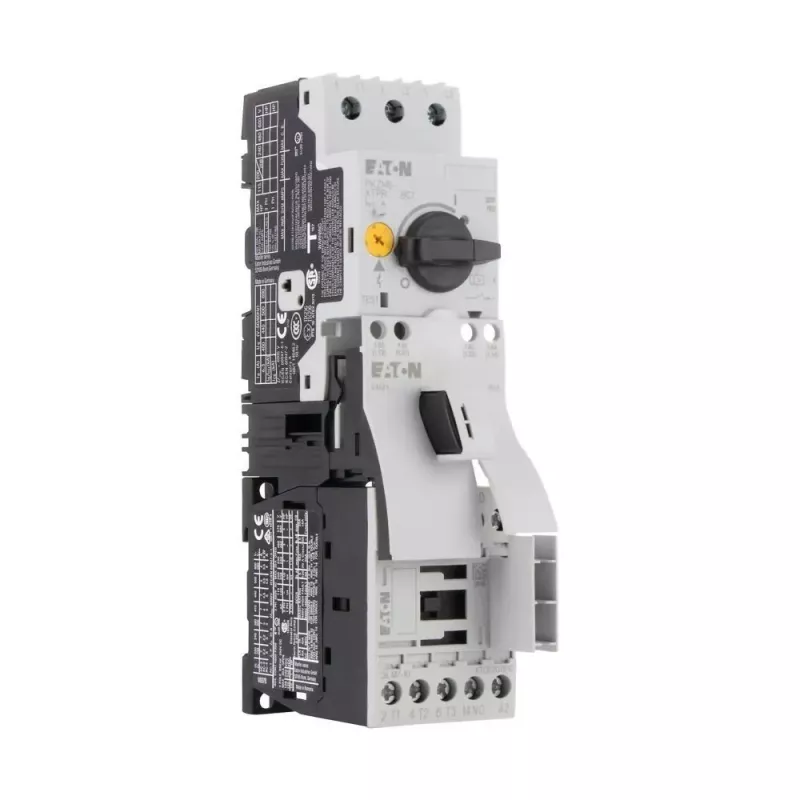

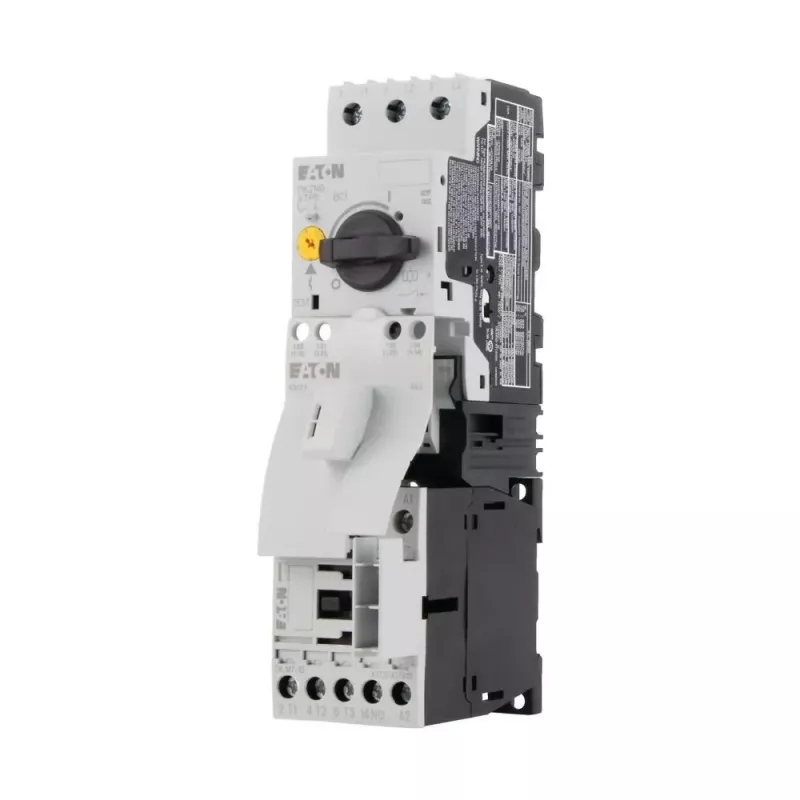

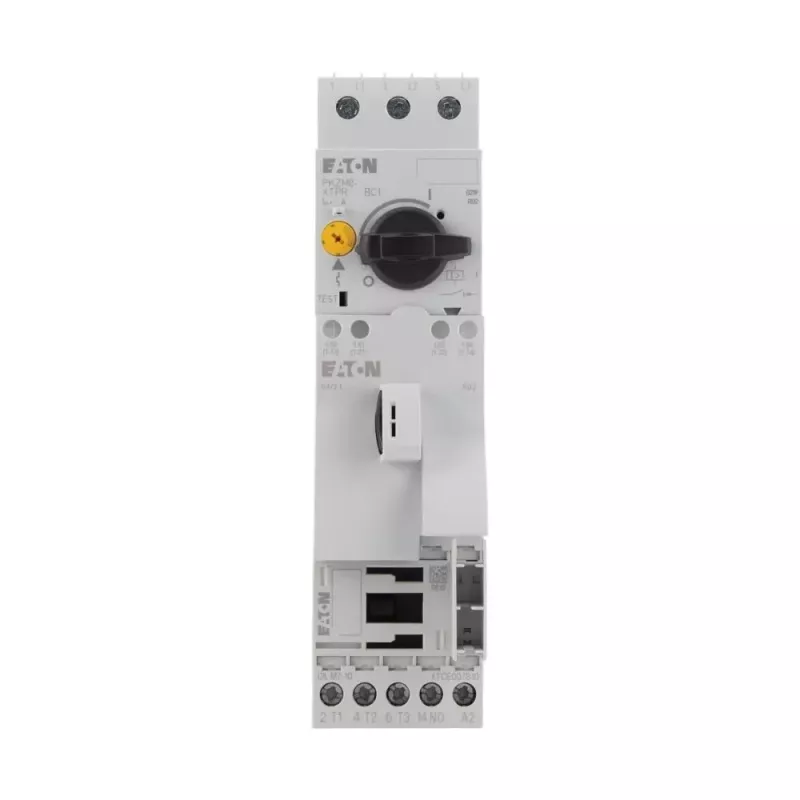

Arrancador directo Eaton MSC-D-1.6-M7, 1,0-1,6 A, 230 V AC, carril DIN 283140

In industrial control panels, the Eaton MSC-D-1.6-M7 direct starter provides a compact solution for switching and protecting small three-phase motors up to 0.37 kW at 230 V AC. It combines a motor protective circuit breaker and a contactor in a single DIN rail mounted unit, simplifying wiring and saving space.

Key specifications

• Rated operational current: 1.6 A
• Thermal overload release range: 1.0 - 1.6 A
• Rated operational voltage: 230 V AC
• Control voltage: 230 V AC, 50/60 Hz
• Rated motor power at 230 V: 0.37 kW
• Number of poles: 3
• Short-circuit protection: integrated
• Coordination type: Type 2
• Auxiliary contacts: 1 NO + 1 NC
• Mounting: DIN rail
• Protection degree: IP20
• Standards: IEC/EN 60947-4-1, VDE 0660
• Ambient operating temperature: -25 to +55 °C

Why choose it

The MSC-D-1.6-M7 offers reliable motor protection and switching in a single device, reducing installation time and panel space. Its Type 2 coordination ensures no damage to the starter under short-circuit conditions, enhancing system uptime.

Ideal use cases

• Small conveyor systems
• Pumps and fans
• Machine tools
• Packaging machinery

Good to know

The starter is designed for DIN rail mounting and operates in ambient temperatures from -25 to +55 °C. It complies with IEC/EN 60947-4-1 and VDE 0660 standards.
