Arrancador de motor PHOENIX ELR H5-I-SC-24DC/500AC-2-L 24 V DC 2,4 A

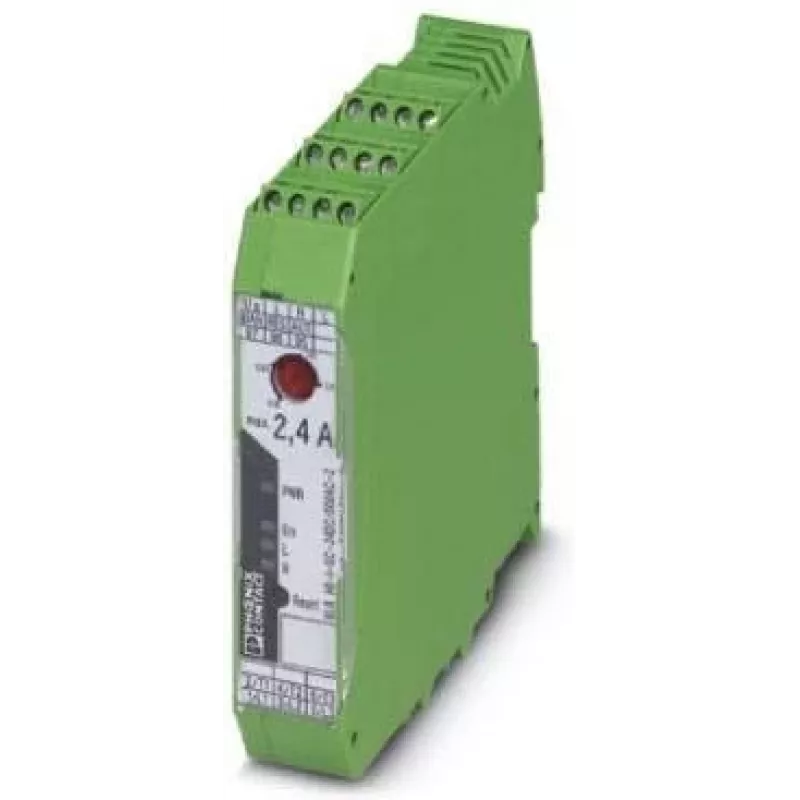

The PHOENIX Motorstarter ELR H5-I-SC-24DC/500AC-2-L (MPN 2905513, EAN 4046356964715) is a compact electronic motor starter designed for controlling and protecting single-phase AC motors from a 24 V DC control signal. It provides a defined inrush and run current handling with a nominal motor current of 2.4 A, suitable for small motors and gear motors in industrial control applications.

Advantages

This motor starter integrates electronic starting and protection functions in a single module, reducing wiring complexity and panel space. It accepts a 24 V DC control input and is built to reliably manage motor start-up current and steady-state operation up to the specified 2.4 A rating. The device is produced by PHOENIX and carries the manufacturer part number 2905513 for straightforward identification and replacement.

Suitable for

Key specifications

How to use

Mount the motor starter in the control cabinet according to PHOENIX mounting guidelines and connect the motor power leads and 24 V DC control wiring following the electrical schematic supplied by the manufacturer. Verify correct wiring polarity and secure terminals to the recommended torque. Configure any adjustable settings if applicable, then perform a test start without load to confirm correct operation before resuming normal service.

Recommendations

Use the starter within its rated current and control voltage limits. Ensure appropriate upstream protection (fuses/circuit breakers) and follow local electrical codes. Replace with identical PHOENIX part number 2905513 for compatibility when servicing.
