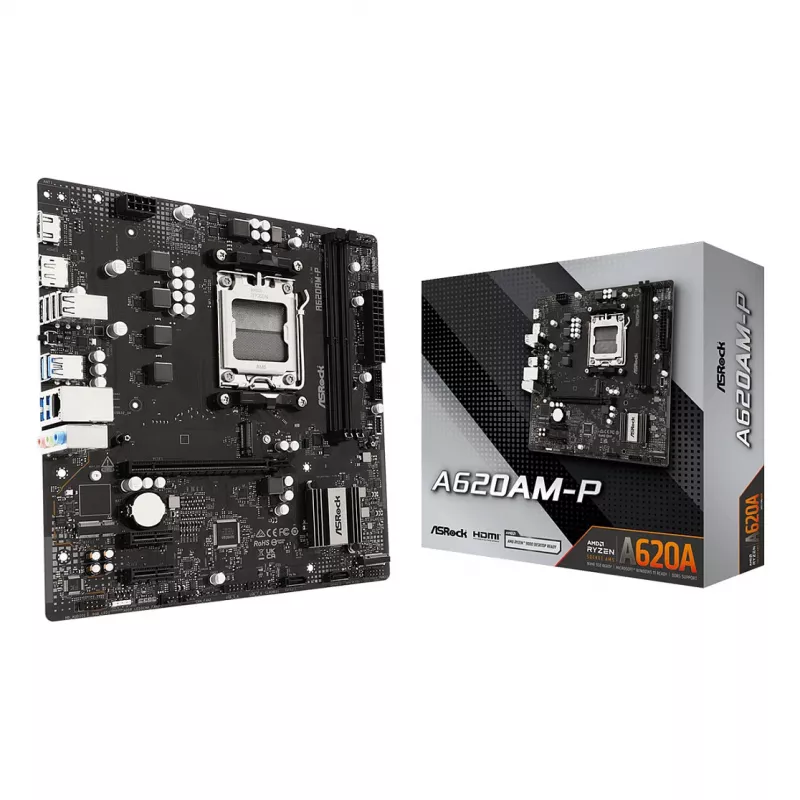

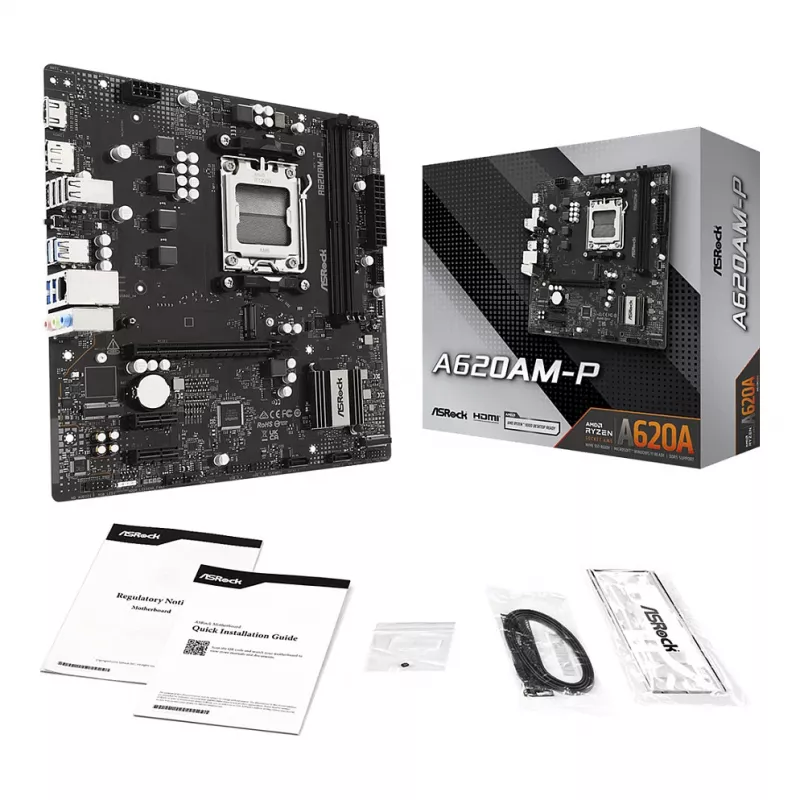

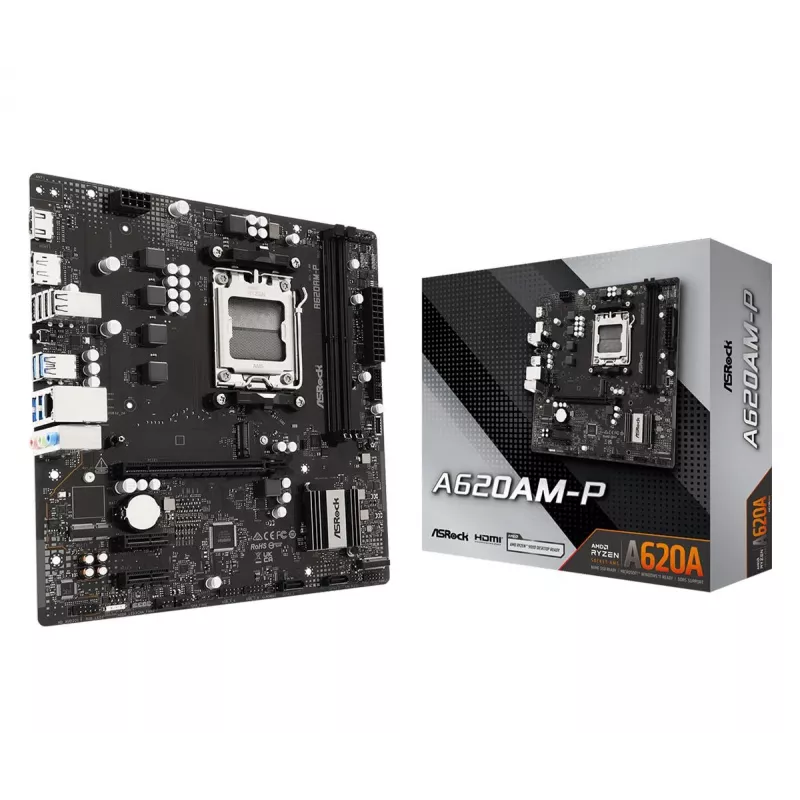

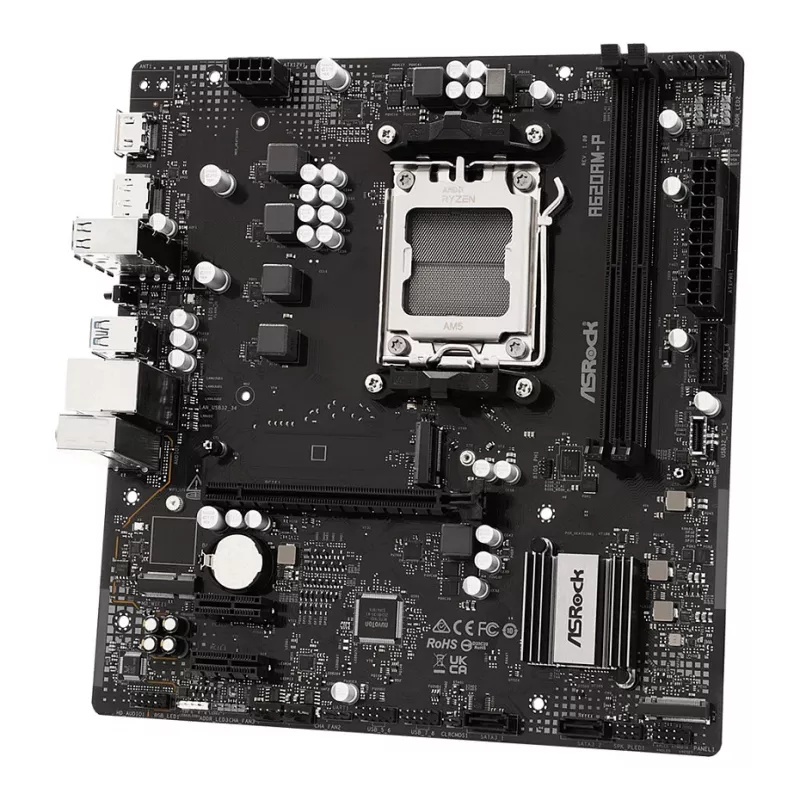

ASRock A620AM-P placa base AMD A620 AM5 Micro ATX (DDR5, HDMI, DisplayPort, M.2)

Unlock the full potential of AMD Ryzen 7000 series processors with the ASRock A620AM-P, a Micro ATX motherboard engineered for compact builds that demand high-speed DDR5 memory and PCIe Gen4 storage. Experience blazing-fast data transfers up to 64 Gb/s via the Hyper M.2 slot, making this board a powerhouse for office workstations, home servers, and everyday computing.

Overview

Built on the AMD A620 chipset, the A620AM-P delivers a perfect balance of performance and value. It supports up to 96GB of DDR5 memory across two DIMM slots, with overclocking speeds reaching 6400+ MHz for seamless multitasking. The PCIe 4.0 x16 slot ensures compatibility with the latest graphics cards, while the single M.2 PCIe Gen4 x4 slot provides ultra-fast NVMe SSD storage. Connectivity is robust with Gigabit LAN, HDMI, DisplayPort, and multiple USB ports, all wrapped in a durable Micro ATX form factor.

What stands out

• AMD AM5 socket supports Ryzen 7000 series processors for cutting-edge performance.
• DDR5 memory technology with overclocking support up to 6400+ MHz for responsive computing.
• Hyper M.2 interface (PCIe Gen4 x4) enables NVMe SSDs with exceptional read/write speeds.
• Realtek ALC897 7.1-Channel HD Audio delivers immersive sound for entertainment and conferencing.
• Gigabit LAN via Realtek RTL8111H ensures reliable, high-speed network connectivity.
• HDMI and DisplayPort outputs allow seamless integration with modern monitors and displays.

Technical details

• CPU Socket: AMD AM5
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory: 2x DDR5 DIMM slots, up to 96GB, supports DDR5 6400+(OC) MHz
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x Hyper M.2 (PCIe Gen4 x4), 4x SATA III 6Gb/s

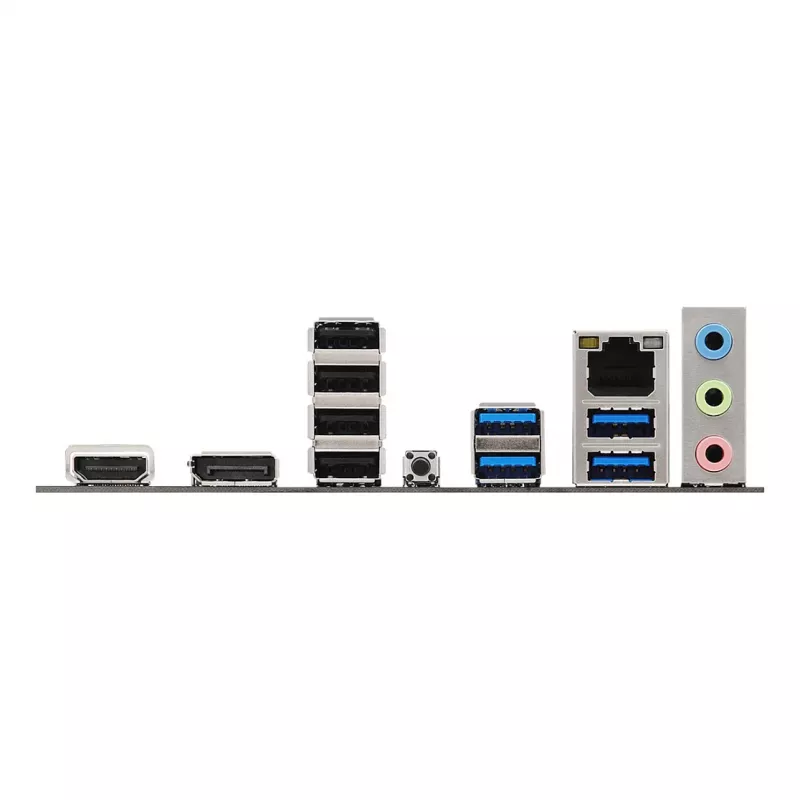

• Rear USB Ports: 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 Type-A
• Video Outputs: 1x HDMI, 1x DisplayPort
• Audio: Realtek ALC897 7.1-Channel HD Audio Codec
• LAN: Realtek Gigabit LAN
• Internal Headers: 1x USB 3.2 Gen1, 2x USB 2.0
• Power Connectors: 1x 24-pin ATX, 1x 8-pin 12V

Our verdict

The ASRock A620AM-P is a smart choice for builders seeking a reliable, future-ready foundation without breaking the bank. Its DDR5 support and PCIe Gen4 M.2 slot deliver tangible performance gains, while the compact Micro ATX design fits effortlessly into space-conscious cases.
