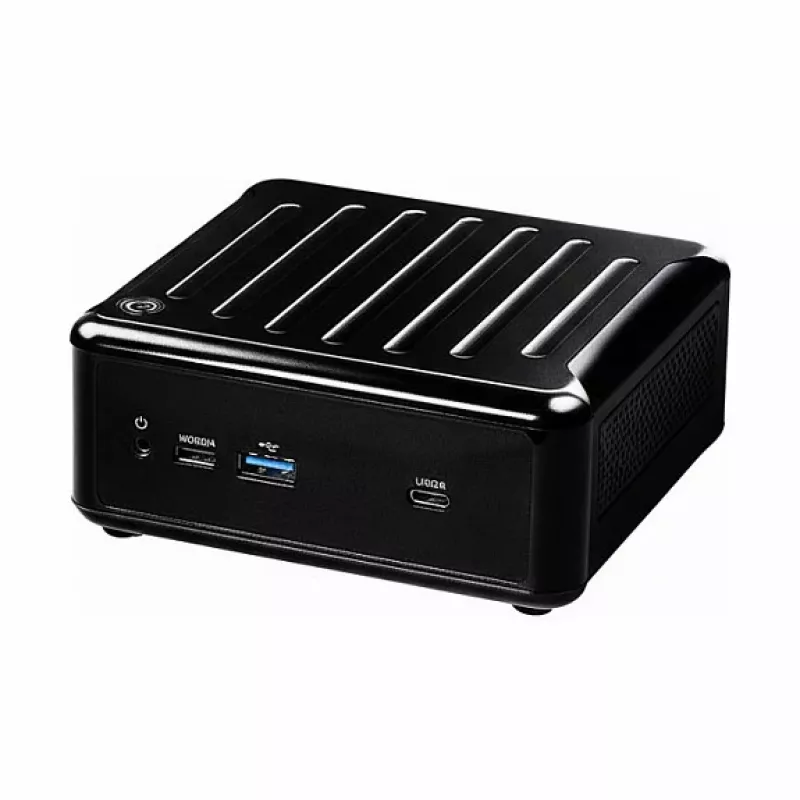

ASRock Barebone NUC-Box-1340P/D4 Intel Core i5-1340P Mini-PC

The ASRock NUC-Box-1340P/D4 packs a 13th Gen Intel Core i5-1340P processor into a compact barebone chassis, offering a blend of performance and expandability for space-constrained environments. Unlike fully assembled mini PCs, this unit lets you choose your own DDR4 memory, storage, and operating system, making it a flexible foundation for custom builds.

Highlights

• Intel Core i5-1340P with 12 cores and 16 threads, up to 4.6 GHz
• Supports up to 64GB DDR4-3200 via two SO-DIMM slots
• Dual storage options: M.2 2280 PCIe Gen4x4 and 2.5" SATA
• Intel Wi-Fi 6E and Bluetooth 5.2 for modern wireless connectivity
• Dual LAN: 2.5 Gigabit and Gigabit Ethernet
• Triple display support via 2x HDMI 2.0b and DisplayPort 1.4a

In daily use

With its VESA mount support and 19V/90W power adapter, the NUC-Box-1340P/D4 fits neatly behind a monitor or under a desk. The front USB-C and USB-A ports provide quick access for peripherals, while the rear I/O includes additional USB 3.2 Gen2 and USB 2.0 ports. The integrated Intel Iris Xe Graphics handles everyday productivity and light content creation tasks.

Full specifications

• Processor: Intel Core i5-1340P (13th Gen, 12 cores, 16 threads, up to 4.6 GHz)
• Graphics: Intel Iris Xe Graphics (integrated)
• Memory slots: 2 x DDR4 SO-DIMM, max 64GB DDR4-3200
• Storage: 1 x M.2 2280 PCIe Gen4x4, 1 x 2.5" SATA 6Gb/s
• Networking: 1 x 2.5 Gigabit LAN (Intel I226-V), 1 x Gigabit LAN (Intel I219-LM), Intel Wi-Fi 6E AX211, Bluetooth 5.2
• Video outputs: 2 x HDMI 2.0b, 1 x DisplayPort 1.4a
• Front ports: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 1 x USB 2.0 Type-A, 1 x headphone/mic combo jack
• Rear ports: 2 x USB 3.2 Gen2 Type-A, 1 x USB 2.0 Type-A
• Power: 19V/90W AC adapter
• Form factor: Mini PC barebone, VESA mount support

Final note

This barebone system requires memory, storage, and an operating system to be fully functional.
