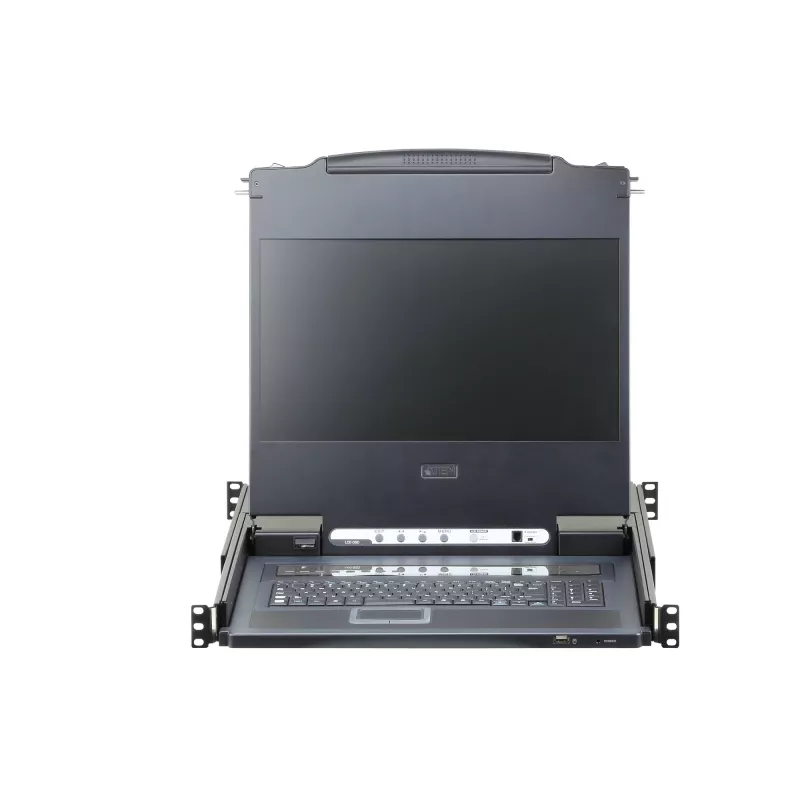

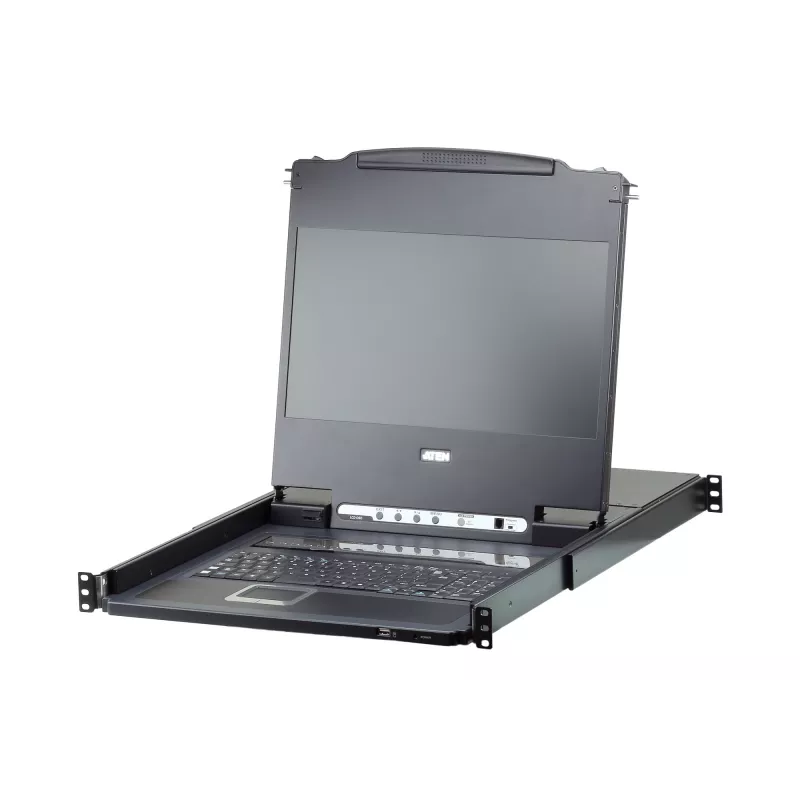

ATEN CL6708MW Consola de rack 43,9 cm (17,3") 1920 x 1080 píxeles metal, plástico negro 1U

The ATEN CL6708MW is a 1U rack-mountable LCD KVM switch that combines a 17.3" LED-backlit full HD (1920 x 1080) display, integrated keyboard and touchpad, and native DVI compatibility for managing multiple computers from a single console. Designed for space-efficient rack installations, the CL6708MW supports cascading with up to eight CS1768 8-port KVM switches to control as many as 64 computers. It accepts high-definition YUV signals, is HDCP compatible for protected content, and provides USB keyboard and mouse interfaces along with DVI/DisplayPort video connectivity.

Advantages

The CL6708MW delivers clear 1080p video on a 17.3" LED display and supports YUV video format for improved compatibility with high-definition sources. Native DVI support and HDCP compatibility make it suitable for environments that require protected media playback. Its 1U rack design integrates keyboard and touchpad in a single, space-saving unit, and cascading capability enables scalable management of up to 64 systems. USB keyboard and mouse ports and support for common keyboard layouts increase interoperability.

Suitable for

• Data centers and server rooms managing multiple servers
• Corporate or educational environments requiring secure playback of HD content
• Control rooms and monitoring stations that need compact rack-mounted consoles

Key specifications

• Display: 17.3" LED-backlit LCD, 1920 x 1080 (Full HD)
• Video ports: DVI/DisplayPort (native DVI compatibility)
• Maximum controlled computers: Up to 64 via cascading with CS1768 units
• Keyboard / Mouse: USB ports
• Video format compatibility: YUV; HDCP compatible
• Scan interval: 1–255 seconds
• Input voltage: 100–240 V
• Weight: 12.7 kg
• Colour: Black
• MPN / EAN: CL6708MW-ATA-2XK06DNG / 5711783215752

How to use

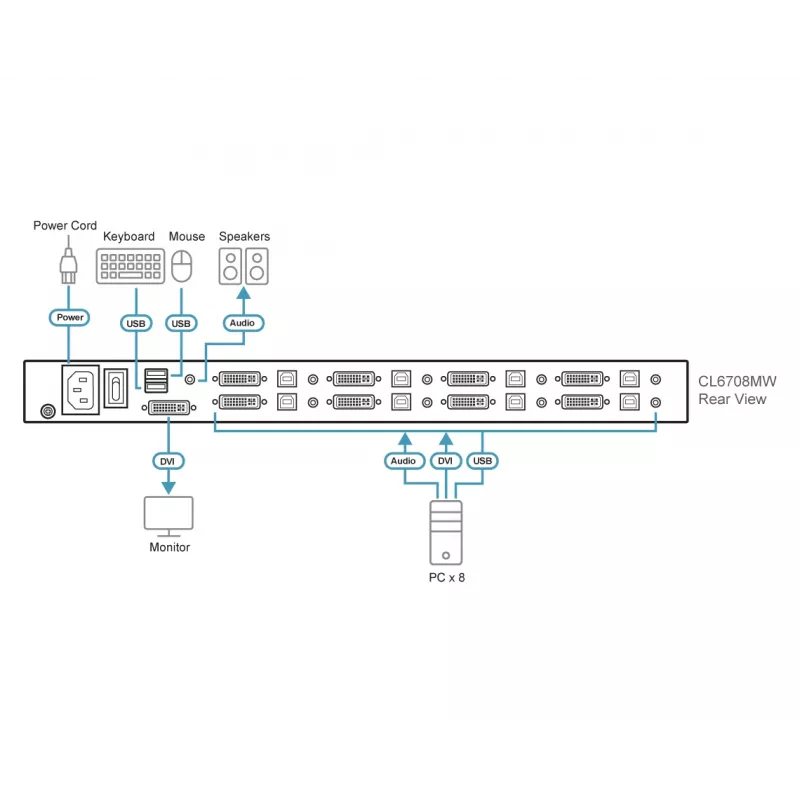

Install the CL6708MW in a standard 19" rack occupying 1U of space. Connect DVI or DisplayPort video cables and USB keyboard/mouse cables from each server to the appropriate KVM ports or to cascaded CS1768 switches to expand capacity. Power the unit with the supplied AC input (100–240 V). Use the integrated keyboard, touchpad and LCD to switch between connected computers; configure scan interval and other settings as required for your environment.

Recommendations

Place the unit in a well-ventilated rack location and verify cable quality for DVI/DisplayPort connections to ensure full 1080p performance. Use HDCP-compatible sources and cables when working with protected content. If managing many systems, plan cascading topology and label connections for easier maintenance.
