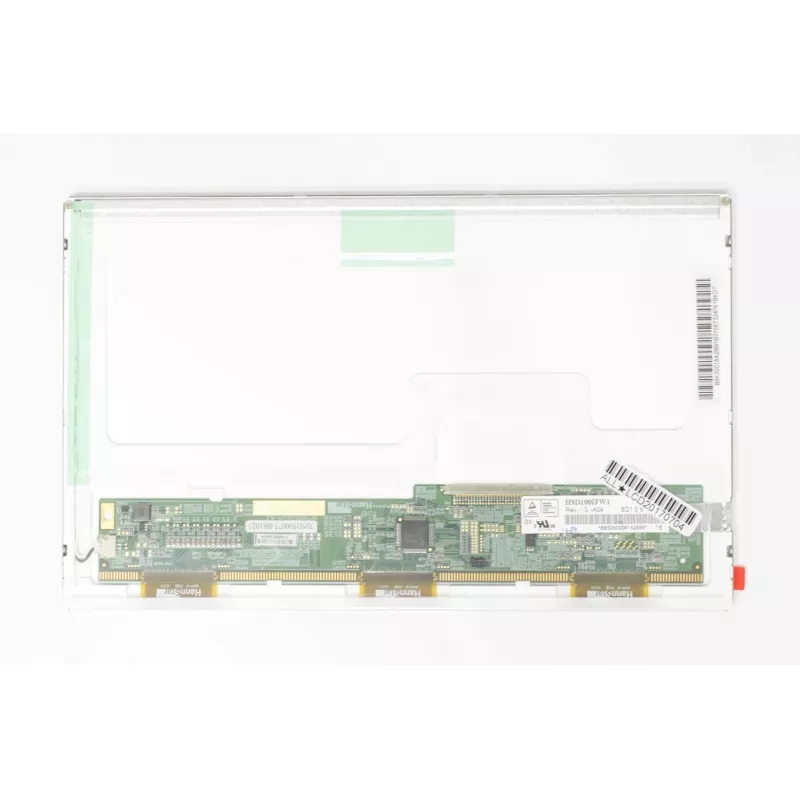

AUO LC300624 Panel LCD WSVGA de 10,1 inch 60Hz mate 30 pines LVDS (conector derecho)

The AUO LC300624 stands out for its matte anti-glare surface, which keeps reflections low in bright environments, and its 30-pin LVDS connector positioned on the right when viewed from the back—making it a direct fit for many laptop and tablet replacement projects.

Highlights

• 10.1-inch TFT-LCD panel with 1024 x 600 WSVGA resolution and 16:9 aspect ratio
• 60 Hz refresh rate and 6-bit colour depth (262K colours)
• Matte (anti-glare) finish reduces reflections for comfortable viewing
• LED backlight with 200-220 cd/m² brightness and 400:1-500:1 contrast ratio
• 30-pin LVDS connector on the right side (viewed from the back)
• TN technology with response time of 8-12 ms
• Viewing angles: 45/45/15/35 degrees (L/R/U/D)
• Screw or bracket mounting for secure installation

In daily use

This panel is intended for replacement or upgrade in devices that require a 10.1-inch WSVGA display with a 30-pin LVDS interface. The matte coating helps maintain visibility under overhead lighting, and the right-side connector orientation simplifies cable routing in many chassis. Power consumption is approximately 2-3 W, typical for a panel of this size.

Full specifications

• Screen size: 10.1 inches
• Resolution: 1024 x 600 (WSVGA)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Panel type: TFT-LCD, TN technology
• Surface finish: Matte (anti-glare)
• Backlight type: LED
• Connector type: 30-pin LVDS
• Connector position: Right (viewed from the back)
• Colour depth: 262K (6-bit)
• Brightness: 200-220 cd/m²
• Contrast ratio: 400:1 - 500:1
• Viewing angle: 45/45/15/35 (L/R/U/D)
• Response time: 8-12 ms
• Mounting type: Screw mount / bracket mount
• Condition: New
• Application: Laptop / Tablet replacement
• Compatibility: Universal for compatible 30-pin LVDS devices
• Power consumption: ~2-3 W

Final note

Confirm the connector position and mounting points before ordering to ensure compatibility with your device.
