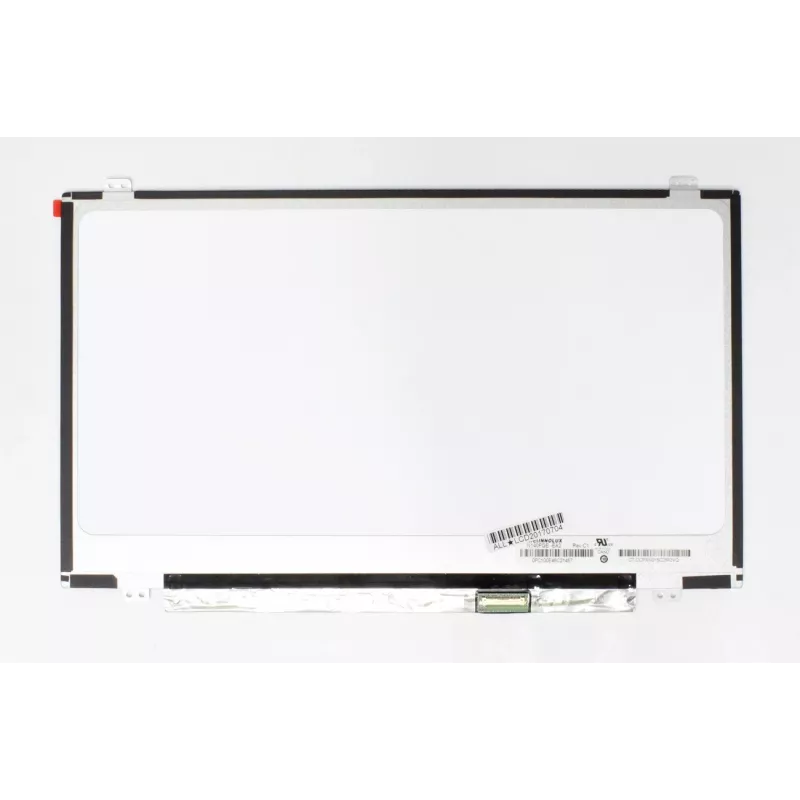

AUO LC300709 pantalla portátil 14,0" 1600x900 60Hz mate 30 pines eDP TN

Replace a failed or damaged laptop display with this AUO LC300709 14.0-inch panel. It is a direct-fit solution for technicians and DIY repairers working on compatible notebooks that require a 1600x900 resolution, 30-pin eDP connection, and a matte surface.

Key specifications

• Screen size: 14.0 inches
• Resolution: 1600 x 900 (HD+)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Panel type: TN
• Surface: Matte (anti-glare)
• Backlight: LED
• Connector: 30-pin eDP
• Connector position: Right (viewed from back)
• Brightness: 220 cd/m²
• Response time: 8 ms
• Color gamut: 45% NTSC
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Contrast ratio: 400:1
• Condition: New

Why choose it

The matte coating reduces reflections in bright environments, and the LED backlight provides consistent illumination. The 30-pin eDP interface is widely used in modern laptops, and the right-side connector placement matches many common chassis designs.

Ideal use cases

• Replacing a cracked or dead 14.0-inch laptop screen
• Upgrading a compatible laptop to a matte display
• Repair services and IT maintenance departments

Good to know

This is a bare panel without mounting brackets. Verify your laptop's connector position and mounting hole pattern before ordering.
