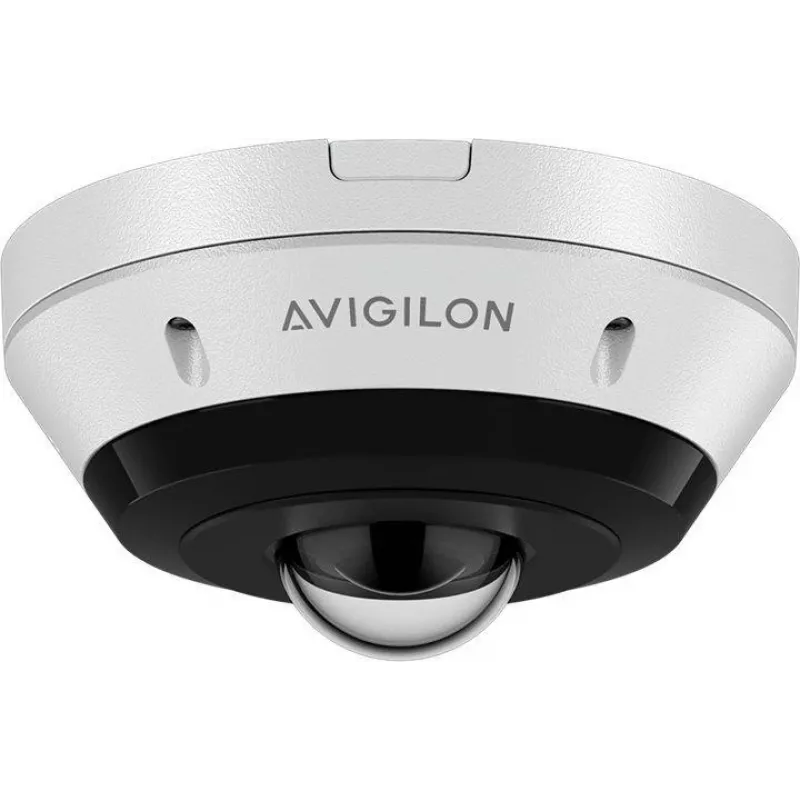

Avigilon Unity 8.0C-H6A-FE-360-DO1-IR Cámara fisheye 8MP H6A, distancia focal fija 1,74mm, montaje en superficie, WDR, IR, IP66/IP67

The Avigilon Unity 8.0C-H6A-FE-360-DO1-IR is a high-performance 8MP fisheye network camera designed for outdoor surveillance. Featuring a 1.74mm fixed lens, it provides a full 360° panoramic view, eliminating blind spots. With advanced H6A technology, Wide Dynamic Range (WDR), and infrared illumination up to 10 meters, this camera delivers clear images in challenging lighting conditions. Its rugged IP66/IP67 and IK10 ratings ensure reliable operation in harsh environments.

Advantages

This camera offers exceptional situational awareness with its 360° fisheye lens, reducing the number of cameras needed for comprehensive coverage. The built-in IR LEDs enable round-the-clock monitoring, while WDR enhances detail in high-contrast scenes. Avigilon Self-Learning Analytics provide intelligent motion detection and object classification, minimizing false alarms. The surface-mount design simplifies installation, and Power over Ethernet (PoE) eliminates the need for separate power cables.

Suitable for

• Outdoor perimeter surveillance
• Large open areas such as parking lots, warehouses, and retail spaces
• Critical infrastructure requiring 360° coverage
• Low-light environments needing IR illumination

Key specifications

• 8 Megapixel CMOS sensor
• 1.74mm fixed lens
• 360° horizontal and vertical field of view
• Infrared range up to 10 m (33 ft)
• Wide Dynamic Range (WDR)
• IP66 and IP67 ingress protection
• IK10 vandal resistance
• Surface mount
• Video compression: H.264, H.265, MJPEG
• Power over Ethernet (PoE) IEEE 802.3af Class 3
• Built-in microphone, two-way audio support
• MicroSD card slot for onboard storage
• Avigilon Self-Learning Analytics
• Operating temperature: -40°C to +60°C (-40°F to +140°F)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface is sturdy enough to support the camera. For advanced analytics, integrate with Avigilon Control Center (ACC) software.
