Cámara de vigilancia Axis 02484-001 2592 x 1944 píxeles

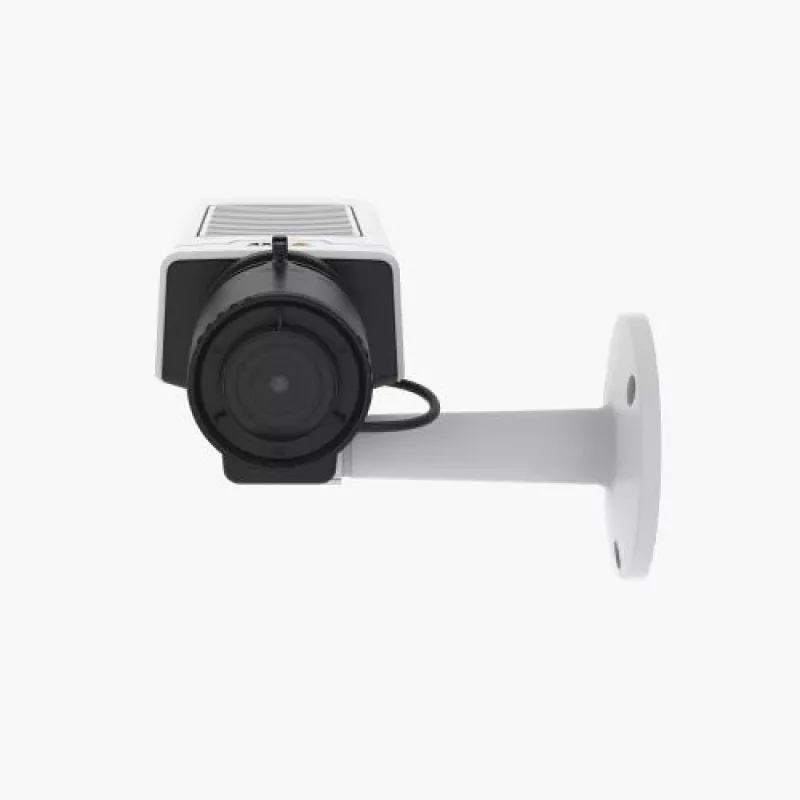

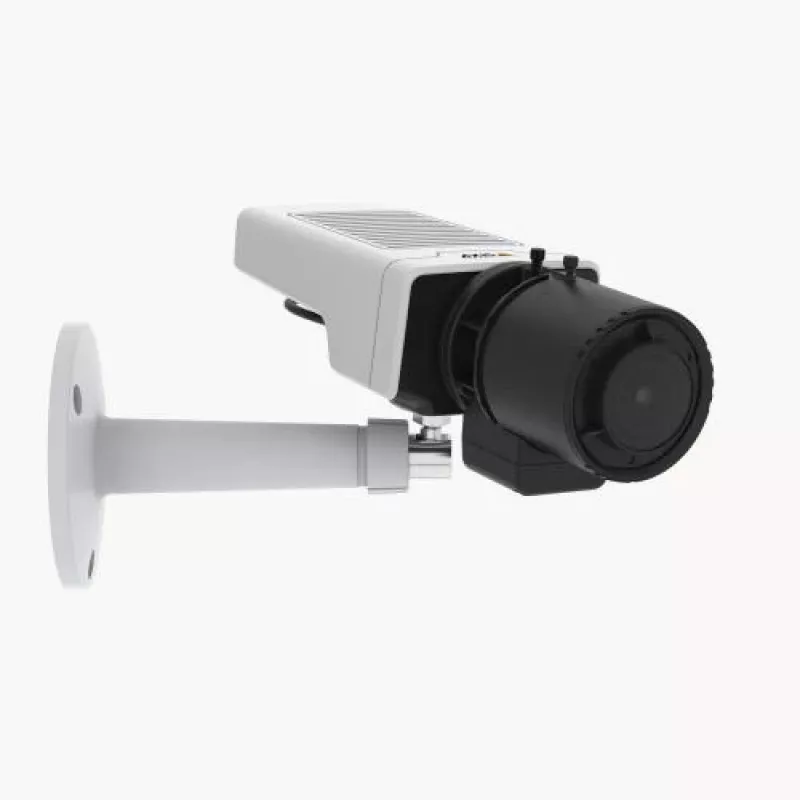

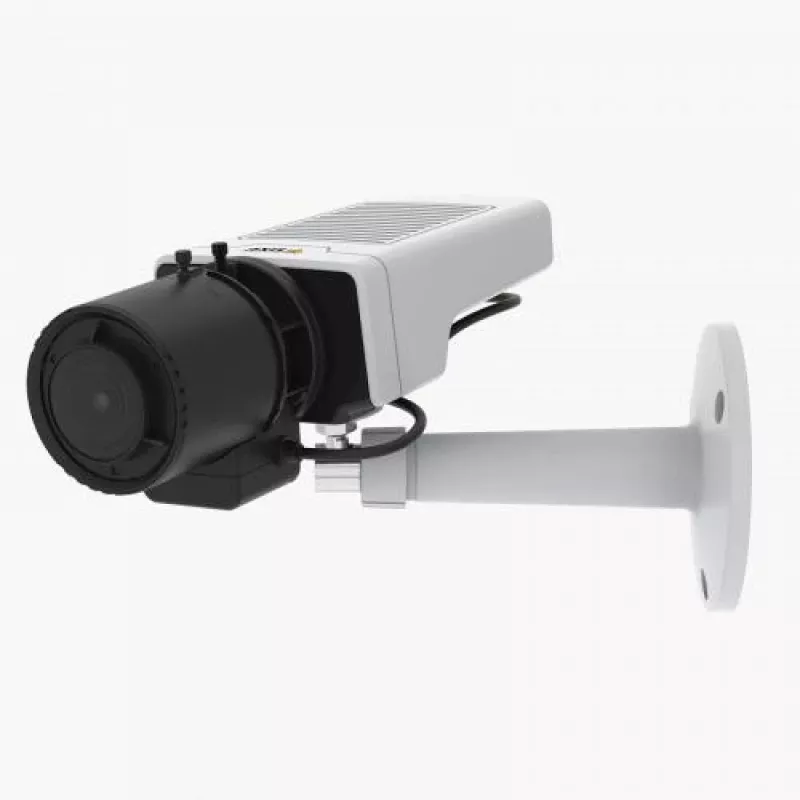

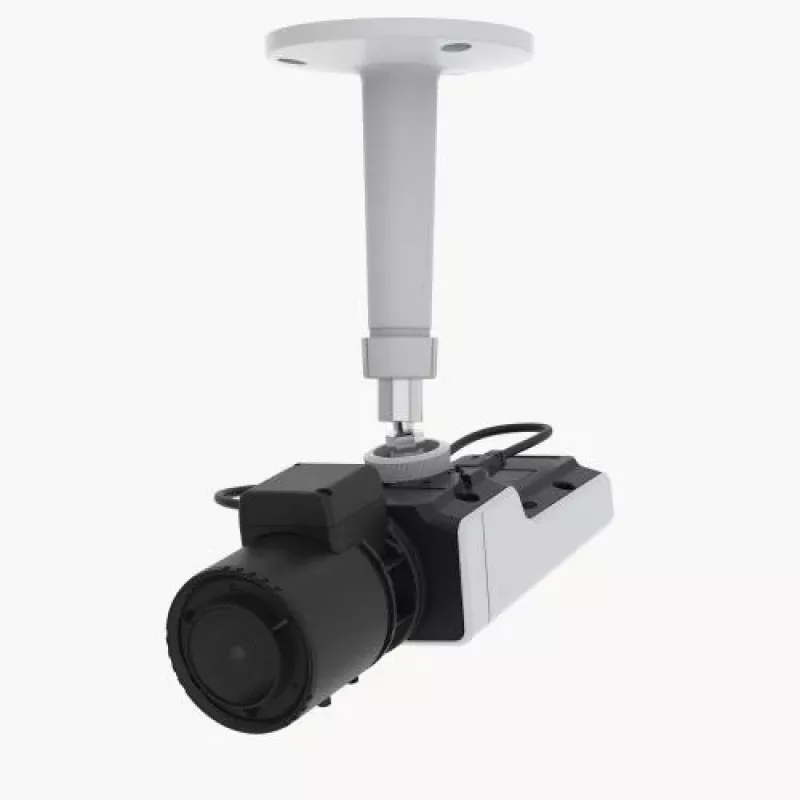

AXIS M1137 Mk II is a compact, affordable box camera designed for straightforward installation and operation. The camera supports Power over Ethernet (PoE) and redundant DC power input to maintain operation during power outages. It includes Axis Lightfinder and Axis Forensic WDR technologies for accurate color reproduction and enhanced detail in difficult lighting or near-dark conditions. The CS-mount provides flexibility for interchangeable lenses, and a built-in microphone enables recording with sound. AXIS Object Analytics is preinstalled for human and vehicle detection and classification, while Axis Zipstream with H.264/H.265 reduces bandwidth and storage requirements.

Advantages

Compact form factor and affordable price make the AXIS M1137 Mk II suitable for a wide range of surveillance installations. Support for PoE and redundant DC power increases reliability in environments with unstable power. Lightfinder and Forensic WDR improve visibility in low-light and high-contrast scenes. The CS-mount allows use of different lenses to adapt field of view, and the integrated microphone captures audio alongside video. Built-in AXIS Object Analytics enables on-camera detection and classification, and Zipstream with H.264/H.265 lowers network load and storage needs.

Key specifications

• Form factor: compact box camera
• Power: Power over Ethernet (PoE) and redundant DC power input
• Image technologies: Axis Lightfinder, Axis Forensic WDR
• Lens mount: CS-mount (exchangeable lenses)
• Audio: built-in microphone
• Analytics: AXIS Object Analytics preinstalled (human and vehicle detection/classification)
• Video compression: Axis Zipstream with H.264 and H.265

How to use

Install the camera using the provided mounting points and connect it to power via PoE or the DC input for redundancy. Attach an appropriate CS-mount lens for the desired field of view. Access the camera through Axis management software or a web browser to configure image settings, enable Axis Lightfinder and Forensic WDR as needed, and set up AXIS Object Analytics parameters for detection and classification. Configure video compression to use Axis Zipstream with H.264 or H.265 to optimize bandwidth and storage.
