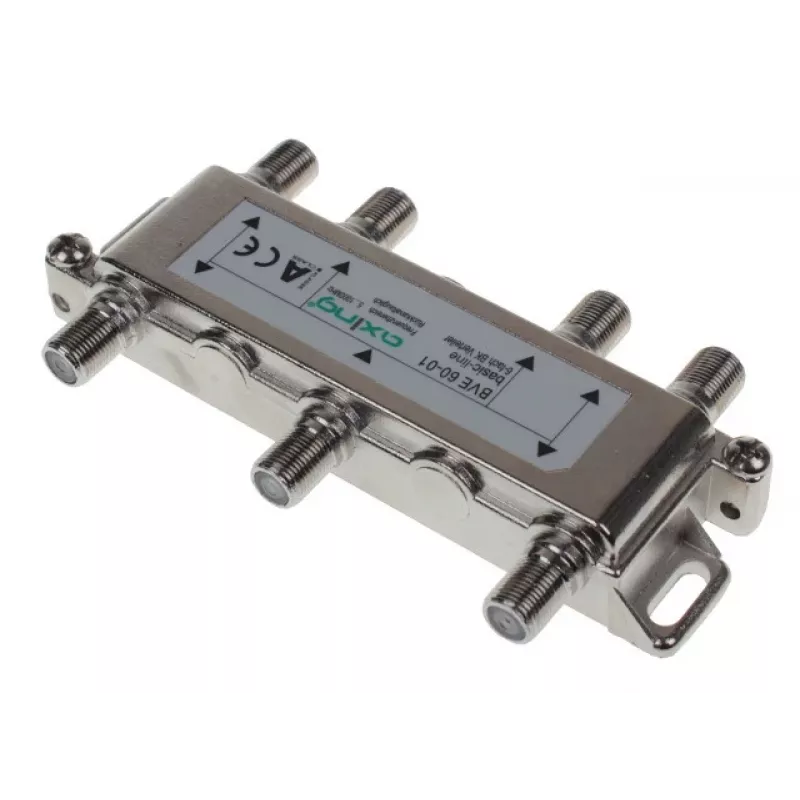

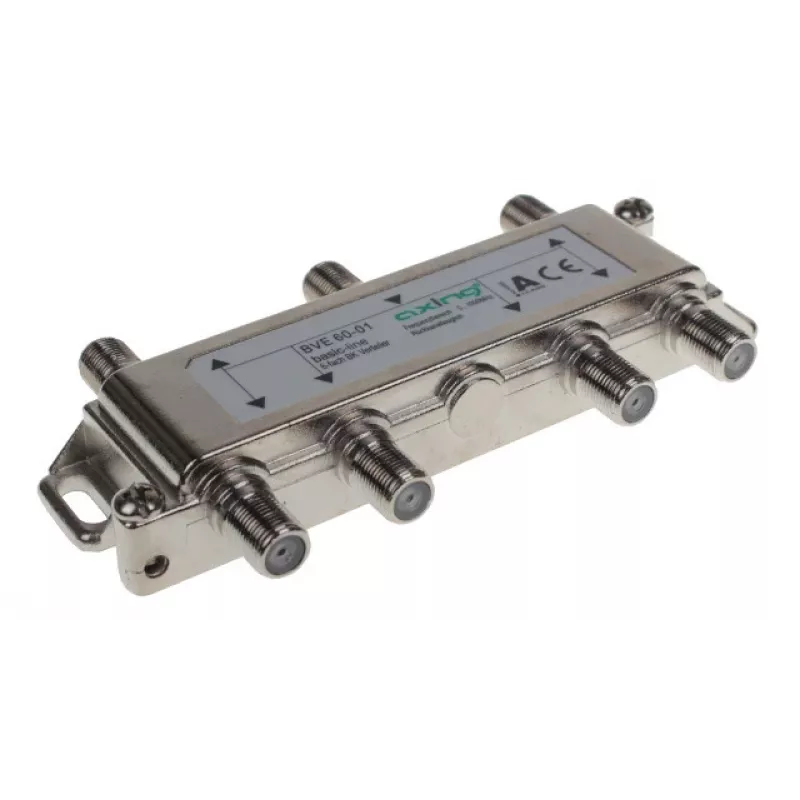

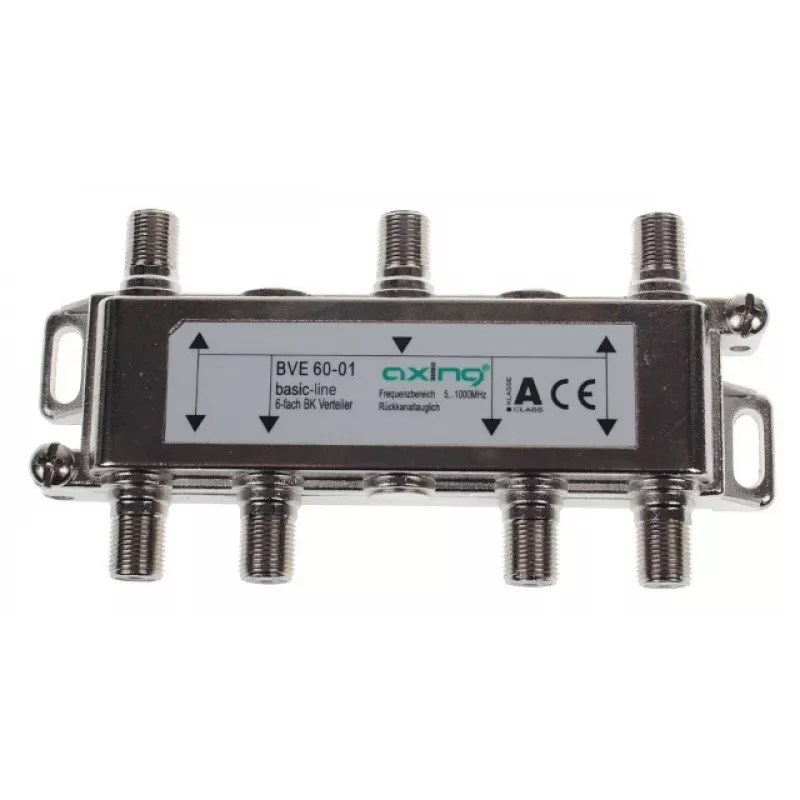

AXING AX BVE 6-01 distribuidor TV/SAT de 6 tomas, 75 Ohm, conector F, zinc fundido a presión, negro

The AXING AX BVE 6-01 is a high-performance 6-way TV/SAT splitter designed for indoor use. It distributes terrestrial and satellite signals from one input to six outputs with minimal loss. The splitter features F-connectors, 75 Ohm impedance, and DC pass on all outputs, making it ideal for feeding multiple receivers or TV sets. Its die-cast zinc housing ensures excellent shielding and durability.

Advantages

Reliable signal distribution for both terrestrial (5-862 MHz) and satellite (950-2400 MHz) frequencies. High isolation between outputs (>20 dB terrestrial, >18 dB satellite) prevents interference. DC pass capability allows powering of active antennas or LNBs through any output. Compact and wall-mountable design saves space.

Suitable for

• Distributing TV and satellite signals to multiple rooms
• Connecting multiple receivers or TV sets to a single antenna or LNB
• Indoor installations requiring a robust, shielded splitter

Key specifications

• Product Type: TV/SAT Splitter
• Number of Ways: 6-way
• Inputs: 1
• Outputs: 6
• Frequency Range Terrestrial: 5 - 862 MHz
• Frequency Range Satellite: 950 - 2400 MHz
• Insertion Loss (5-862 MHz): ~10.5 dB
• Insertion Loss (950-2400 MHz): ~12.5 dB
• Isolation (5-862 MHz): >20 dB
• Isolation (950-2400 MHz): >18 dB
• Return Loss (5-2400 MHz): >10 dB
• Impedance: 75 Ohm
• Connector Type: F-connector (Female)
• DC Pass: Yes, on all outputs
• Shielding Effectiveness: Class A
• Housing Material: Die-cast zinc
• Mounting Type: Wall mountable
• Usage Environment: Indoor
• Colour: Black

Recommendations

For optimal performance, use high-quality F-connectors and ensure proper termination of unused outputs. This splitter is ideal for modern satellite and terrestrial TV installations.
