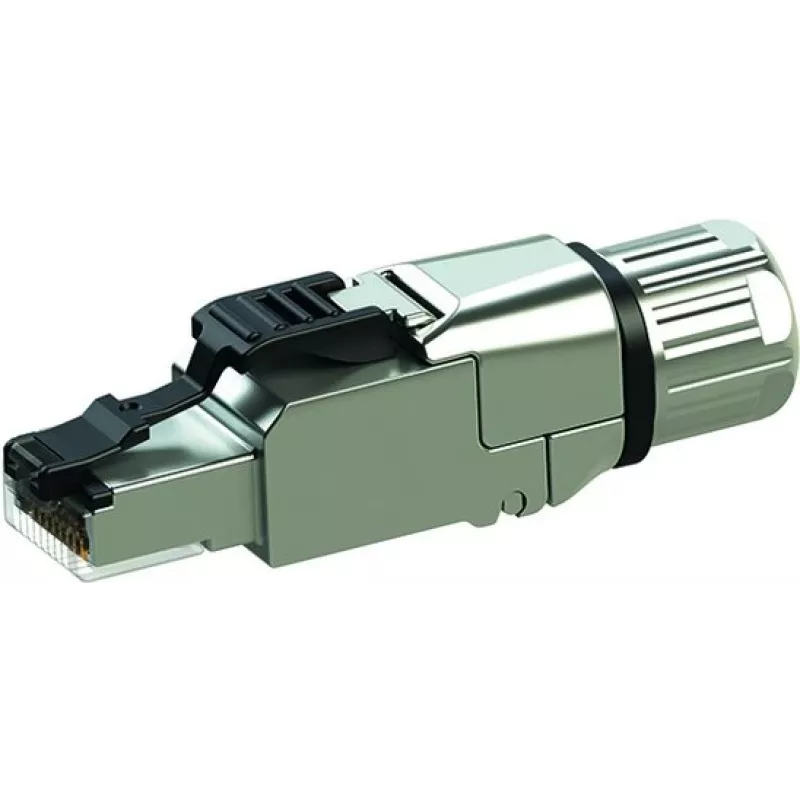

Telegärtner MFP8 IE conector RJ45 Cat.6A, montaje en campo, sin herramientas, apantallado, AWG24-26/27, T568B, J00026A5003

The Telegärtner MFP8 IE is a high-performance, field-installable RJ45 plug designed for industrial Ethernet and structured cabling. It supports Category 6A (Cat.6A) performance and is fully shielded (STP/FTP) for reliable data transmission in demanding environments. The tool-less IDC termination allows quick and easy installation without special tools, making it ideal for on-site repairs and custom cable assemblies.

Advantages

Tool-less installation saves time and reduces labor costs. The robust zinc die-cast housing with nickel plating ensures durability and excellent EMI protection. Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for power over Ethernet applications. Reusable up to 10 times, reducing waste and cost.

Suitable for

• Industrial Ethernet networks
• Data centers
• Office cabling
• Field termination and repair
• Custom patch cable manufacturing

Key specifications

• Connector Type: RJ45 Plug
• Performance Category: Category 6A (Cat.6A)
• Shielding: Shielded (STP/FTP)
• Wiring Standard: T568B
• Termination Method: Field-installable, Tool-less IDC
• Supported Wire Gauge (Solid): AWG 24/1 - AWG 26/1
• Supported Wire Gauge (Stranded): AWG 27/7
• Supported Cable Outer Diameter: 4.5 mm - 8.0 mm
• Housing Material: Zinc die-cast, nickel-plated
• Contact Plating: Gold over Phosphor Bronze
• Mating Cycles: ≥ 750
• Operating Temperature Range: -40 °C to +70 °C
• Power over Ethernet (PoE) Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Flammability Rating: UL94 V-0 (for plastic components)
• Standards Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51
• Reusability: Up to 10 times
• IP Rating: IP20 (when not mated)

Recommendations

For best performance, use with Cat.6A shielded cable and ensure proper grounding. The plug is compatible with solid and stranded conductors as specified. Always verify cable outer diameter before termination.
