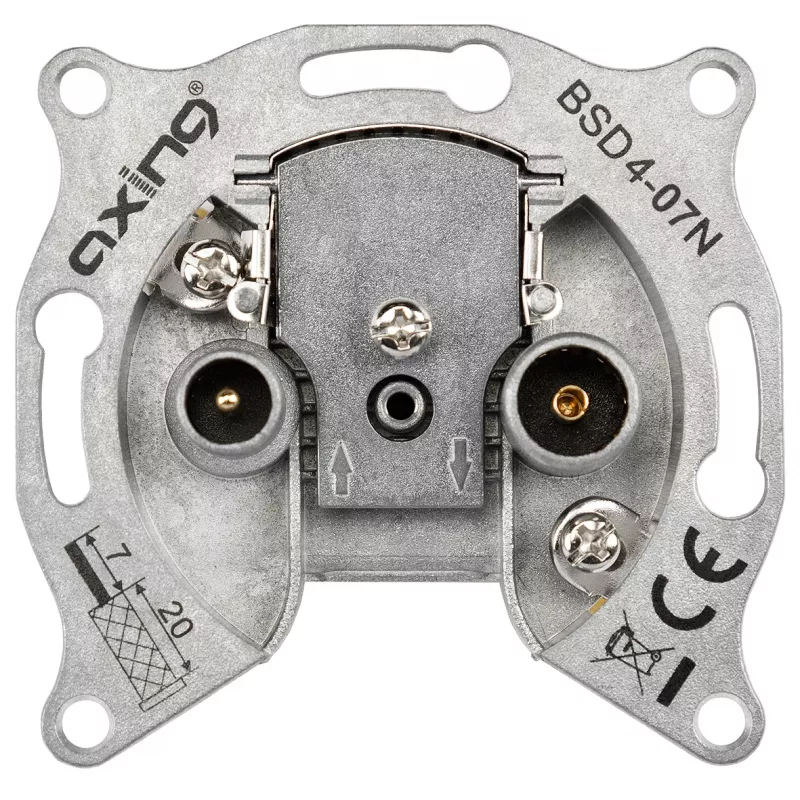

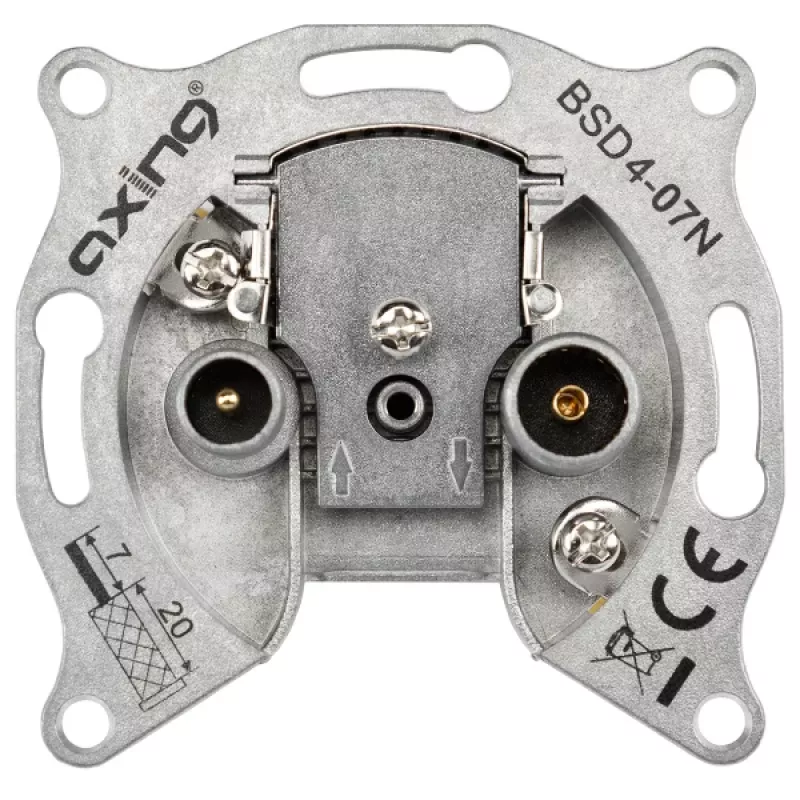

AXING BSD 4-07N toma de antena multimedia, toma de paso, 3 salidas: TV, radio, datos, empotrable, zamak BSD00407N

Install the AXING BSD 4-07N in a living room or home office to distribute TV, FM radio, and data signals from a single antenna cable. This through-socket connects three devices simultaneously while passing the signal to the next socket in the chain.

Key specifications

• Socket type: Through-socket (Durchgangsdose)
• Outputs: 3 (TV IEC male, Radio IEC female, Data F-connector)
• Frequency ranges: TV 107–862 MHz, Radio 87.5–108 MHz, Data 5–65 MHz return / 107–1000 MHz forward
• Tap loss: 7.0 dB (TV/Radio and Data)
• Through loss: 1.5 dB (5–862 MHz), 2.0 dB (862–1000 MHz)
• Return loss: >18 dB (5–1000 MHz)
• Shielding effectiveness: >100 dB (30–1000 MHz)
• Impedance: 75 Ohm
• DC pass: No
• Mounting type: Flush-mount (Unterputz)
• Housing material: Die-cast zinc

Why choose it

The die-cast zinc housing provides high shielding against interference, and the low through loss maintains signal strength for downstream sockets. The separate outputs prevent interference between TV, radio, and data services.

Ideal use cases

• Connecting a TV, FM tuner, and cable modem at one wall outlet
• Extending a home coaxial network with minimal signal degradation
• Retrofitting existing installations where a flush-mount through-socket is required

Good to know

The socket is designed for indoor use and fits standard flush-mount back boxes. It does not pass DC power, so it is not suitable for remote-powered amplifiers or satellite LNBs.
