AXING BSD 967-17X Toma de conexión multimedia de paso 17 dB 5-1800 MHz DOCSIS 3.1/4.0

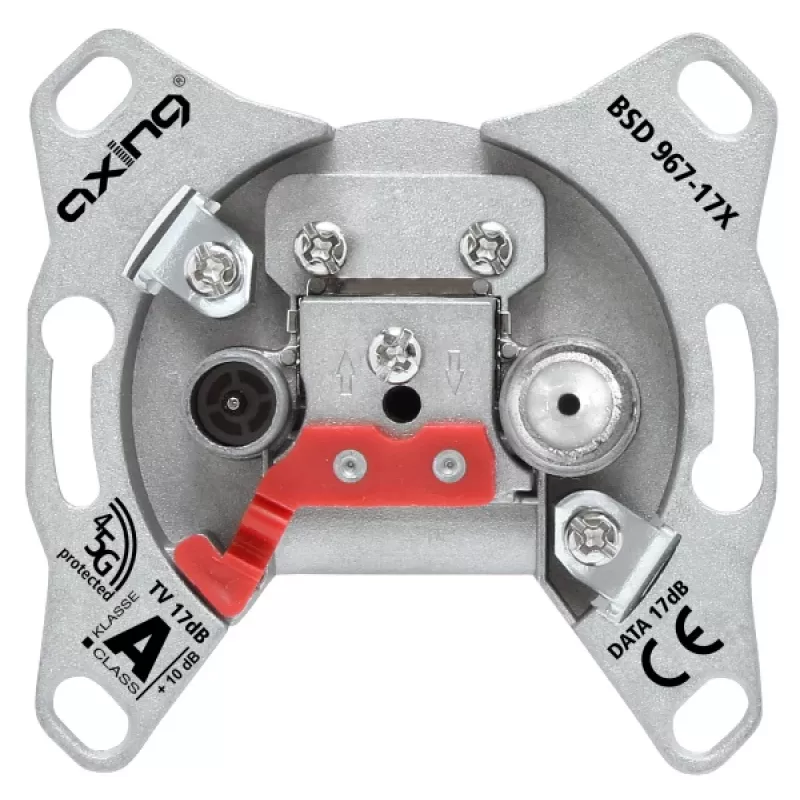

Signal distribution in modern coaxial networks faces a dual challenge: preserving signal strength for downstream devices while delivering a clean tap to the subscriber outlet. The AXING BSD 967-17X multimedia loop-through cable outlet solves this with a 17 dB tap loss and a full 5-1800 MHz forward path, supporting DOCSIS 3.1 and 4.0 broadband alongside TV and radio services.

Who is it for

Installers and network operators building or upgrading CATV, DVB-C, DVB-T, FM, and DOCSIS broadband networks in residential or commercial buildings. It fits flush-mount installations where a die-cast metal housing and Class A shielding are required.

Main features

• 17 dB outlet attenuation for balanced signal levels
• Forward path 5-1800 MHz, return path 5-204 MHz
• DOCSIS 3.1 and 4.0 ready for high-speed data
• Three output connectors: IEC male (TV), IEC female (radio), F-connector (data)
• DC passage via the data port for remote powering
• Class A shielding according to EN 50083-2
• Die-cast metal housing for durability and shielding

Specifications

• Product type: Multimedia loop-through cable outlet
• Tap loss: 17 dB
• Frequency range forward: 5 - 1800 MHz
• Frequency range return: 5 - 204 MHz
• Through loss: 1.5 - 2.5 dB
• Shielding class: Class A (EN 50083-2)
• Impedance: 75 Ohm
• Return loss: >10 dB
• Isolation TV-Radio: >20 dB
• DC passage: Yes, via F-connector
• Mounting type: Flush-mount
• Housing: Die-cast metal

Tips

For optimal performance, ensure the outlet is installed in a standard flush-mount box and the trunk cables are terminated with F-connectors. The DC passage feature allows powering remote equipment through the data port, simplifying network design.
