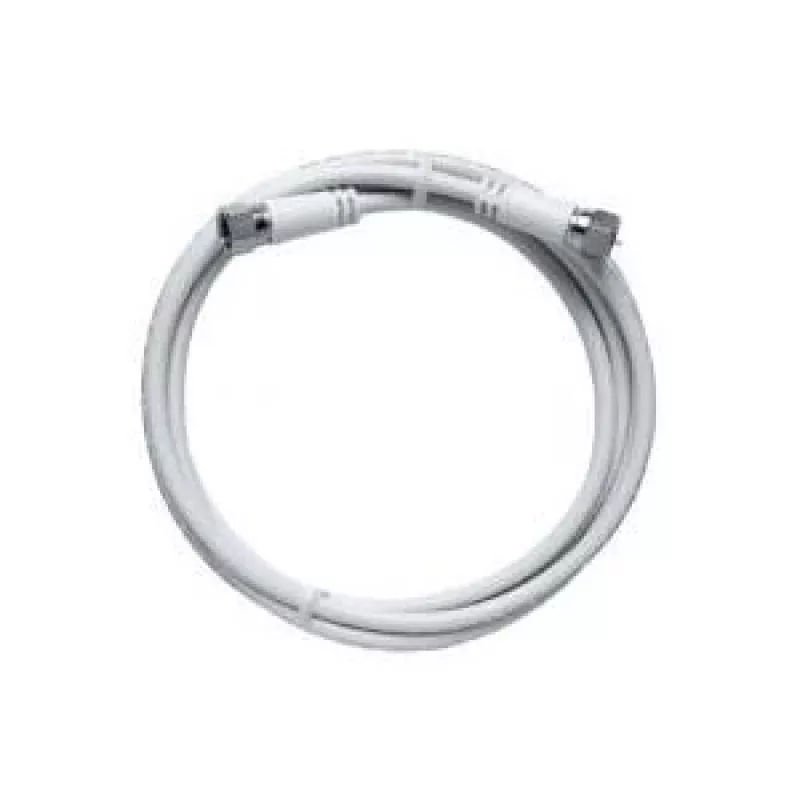

Axing MAK 200-80 cable de conexión SAT de 2 m blanco 85dB conector F a conector F

Poor signal quality and interference can ruin your satellite TV experience, but the Axing MAK 200-80 SAT connection cable solves that with its double shielding and high shielding effectiveness of 85 dB. This 2-meter coaxial cable is terminated with nickel-plated F-plugs on both ends, ensuring a reliable connection between your satellite receiver and wall outlet or LNB. Its white PVC jacket blends discreetly into any room, while the 75-ohm impedance and low attenuation maintain signal integrity across the 5–2400 MHz frequency range, covering DVB-S/S2 and DVB-C. Whether you're setting up a new system or replacing a worn cable, this Axing cable delivers clean, stable signals for crystal-clear TV.

Who is it for

This cable is ideal for satellite TV enthusiasts, professional installers, and anyone who demands reliable signal transmission for DVB-S/S2 or DVB-C systems. It's perfect for connecting satellite receivers to wall outlets, multiswitches, or LNBs in residential or commercial setups. If you're experiencing pixelation, signal dropouts, or interference, upgrading to this double-shielded cable can make a noticeable difference.

Main features

• Double shielded (foil + braid) for superior interference rejection
• High shielding effectiveness: 85 dB (Class B)
• Nickel-plated F-plugs for corrosion resistance and secure connections
• Low attenuation: < 20 dB/100m at 860 MHz, < 35 dB/100m at 2150 MHz
• Wide frequency range: 5–2400 MHz, compatible with DVB-S/S2 and DVB-C
• Flexible white PVC jacket for easy routing and a clean look
• Solid copper inner conductor for optimal signal transfer
• Foamed polyethylene dielectric maintains consistent impedance

Specifications

• Cable type: Coaxial SAT cable
• Connectors: F-plug (male) to F-plug (male)
• Length: 2 m
• Impedance: 75 Ohm
• Shielding effectiveness: 85 dB
• Frequency range: 5–2400 MHz
• Inner conductor: Copper
• Shielding: Double (foil + braid)
• Jacket material: PVC
• Connector plating: Nickel
• Dielectric: Foamed polyethylene (PE)
• Outer diameter: approx. 5.0 mm
• Attenuation @ 860 MHz: < 20 dB/100m
• Attenuation @ 2150 MHz: < 35 dB/100m
• Return loss: > 20 dB
• Colour: White

Tips

For best results, avoid sharp bends or kinks when routing the cable, as this can affect signal quality. Ensure the F-plugs are hand-tightened securely to prevent signal leakage. If you need a longer run, consider using a higher-grade cable or an amplifier to compensate for attenuation. This cable is suitable for indoor use; for outdoor installations, protect the connectors with weatherproof boots.
