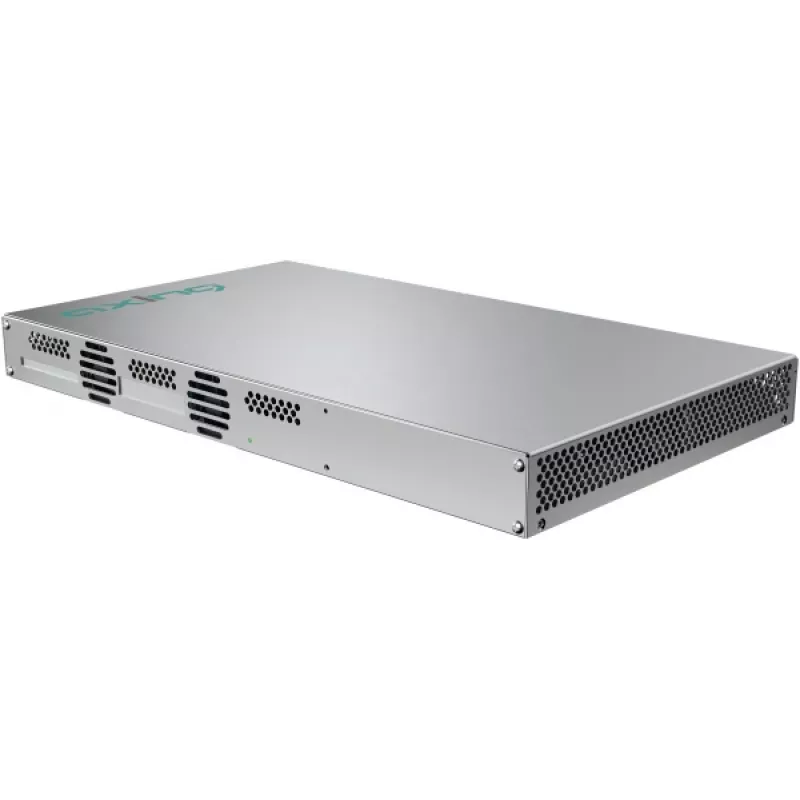

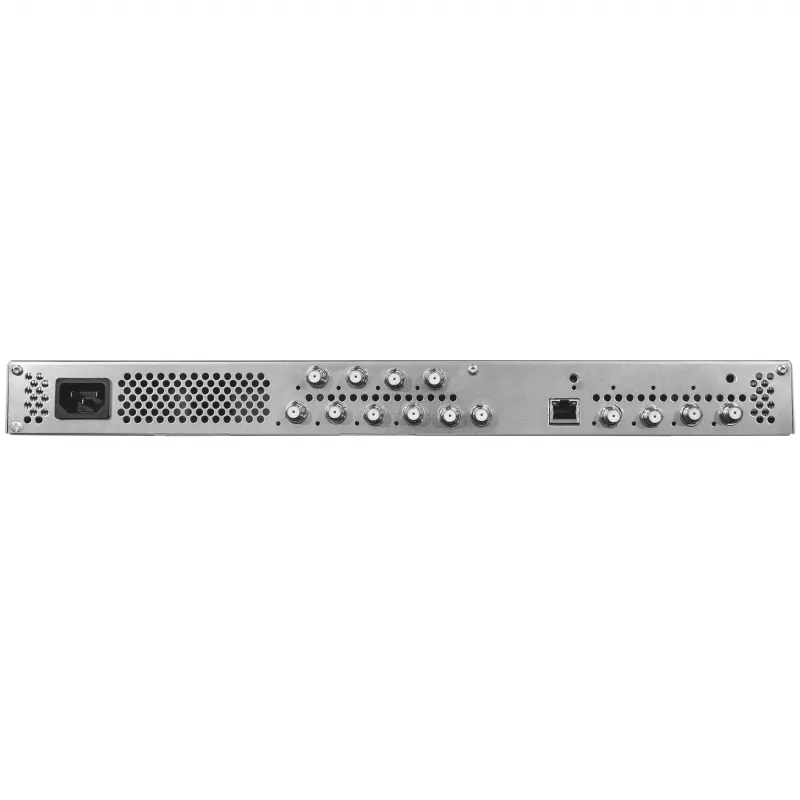

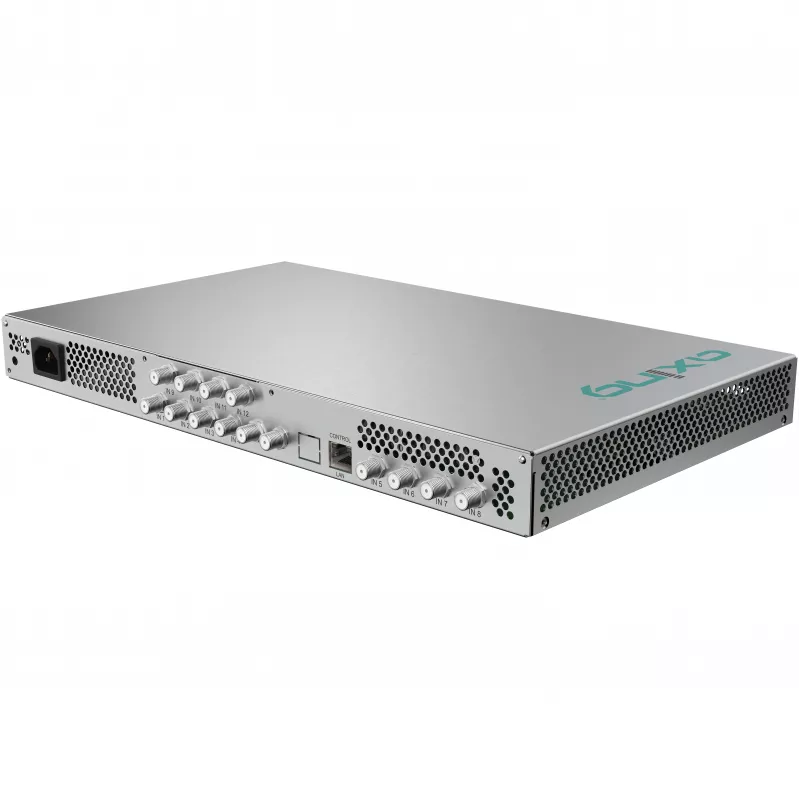

AXING MK 12-00N cabecera compacta 12x entrada DVB-S/S2/S2x, 12x salida DVB-C/T

The AXING MK 12-00N is a professional compact headend system designed for distributing satellite signals (DVB-S/S2/S2x) into terrestrial or cable networks. With 12 input tuners and 12 output modulators, it is ideal for hotels, hospitals, or multi-dwelling units requiring reliable multi-channel distribution.

Advantages

High-density 12-channel processing in a 1U 19-inch rack-mountable chassis saves space and simplifies cabling. The web-based management interface allows easy configuration and monitoring. Supports DiSEqC 1.0 and 22 kHz tone for LNB control, and features PID filtering, NIT/SDT generation, and LCN support for seamless integration.

Suitable for

• Hotels and hospitality
• Hospitals and healthcare facilities
• Multi-dwelling units (MDUs)
• Commercial satellite distribution systems

Key specifications

• Input: 12x DVB-S/S2/S2x (950-2150 MHz)
• Output: 12x DVB-C or 12x DVB-T (47-862 MHz)
• Modulation (DVB-C): 16/32/64/128/256 QAM
• Modulation (DVB-T): QPSK/16QAM/64QAM
• Output level: 80-90 dBµV adjustable
• MER: >40 dB
• LNB power: 13V/18V, 22 kHz, DiSEqC 1.0
• Management: Web GUI (Ethernet), USB
• Power: 100-240V AC, 50/60 Hz, max 60 W
• Operating temperature: 0°C to +45°C
• Rack mountable: 19 inch, 1U

Recommendations

For optimal performance, use with high-quality satellite LNBs and ensure proper ventilation in the rack. The MK 12-00N is a reliable choice for professional headend installations requiring flexibility and ease of management.
