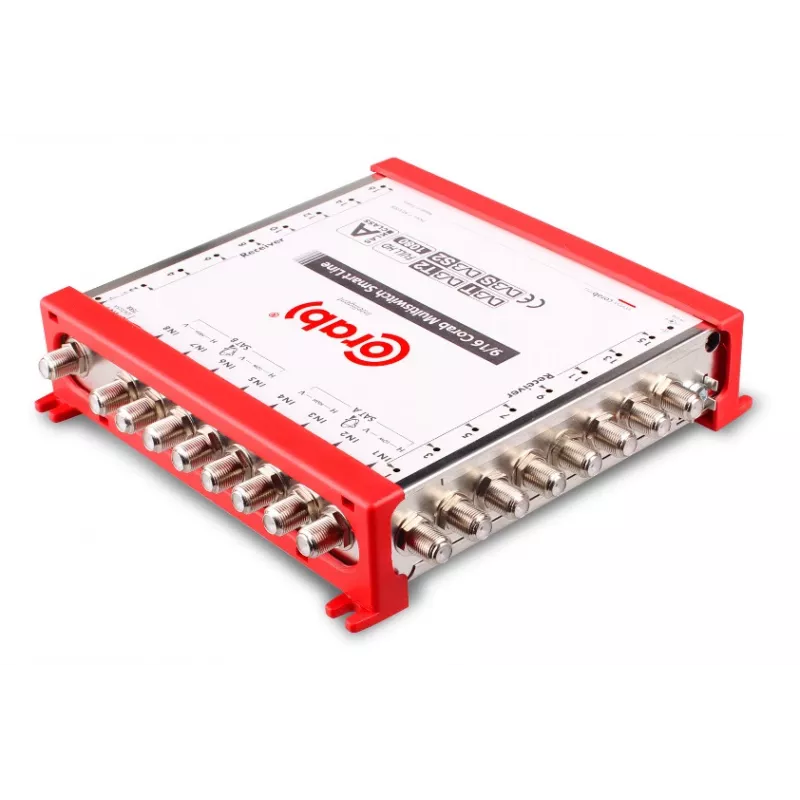

CORAB MULTISWITCH SMART LINE 9/16

The CORAB MULTISWITCH SMART LINE 9/16 is a high-performance satellite multiswitch designed for distributing satellite and terrestrial signals to up to 16 receivers. It features 8 satellite inputs (supporting H/V and L/H from two satellites or a Quattro LNB) and 1 terrestrial input, making it ideal for multi-room installations in residential or commercial buildings. With DiSEqC 2.0 protocol and internal power supply, it ensures reliable signal distribution with minimal loss.

Advantages

This multiswitch offers excellent signal isolation and low insertion loss, ensuring high-quality reception for all connected devices. Its compact design and internal power supply simplify installation, while the wide operating temperature range guarantees stable performance in various environments.

Suitable for

• Multi-room satellite TV distribution
• Residential and commercial buildings
• Installations requiring up to 16 receiver outputs
• Systems using Quattro LNB or two satellites

Key specifications

• Product Type: Satellite Multiswitch
• Satellite Inputs: 8 (H/L, V/L, H/H, V/H from 2 satellites or Quattro LNB)
• Terrestrial Inputs: 1
• Receiver Outputs: 16
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite Gain (Trunk): -2 dB (typical)
• Terrestrial Gain (Trunk): -2 dB (typical)
• Satellite Gain (Tap): 0 dB (typical)
• Terrestrial Gain (Tap): 0 dB (typical)
• Satellite Isolation (H/V): > 28 dB
• Satellite-Terrestrial Isolation: > 25 dB
• Max Output Level (SAT): 95 dBµV (EN 50083-3)
• Max Output Level (TER): 85 dBµV (EN 50083-5)
• LNB Power Supply: 18V, 500mA (from internal PSU)
• Switching Protocol: DiSEqC 2.0 (backward compatible with 1.0)
• Power Supply: Internal AC 100-240V, 50/60Hz
• Power Consumption: Max 15W
• Connectors: F-type
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with most satellite receivers and LNBs supporting DiSEqC 2.0.
