AXING SSD 5-14 toma de conexión empotrable para SAT + TV + radio, marrón

With a wide frequency range of 5–862 MHz for TV and 950–2200 MHz for SAT, the AXING SSD 5-14 delivers three dedicated outputs from a single flush-mounted socket.

Overview

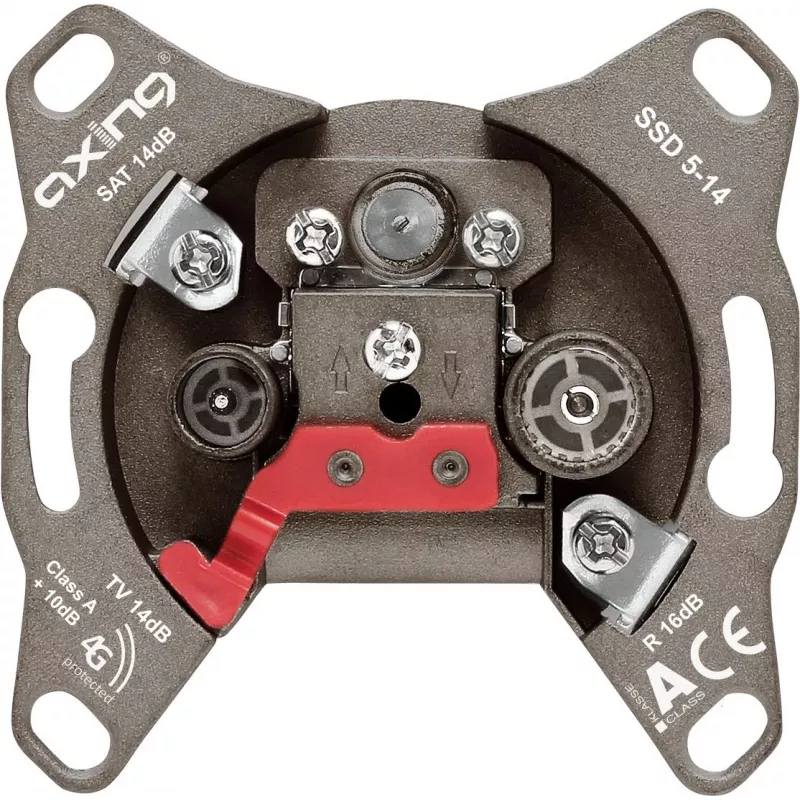

The AXING SSD 5-14 is a multimedia terminal socket designed for distributing satellite, television, and radio signals in residential installations. It provides three separate outputs: an IEC male connector for TV, an IEC female connector for radio, and an F-connector for satellite. The socket supports DC pass-through up to 500 mA on the SAT line, allowing remote powering of LNBs or amplifiers.

What stands out

• Three outputs: TV (IEC male), Radio (IEC female), SAT (F-connector)
• Frequency ranges: TV 5–862 MHz, Radio 87.5–108 MHz, SAT 950–2200 MHz
• DC pass-through on SAT output up to 500 mA
• Shielding class A according to EN 50083-2
• Flush-mounted design with metal chassis and brown plastic cover

Technical details

• Insertion loss: 5 dB (TV/Radio/SAT)
• Impedance: 75 Ohm
• Return loss: >10 dB
• Output decoupling: >20 dB between TV-Radio, TV-SAT, Radio-SAT
• Mounting type: Flush-mounted (Unterputz)
• Colour: Brown

Our verdict

The AXING SSD 5-14 is a reliable and well-shielded terminal socket for distributing SAT, TV, and radio signals in a single wall outlet. Its DC pass-through capability and high decoupling between outputs make it suitable for demanding installations.
