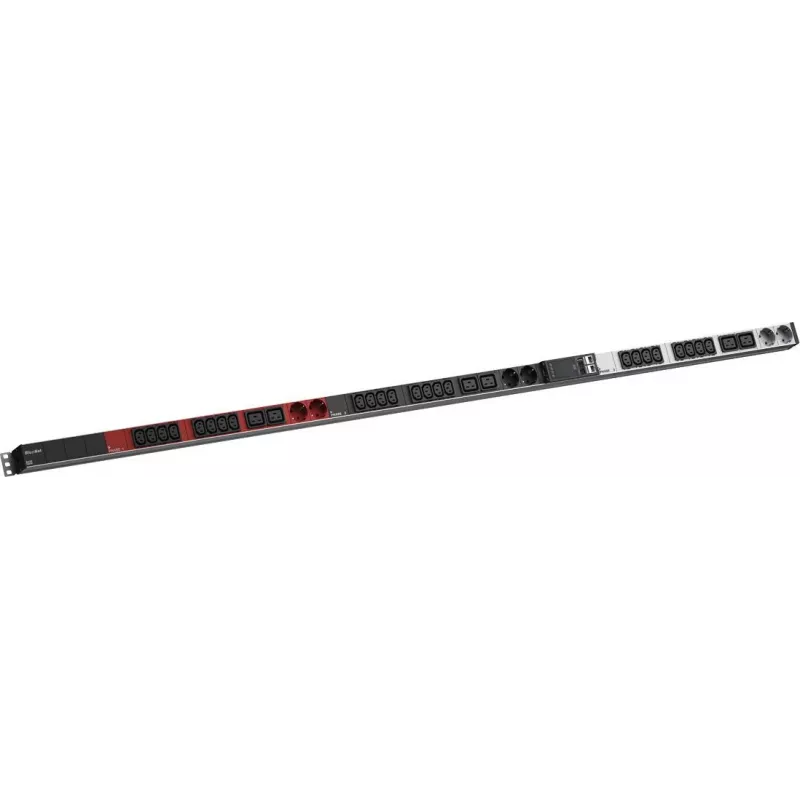

BACHMANN BN ESSENTIAL PDU de medición 36 tomas trifásica 16A CEE 5 polos cable 3m

This metered power distribution unit delivers precise electrical monitoring and reliable power delivery for high-density IT environments. With 36 outlets across IEC C13, IEC C19, and Schuko types, it supports a wide range of equipment while the integrated LCD tracks current, voltage, power, and energy in real time.

Advantages

The BN ESSENTIAL Metered PDU offers real-time monitoring of key electrical parameters, enabling proactive capacity planning and preventing overloads. Its vertical 0U design saves rack space, and the anodized aluminum housing ensures durability. Circuit breakers provide overload protection, and the 3-meter CEE 16A 5-pole input cable allows flexible placement.

Suitable for

• Data centers requiring precise power monitoring
• Server rooms with mixed equipment types
• Network closets needing high outlet density
• Industrial IT environments with 3-phase power

Key specifications

• PDU type: Metered
• Input: CEE 16A, 5-pole (3P+N+PE), 400V AC, 3-phase
• Outlets: 24x IEC C13, 6x IEC C19, 6x Schuko CEE 7/3
• Total outlets: 36
• Cable length: 3.0 m
• Mounting: Vertical (0U)
• Metering: Current, voltage, power, energy via integrated LCD
• Housing: Anodized aluminum
• Frequency: 50/60 Hz
• Overload protection: Yes (circuit breakers)
• Color: Black/Silver
• Protection rating: IP20
• Operating temperature: 0°C to 45°C
• Certifications: CE, RoHS

Recommendations

Ideal for IT professionals who need to monitor power usage at the rack level and ensure balanced loads across three phases. The combination of high outlet count and metering capabilities makes it a versatile choice for modern data centers.
