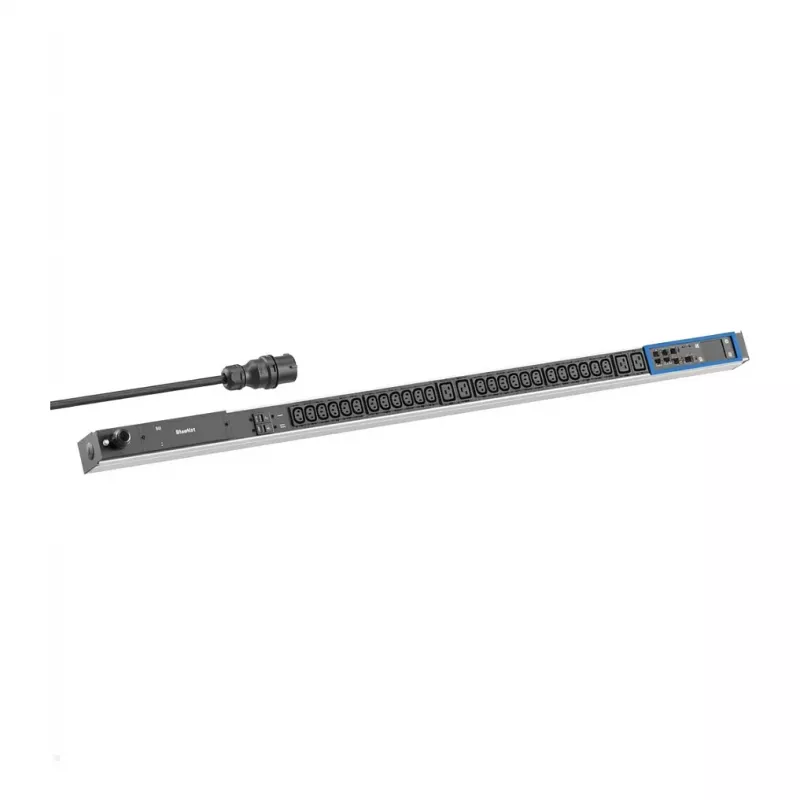

Bachmann BN PRO M 24xC13 4xC19 2xLS 3m CEE 32A/3p PDU

The Bachmann BN PRO M is a high-performance 3-phase Power Distribution Unit (PDU) designed for professional data center and server room environments. It provides reliable power distribution with 24 x IEC C13 and 4 x IEC C19 outlets, protected by two miniature circuit breakers (LS). With a 3.0-meter cable and CEE 32A/3p input plug, this 0U vertical PDU is ideal for high-density rack installations.

Advantages

Robust aluminum housing ensures durability and effective heat dissipation. The 3-phase 400V input delivers up to 22.1 kW of power, making it suitable for demanding equipment. Integrated overcurrent protection safeguards connected devices. Easy vertical mounting saves valuable rack space.

Suitable for

• Data centers and server rooms requiring high-power 3-phase distribution
• Rack-mounted IT equipment with C13 and C19 power connectors
• Professional AV and industrial applications

Key specifications

• Input: CEE 32A/3p, 400V AC, 32A, 50/60 Hz
• Output: 24x IEC C13 + 4x IEC C19, total 28 outlets
• Overcurrent protection: 2x miniature circuit breakers (LS)
• Cable length: 3.0 m
• Mounting: 0U vertical rack mount
• Housing: Aluminum, color black/silver
• Protection class: IP20
• Operating temperature: 0°C to 45°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure your rack is equipped with a compatible CEE 32A/3p power source. This PDU is ideal for high-power density setups and should be installed by a qualified electrician.
