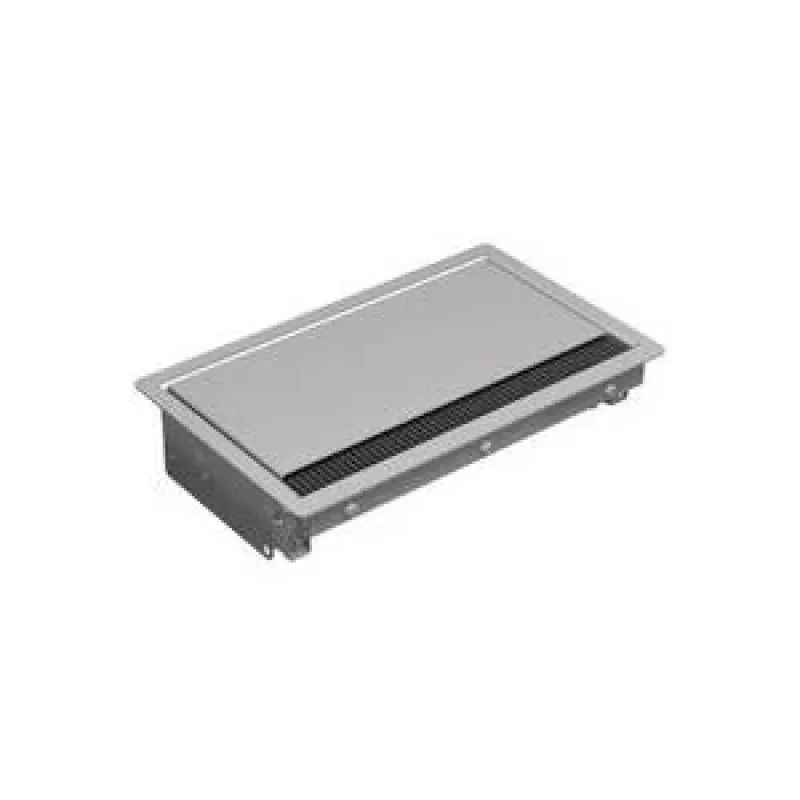

Bachmann Coni Gris Plata 338.0203

The Bachmann Coni Grey Silver (model 338.0203) is a built-in cable management unit designed for desks and tabletops. With a built-in depth of 56 mm and compatibility with desk or tabletop thicknesses from 10 mm upwards, it provides a low-profile solution for routing cables. The R5 corner radius allows for flush mounting so the unit sits neatly in the work surface. Brush strips are fitted by default and can be exchanged for colour strips without tools.

Advantages

Compact 56 mm depth enables installation in shallow tops while maintaining cable clearance. The R5 corner radius supports a flush finish for a neat appearance. Tool-free replacement of brush strips with colour strips increases flexibility and simplifies maintenance. Re-usable plastic rivets reduce waste and allow for repeated disassembly.

Suitable for

• Office desks and workstations
• Home office tables
• Conference tables and meeting rooms
• Work surfaces requiring flush-mounted cable access

Key specifications

• Model: Bachmann Coni 338.0203
• Built-in depth: 56 mm
• Compatible top thickness: from 10 mm
• Corner radius: R5 for flush mounting
• Finish / colour: Grey Silver
• EAN: 4016514017126

How to use

Cut an opening in the desk or tabletop matching the unit's dimensions and depth. Insert the built-in frame into the cutout until it sits flush with the surface, then secure it according to the desk manufacturer's or the product's installation instructions. To replace the brush strips with colour strips, remove the built-in frame from the top of the desk or table and unscrew the three re-usable plastic rivets; no additional tools are required. Reassemble in reverse order.

Recommendations

For a secure and neat installation, confirm the tabletop material and thickness (minimum 10 mm) before cutting. When replacing strips, keep the re-usable rivets to allow future maintenance or changes.
