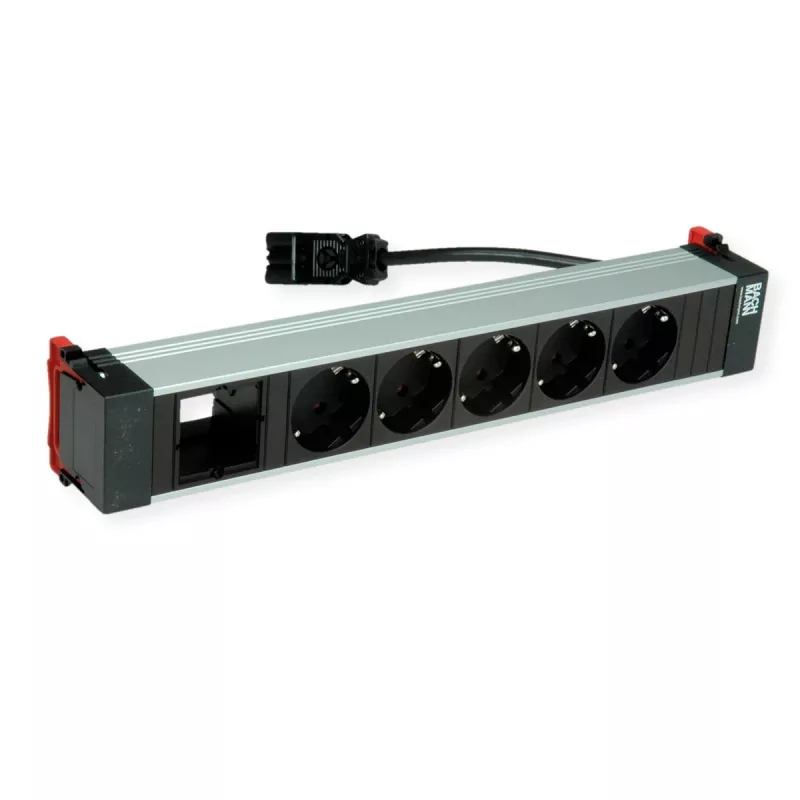

Bachmann POWER FRAME 5x toma Schuko 1x ranura modular 0,2m GST18i3 negro

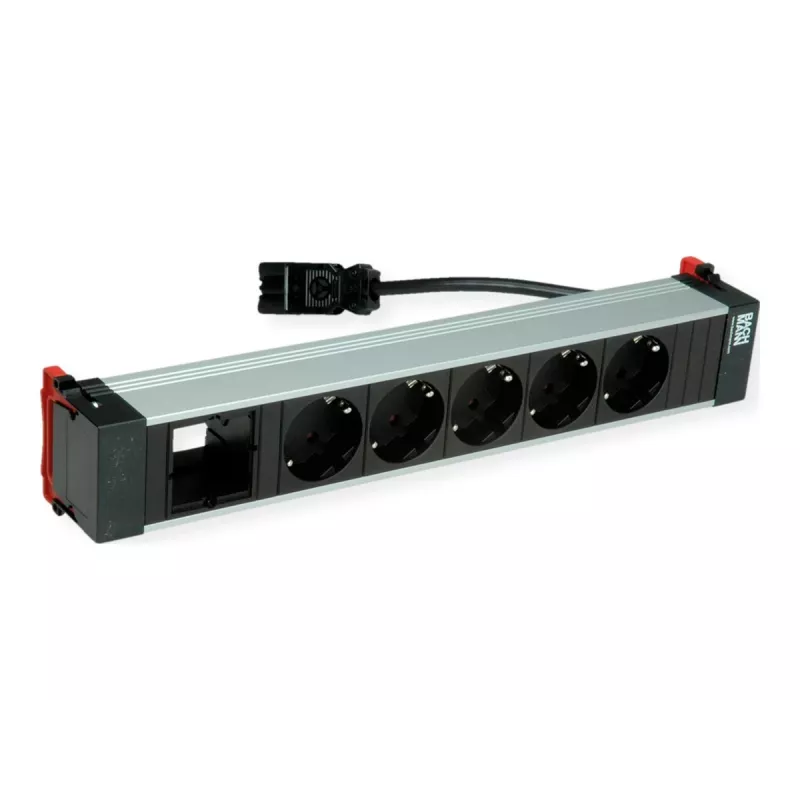

In modern offices and conference rooms, a clean desk is a productive desk. The Bachmann POWER FRAME 916.0881 mounts directly into a desk or table cutout, delivering five Schuko sockets and one custom module slot exactly where users need power. With a short 0.2 m connection cable ending in a Wieland GST18i3 plug, it integrates neatly into modular office furniture systems.

Key specifications

• 5 Schuko (CEE 7/3) power outlets, 45° rotated for easy access
• 1 custom module slot for Bachmann add-on modules
• Input: Wieland GST18i3 male connector, 0.2 m cable
• Rated 230 V / 16 A, max 3680 W
• Housing: high-quality black plastic, IP20
• Certifications: CE, VDE
• Internal wiring: H05VV-F 3G1.5mm²

Why choose it

This POWER FRAME combines robust power distribution with a modular design that adapts to your needs. The custom module slot accepts Bachmann modules for USB charging, data, or additional power, keeping your workspace flexible. The 45° socket orientation reduces cable stress and keeps plugs tidy. Built for daily office use, it meets strict safety standards and blends discreetly into black furniture.

Ideal use cases

• Fixed desk installations in open-plan offices
• Conference tables requiring integrated power
• Workstations with modular furniture systems
• Training rooms and meeting areas

Good to know

The GST18i3 connector is a widely used standard in office furniture power distribution, ensuring compatibility with many desk systems. The 0.2 m cable keeps installation compact, while the IP20 rating means it is intended for indoor use only.
