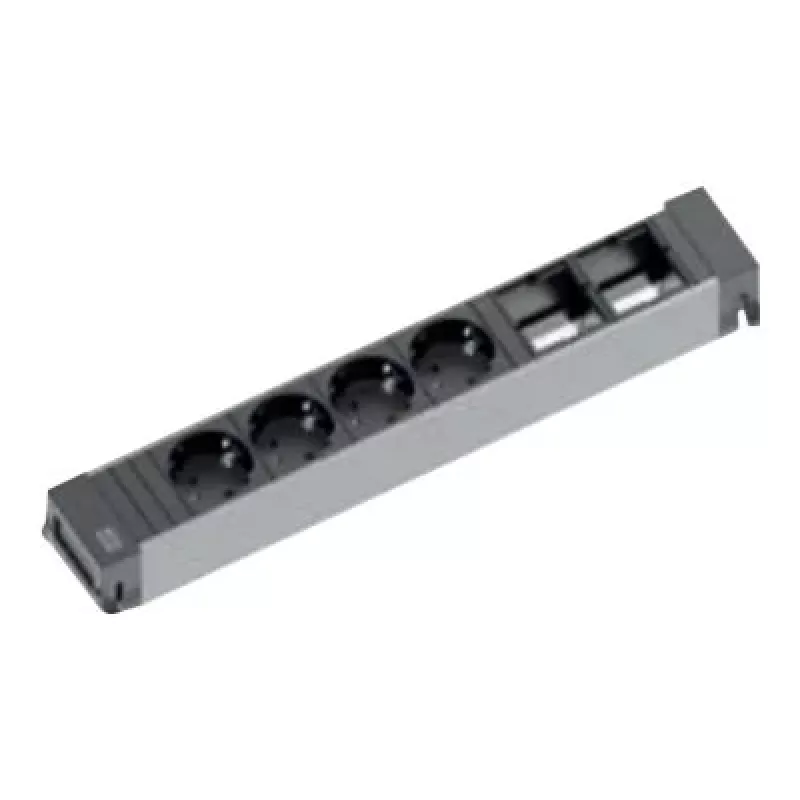

Bachmann Power Frame ALU unidad de alimentación de escritorio 6 ranuras 4 tomas Type E 2x RJ45 Cat.6 cable de 2m

The Bachmann Power Frame ALU 916.1110 is a premium desk power unit designed for modern office environments. Featuring a sleek anodized aluminum profile, it integrates seamlessly into workstations, conference rooms, and collaborative spaces. This unit combines 4 Type E power sockets (French/Belgian standard) with 2 RJ45 Cat.6 data couplers, offering a total of 6 module slots for flexible connectivity. The 2-meter power cable with a Type E/F Schuko plug ensures easy installation, while the rear cable entry maintains a tidy desk setup.

Advantages

Space-saving design with integrated mounting for desk cut-outs. High-quality aluminum housing with plastic end caps ensures durability and a professional appearance. The combination of power and data ports reduces cable clutter and enhances workstation efficiency. Rated for 16A and 250V, it supports up to 3680W, making it suitable for demanding office equipment.

Suitable for

• Office desks and workstations
• Conference rooms and meeting tables
• Home office setups
• Educational and training facilities

Key specifications

• Product Type: Desk Power Unit / Power Strip
• Number of Power Sockets: 4 (Type E)
• Number of Data Ports: 2 (RJ45 Cat.6)
• Total Module Slots: 6
• Housing Material: Anodized Aluminum
• End Caps Material: Plastic
• Power Cable Length: 2.0 m
• Power Plug: Type E/F (Schuko compatible)
• Rated Voltage: 250V AC
• Rated Current: 16 A
• Max. Power Output: 3680 W
• Mounting Method: Integrated into desk cut-out (mounting frame not included)
• Cable Entry Direction: Rear
• Protection Rating: IP20
• Certifications: CE

Recommendations

For optimal performance, ensure the desk cut-out matches the mounting frame specifications. This unit is ideal for new installations or upgrades where both power and data connectivity are required at the desk level.
