Unidad de distribución de energía LANBERG PDU-09E-0300-BK — 9 tomas tipo E, 16 A, 220–250 V, cable de 3 m, rack 1U, 19"

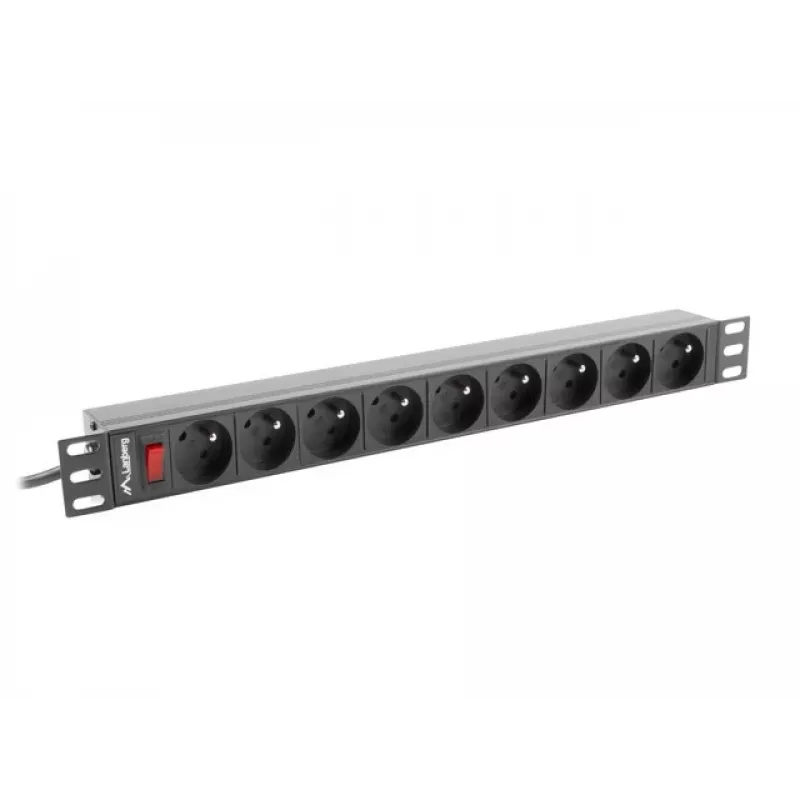

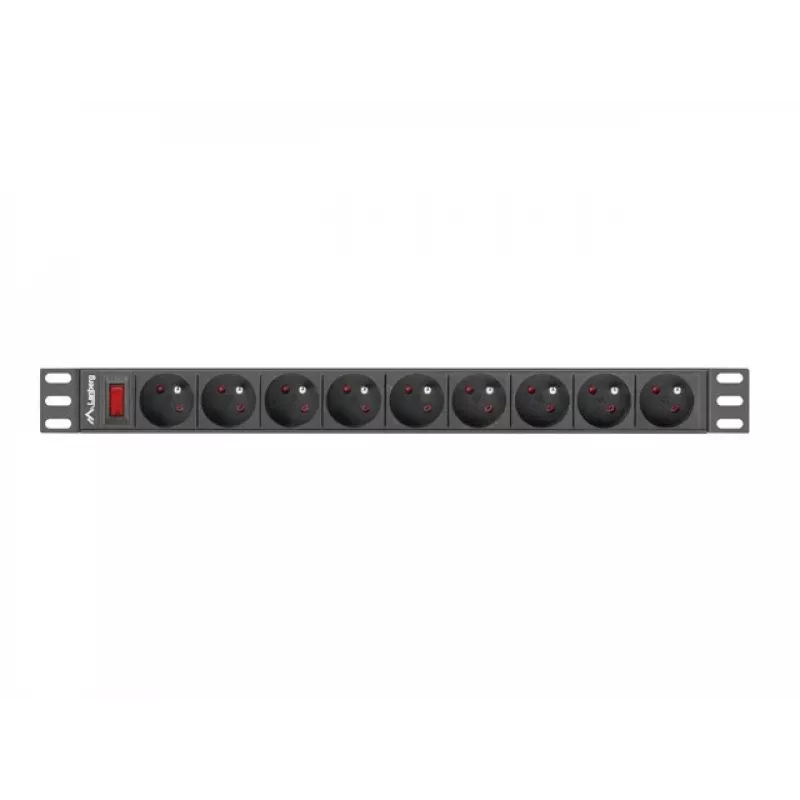

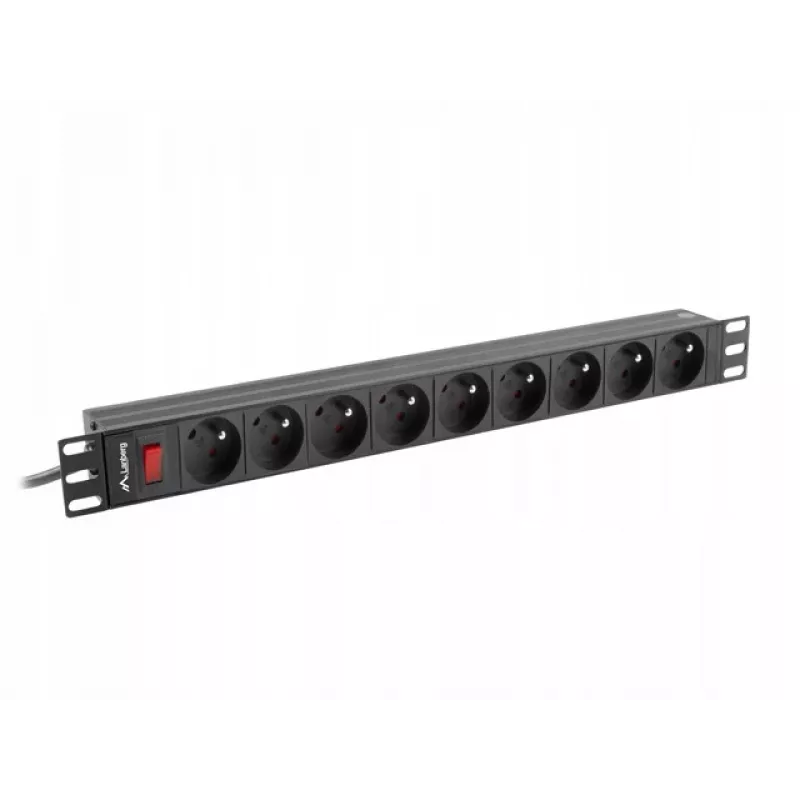

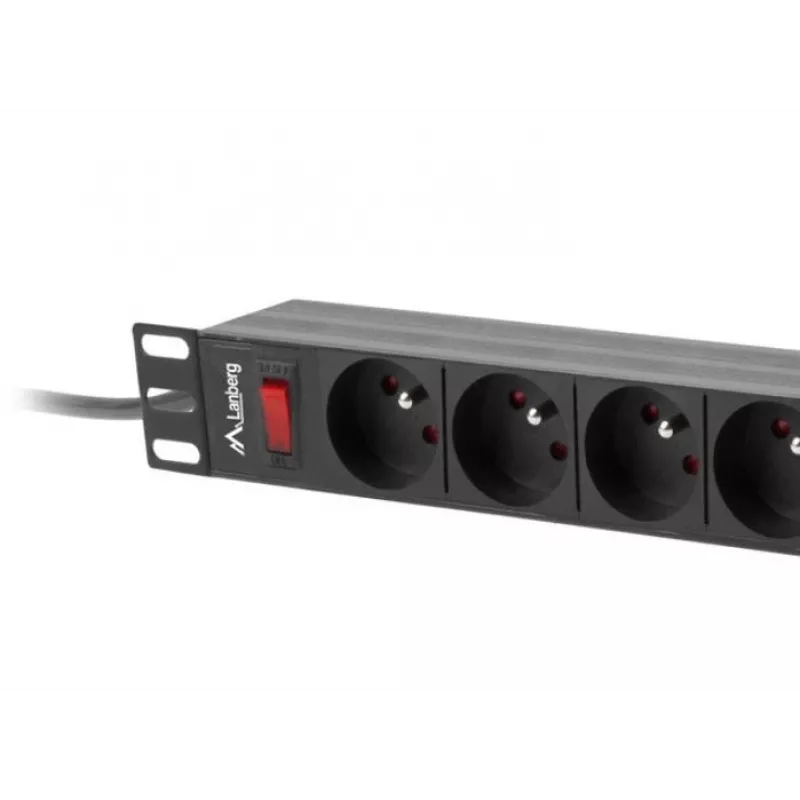

Lanberg PDU-09E-0300-BK is a 1U rack-mounted power distribution unit designed for horizontal installation on the front of 19" server cabinets. The unit offers nine Type E AC outlets, a 3 m power cable and LED indicators for activity. It supports a nominal input voltage of 220–250 V and a maximum current of 16 A, and its compact dimensions (430 mm × 45 mm × 44.5 mm) and 1 kg weight make it suitable for efficient power management in professional server environments.

Advantages

The PDU provides reliable and uninterrupted power distribution to connected devices and includes current circuit diaphragms for additional user protection. Its larger cable diameter improves safety and ensures stable operation under high load. Horizontal 1U construction and standard 19" front mounting enable easy integration into server racks while the LED indicators give simple visual feedback on activity.

Suitable for

• Powering servers and network equipment in 19" racks
• Data centres and server rooms
• Telecommunications cabinets and patch rooms
• IT closets and small rack installations

Key specifications

• AC outlets: 9 × Type E
• Nominal input voltage: 220–250 V
• Maximum current: 16 A

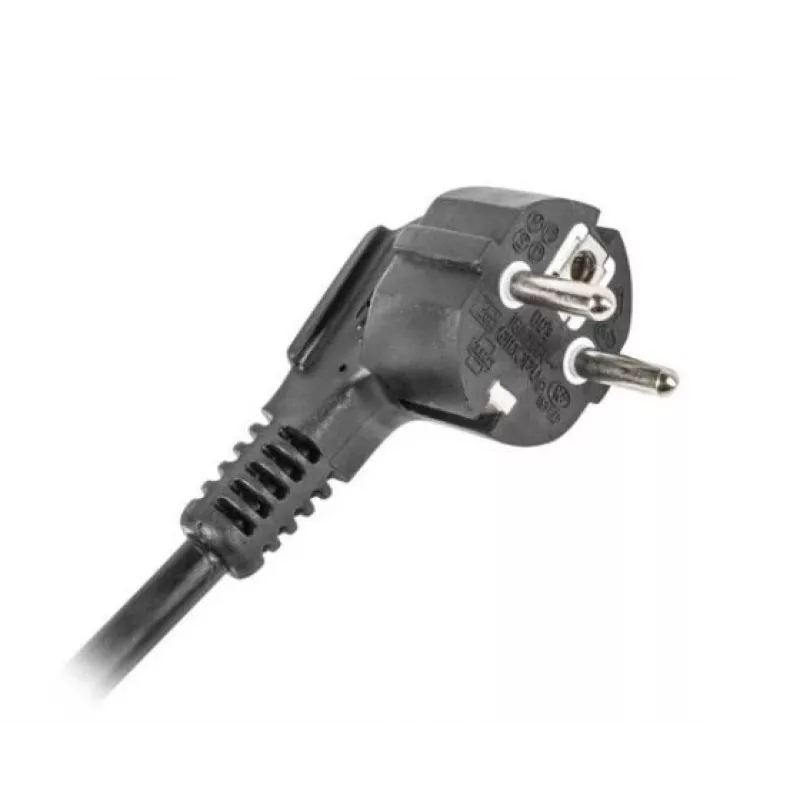

• Cable length: 3 m
• Mounting: Horizontal, front of 19" server cabinet, 1U
• Dimensions (W × D × H): 430 × 45 × 44.5 mm
• Weight: 1 kg
• Colour: Black

How to use

Install the PDU horizontally in the front 1U position of a 19" server cabinet and secure it according to the cabinet manufacturer's mounting procedure. Connect the PDU power cable to a compatible 220–250 V supply rated for at least 16 A. Plug equipment into the Type E outlets and monitor the LED indicators for activity. Do not exceed the maximum current rating and ensure the cabinet and input circuit are protected by appropriate overcurrent devices.

Recommendations

For safe and reliable operation, distribute connected load evenly across outlets, ensure the supply circuit can handle the combined current draw, and perform periodic inspections of cable condition and connector integrity. Avoid overloading the PDU beyond 16 A and follow local electrical regulations during installation.
