Bahía extraíble M.2 Hot-Swap FANTEC TR-1 2517 para SSD M.2 NVMe/SATA, una bahía, instalación sin herramientas

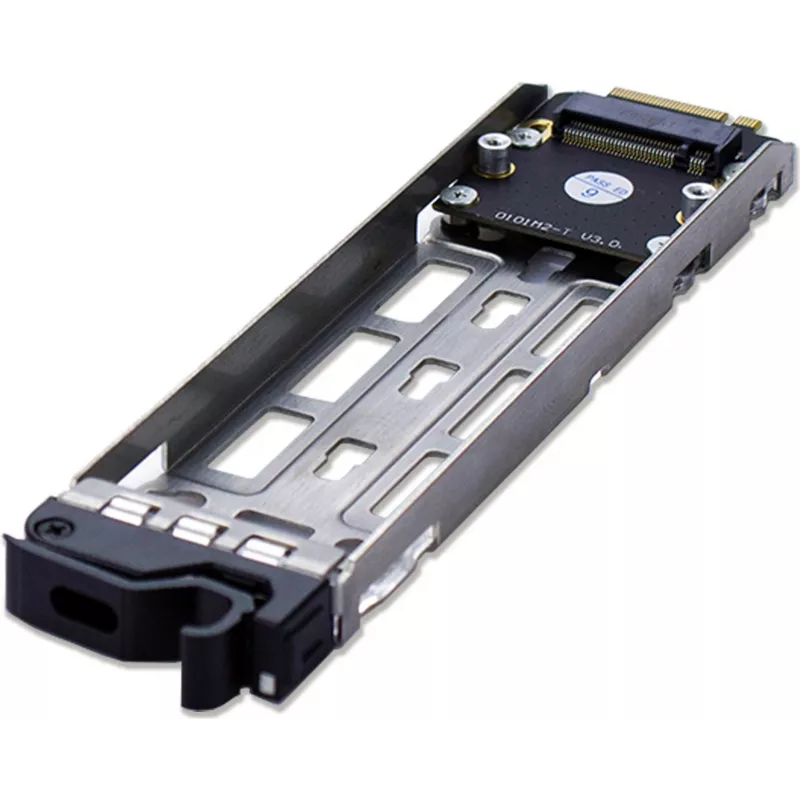

FANTEC TR-1 2517 is an M.2 hot-plugging drawer that accepts a single M.2 SSD in NVMe or SATA form factors, providing a front-accessible bay for tool-free insertion and removal. The unit is designed to allow hot-swap of M.2 drives without opening the host chassis, simplifying maintenance, enabling quick drive exchange and reducing system downtime in environments such as workstations, servers and backup stations.

Advantages

The drawer supports both M.2 NVMe and M.2 SATA SSDs in a single-bay design, enabling flexible use of different M.2 drive types. Tool-free insertion and removal provide fast front-panel access for quick swaps and maintenance. By permitting hot-plug operation, the device reduces service interruptions and allows replacement or addition of storage while the system remains operational. The compact single-bay format saves space and integrates into front-access drive slots for convenient drive management.

Suitable for

• Workstations requiring frequent M.2 drive changes or testing
• Servers and storage systems needing quick replacement of M.2 SSDs
• Backup and data transfer tasks that benefit from removable M.2 media
• IT maintenance environments where tool-free, front-access swapping is needed

Key specifications

• Form factor: single M.2 drive bay
• Supported interfaces: M.2 NVMe and M.2 SATA SSDs
• Insertion type: tool-free, front-access drawer
• Operation: hot-plug capable for drive replacement during operation

How to use

Insert an M.2 SSD into the drawer following the keyed M.2 connector orientation and secure it according to the drawer's retention method. Slide the drawer into the front bay until it seats and locks in place. For hot-plug operation, ensure the host system supports hot-swapping of M.2 devices and follow the operating system's safe removal or device management procedures when removing a drive. To remove, unlock and pull the drawer out, then extract the drive without tools.

Recommendations

Use the FANTEC TR-1 2517 in systems with supported hot-plug functionality and ensure that the host firmware and operating system support M.2 hot-swapping. Handle M.2 SSDs using antistatic precautions and avoid forcing the connector; verify drive compatibility (NVMe or SATA keying) before insertion. For critical data, perform regular backups and follow safe removal procedures to prevent data loss during swaps.
