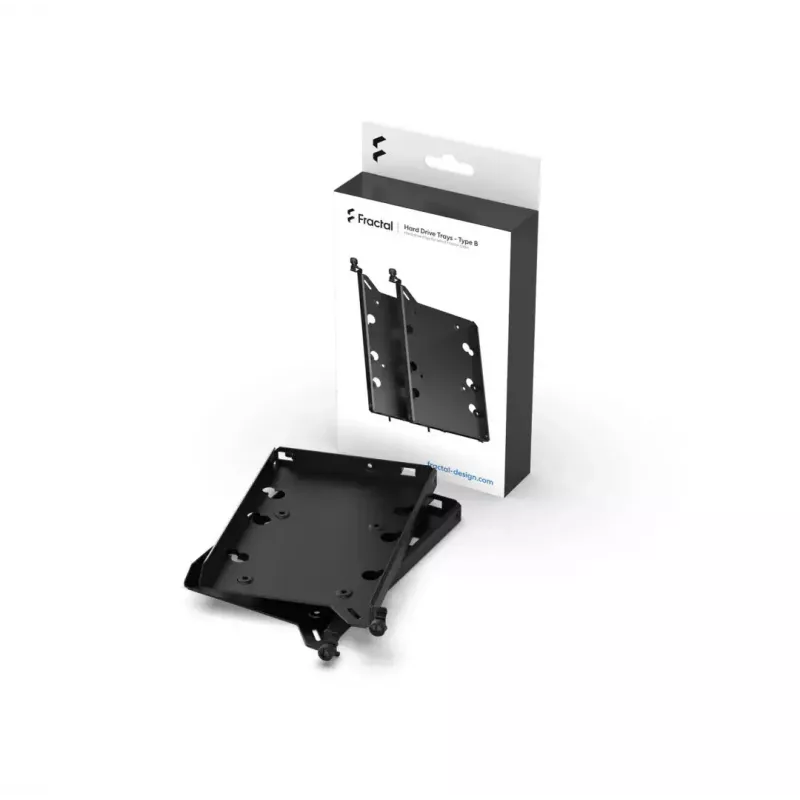

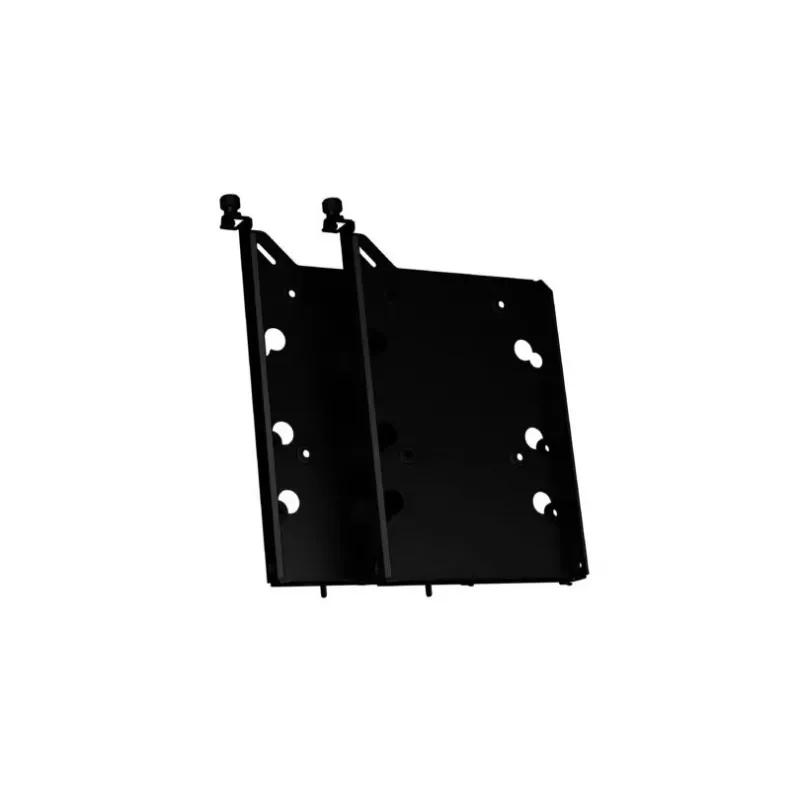

Soporte de montaje para HDD Fractal Design FD-A-TRAY-001 acero universal

Increase the storage capacity of your Fractal case with this drive bracket upgrade kit. The kit provides the components required to mount up to two additional 3.5"/2.5" drives in any Fractal case that has Type‑B compatible HDD mounting positions.

Advantages

The upgrade kit adds the option to install two more drives without modifying the case. It is compatible with both 3.5" and 2.5" drive formats and includes all necessary hardware for straightforward installation. The bracket solution preserves existing drive bays and maintains a tidy internal layout.

Key specifications

• Compatibility: Fractal cases with Type‑B HDD mounting positions
• Supports: up to two additional drives
• Drive sizes supported: 3.5" and 2.5"

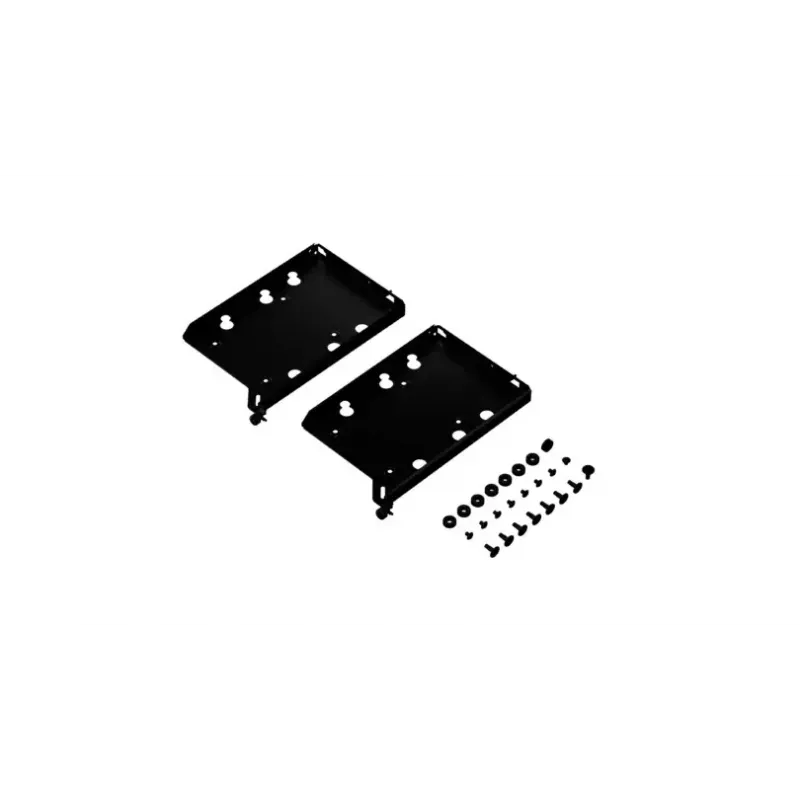

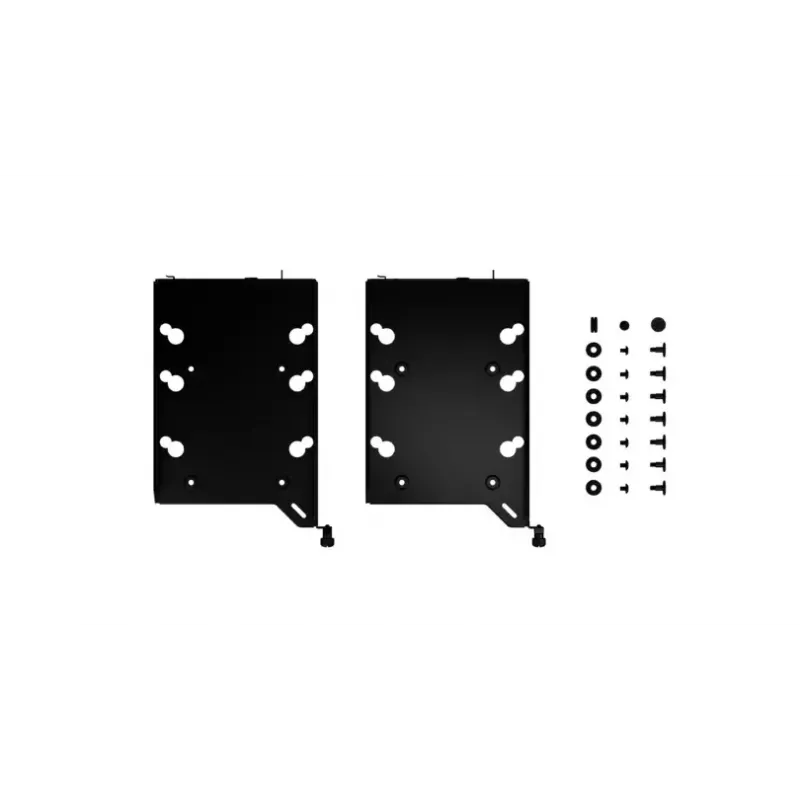

• Includes: drive bracket(s) and mounting hardware

How to use

Turn off and unplug the computer before beginning. Remove the side panel of the Fractal case to access the HDD mounting area, locate an available Type‑B compatible position, and secure the bracket using the supplied screws. Mount the drives onto the bracket in the correct orientation and reconnect power and data cables. Replace the side panel and power on the system, then verify that the new drives are detected in the operating system.

Recommendations

Ensure you have Type‑B compatible HDD mounting positions in your Fractal case before purchasing. Use appropriate screws and do not overtighten to avoid damaging drive housings. Back up important data before adding or removing drives.
