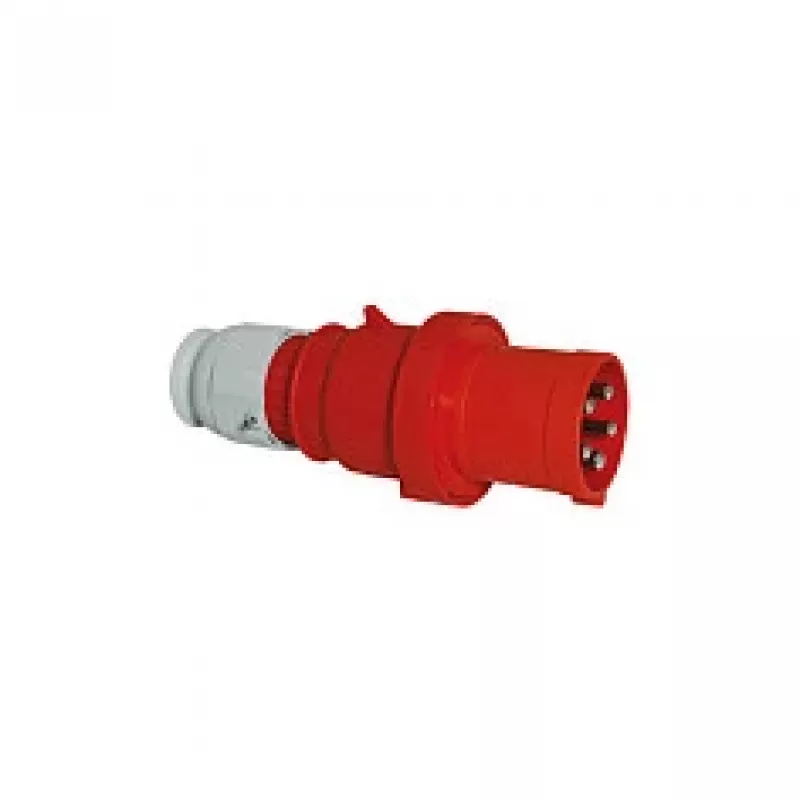

BALS CEE Conector industrial macho 5 polos 63A 400V IP44 6h Multi-Grip recto rojo 2155

On a busy construction site, electricians need a reliable power connection for heavy equipment like concrete mixers and welding machines. The BALS CEE Industrial Plug 5-Pole 63A 400V delivers that dependable performance. Built to IEC 60309 standards, this straight plug features a 6h earth contact position and IP44 splash protection, making it suitable for outdoor and damp environments. Its Multi-Grip design ensures a secure and comfortable grip even with gloves, while the robust polyamide housing withstands harsh conditions. With screw terminals and a cable gland, installation is straightforward and secure. Whether for industrial machinery, commercial kitchens, or temporary power distribution, this plug provides safe and efficient power transfer.

Key specifications

• Connector type: CEE industrial plug (straight)
• Number of poles: 5 (3P+N+PE)
• Rated current: 63 A
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• Earth contact position: 6h
• Ingress protection: IP44 (splash-proof)
• Connection technology: Screw terminals
• Cable entry: Gland
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Colour: Red
• Special feature: Multi-Grip for easy handling
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature: -25°C to +40°C

Why choose it

The BALS 2155 plug is engineered for demanding applications. Its IP44 rating protects against splashing water from any direction, ensuring safety in outdoor or washdown areas. The Multi-Grip feature reduces strain during connection and disconnection, improving efficiency. High-quality brass contacts and a tough polyamide body guarantee long service life even in rough industrial settings. Compliance with international standards gives you confidence in its performance and safety.

Ideal use cases

• Construction sites for powering heavy machinery
• Industrial facilities with 400V three-phase equipment
• Commercial kitchens and food processing areas
• Temporary power distribution at events or workshops
• Agricultural operations with outdoor power needs

Good to know

This plug is designed for use with compatible CEE sockets and connectors with a 6h earth contact position. Always ensure the cable gland is properly tightened to maintain the IP44 rating. The operating temperature range allows use in most climates, but avoid exposure to direct sunlight for prolonged periods to preserve the housing integrity.
