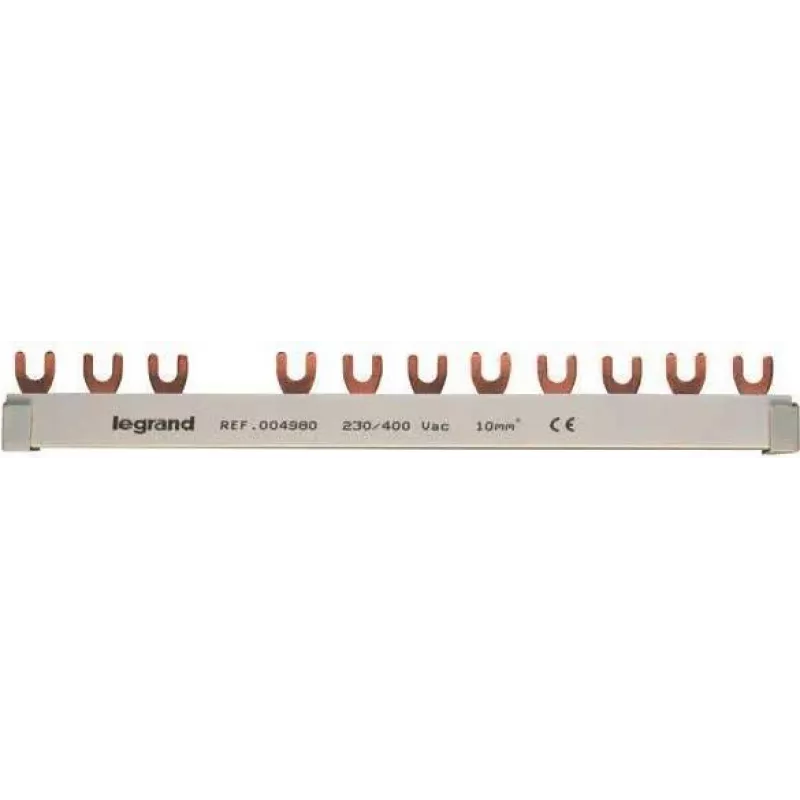

Barra colectora Legrand 04980, barra colectora de cobre/metal para distribución eléctrica, 10 mm

Legrand 04980 copper/metal busbar is a 10 mm conductor designed for power distribution and interconnection inside switchboards and electrical panels. Manufactured to industry standards, this busbar provides a compact and robust conductive path for multiple circuit connections in industrial and commercial installations. The product is intended for use where a reliable, low-resistance connection between protective devices, breakers and distribution components is required.

Advantages

The copper/metal construction ensures stable electrical conductivity and good thermal performance under typical load conditions. Its 10 mm cross-section balances current-carrying capability and ease of installation in confined panel spaces. The busbar is compatible with common mounting and connection methods used in distribution boards, offering mechanical strength and consistent electrical contact for multiple terminations.

Suitable for

Key specifications

How to use

Install the busbar inside the electrical panel according to applicable wiring regulations and the panel manufacturer’s instructions. Secure the bar with appropriate insulated supports or clamps to maintain clearance and prevent movement. Make electrical connections using correctly rated terminals or lugs and tighten to the torque values recommended for the termination hardware. Ensure proper insulation and, where required, apply protective covers to exposed conductive parts to maintain safety during operation and maintenance.

Recommendations

Verify current-carrying requirements, appropriate clearance, and short-circuit withstand for the installation; select termination hardware and protective devices that match the busbar’s size and the overall electrical design.
