Barra colectora Rittal SV 9601.000, cobre, set de 3 uds., longitud 500 mm

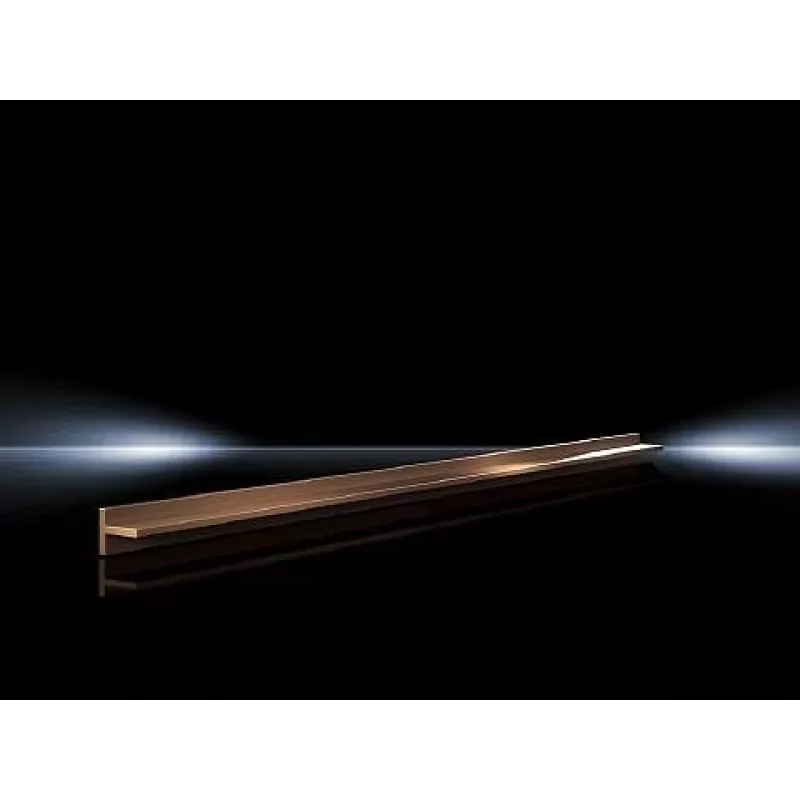

Rittal SV 9601.000 is a set of three copper bus bars, each 500 mm in length, designed for electrical distribution and busbar installations. These rigid copper bars provide reliable conductive connections for switchgear, enclosures and control panels where consistent mechanical dimensions and good electrical conductivity are required. The set of three bars allows for multi-phase wiring or parallel conductors in compact installations.

Advantages

The copper construction ensures high electrical conductivity and stable current carrying capability with good corrosion resistance in typical indoor electrical environments. Pre-cut lengths and consistent cross-section simplify mounting and alignment in standard busbar supports, reducing installation time. Using a matched set of three bars helps maintain uniform phase spacing and simplifies assembly of three-phase systems.

Suitable for

Key specifications

How to use

Install the copper bus bars in accordance with the enclosure and switchgear manufacturer’s instructions. Ensure power is isolated before fitting or modifying busbar connections. Align the bars with the provided mounting points or busbar supports, secure with appropriate hardware, and tighten connections to the torque values specified by the equipment documentation. Verify clearances, insulation, and protective barriers after installation and before re-energising the system.

Recommendations

Use these bus bars in dry, indoor electrical installations and follow local electrical codes. Select appropriate hardware and insulation to match current rating and mechanical requirements, and perform regular inspections for secure connections and signs of corrosion or overheating.
