Rittal RiLineX módulo base RX L 200 mm 1 6 – módulo base del sistema de barras colectoras, 200 mm

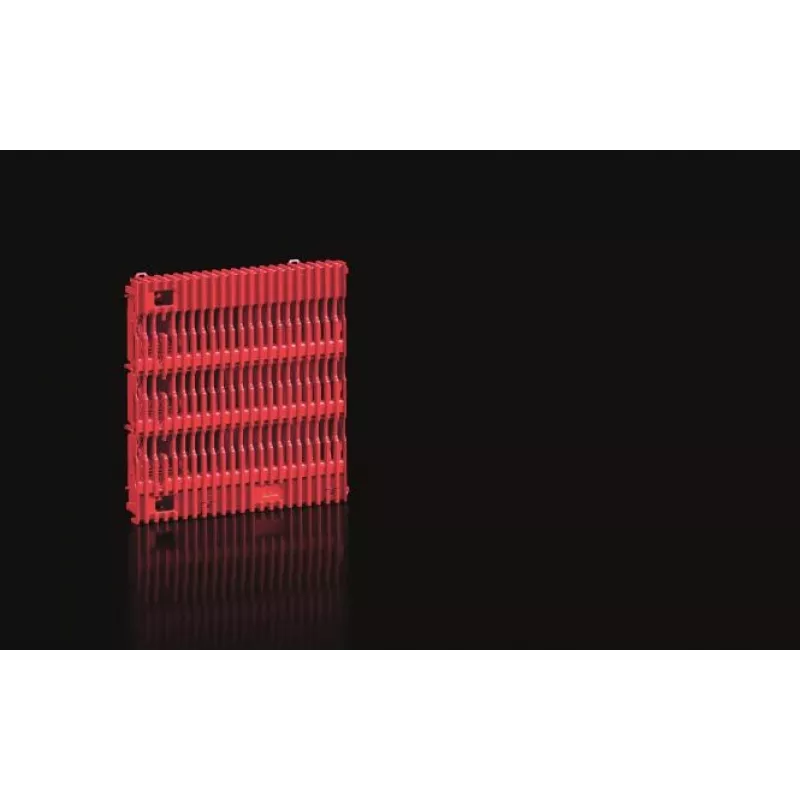

Rittal RiLineX Basismodul RX L 200 mm 1 6 is a base module designed for the RiLineX busbar system with a module length of 200 mm. It provides the mechanical and electrical interface required for mounting and connecting modular busbar components inside electrical distribution and control panels. The module is intended for compact power distribution layouts, panel assembly and retrofit installations where a standardized, modular busbar backbone is needed.

Advantages

The base module offers a standardized form factor and a precise mechanical fit for RiLineX components, enabling straightforward installation and consistent alignment of busbar elements. Its compact 200 mm length supports space-efficient panel designs while maintaining reliable electrical contact between connected modules. Compatibility with the RiLineX system simplifies component interchangeability and reduces assembly time in manufacturing and maintenance scenarios.

Suitable for

Key specifications

How to use

Install the base module into the panel according to the RiLineX system mounting guidelines, ensuring correct positioning and secure mechanical fixation. Fit compatible busbar segments and accessories to the module, verify alignment and make the required electrical connections following applicable safety standards and wiring practices. Use appropriate tools for fastening and torque settings as specified by the system manufacturer to ensure reliable contact and mechanical stability.

Recommendations

For reliable operation, plan panel layouts to accommodate the 200 mm module length and ensure sufficient clearance for installation and maintenance. Follow local regulations and the RiLineX installation instructions when making electrical connections. Regular visual checks and torque verification during scheduled maintenance help maintain contact integrity and system safety.
