Base de ventosa RAM Mounts RAP-224-1U

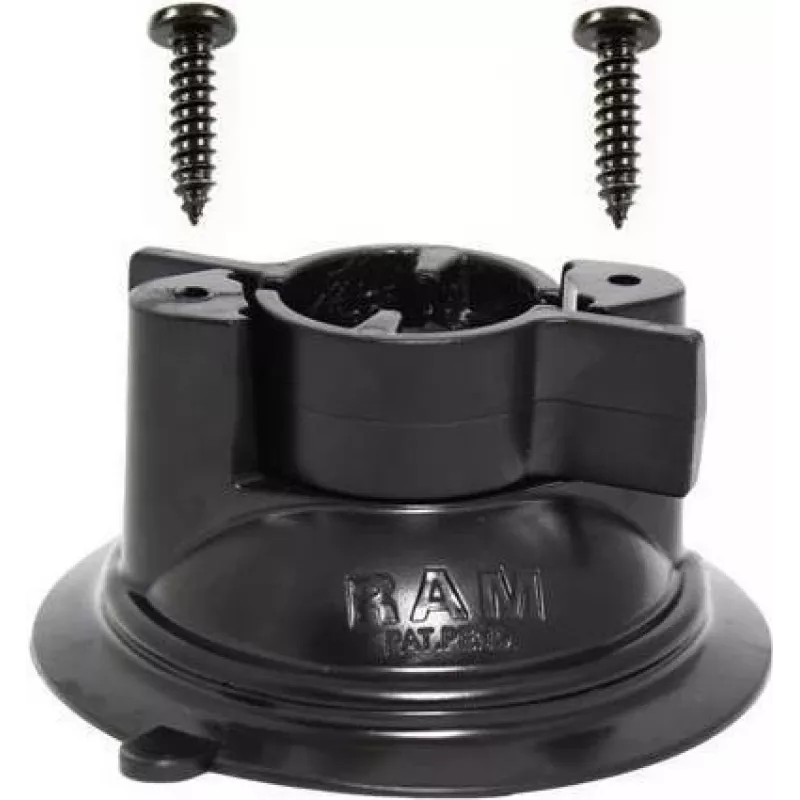

The RAP-224-1U suction cup twist-lock base from RAM Mounts features a 3.3" diameter suction cup and a standard RAM double-hole diamond-shaped end. The suction cup is made for strong attachment to smooth, non-porous surfaces and gives best results when mounted on glass. The diamond-shaped end has two holes spaced 1.912" center-to-center and is compatible with RAM diamond plates, AMPS pattern accessories, or the backs of compatible composite cradles. This base does not include the RAM 1" rubber connection ball.

Advantages

The composite construction and twist-lock mechanism provide a durable, stable mounting solution with a compact footprint. The suction cup offers extra strong holding power on smooth surfaces, while the diamond-shaped double-hole end maintains compatibility with a wide range of RAM plates and cradles. The unit's black finish resists wear and blends with vehicle and marine interiors.

Suitable for

• Mounting electronic devices on vehicle or boat windshields and windows
• Temporary or portable mounting on glass tabletops or smooth non-porous surfaces
• Connecting to RAM diamond plates or AMPS-pattern accessories

Key specifications

• Suction cup diameter: 3.3 inches
• Diamond-shaped double-hole spacing: 1.912 inches center-to-center
• Material: composite construction
• Finish: black
• Mount type: twist-lock suction cup base (no 1" rubber ball included)

How to use

Clean and dry the smooth mounting surface (glass recommended) before placing the suction cup. Position the suction cup, press firmly to expel air, and engage the twist-lock mechanism to secure the base. Attach the appropriate RAM diamond plate, AMPS-pattern adapter, or compatible composite cradle to the double-hole diamond end using matching fasteners, ensuring holes align and connections are tightened.

Recommendations

For best and safest performance, mount the suction cup on clean glass or similarly smooth non-porous surfaces, periodically check the suction and fasteners, and avoid subjecting the mount to extreme temperatures or heavy impacts. Note that the product does not include the RAM 1" rubber connection ball, so add the ball and arm assembly separately if a ball-and-socket connection is required.
