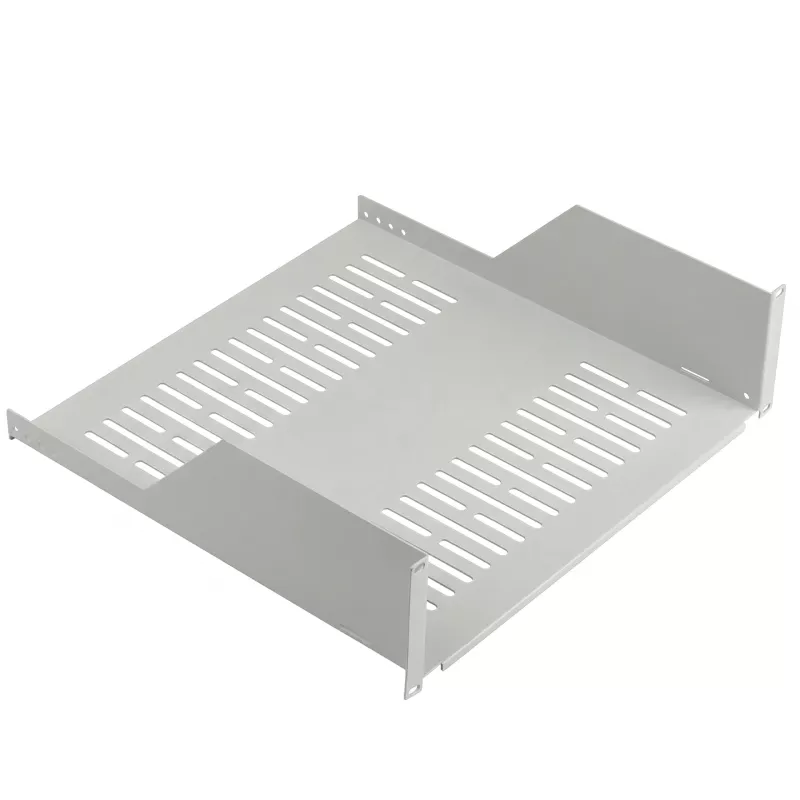

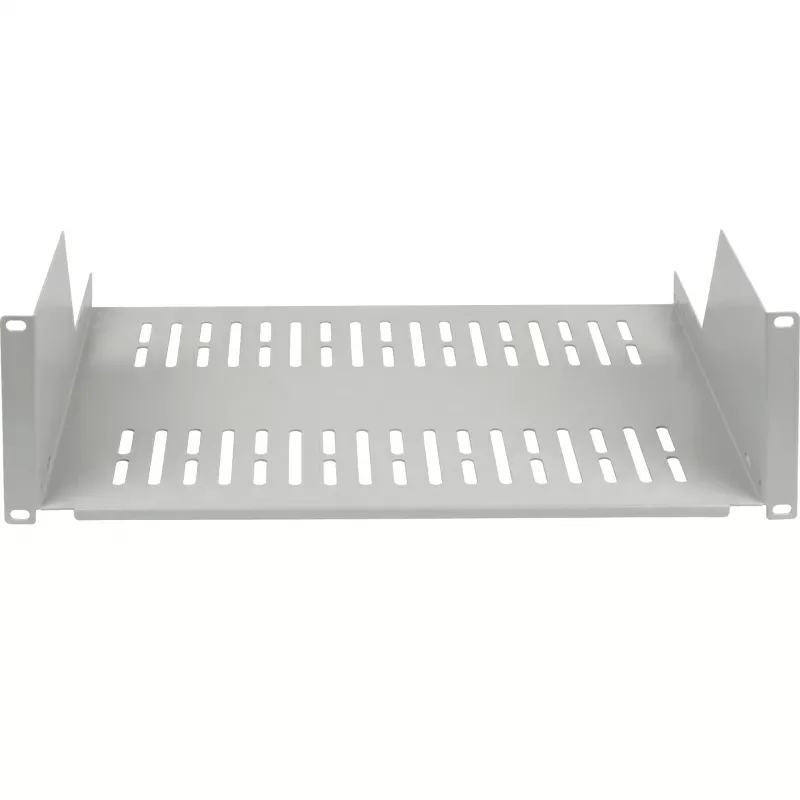

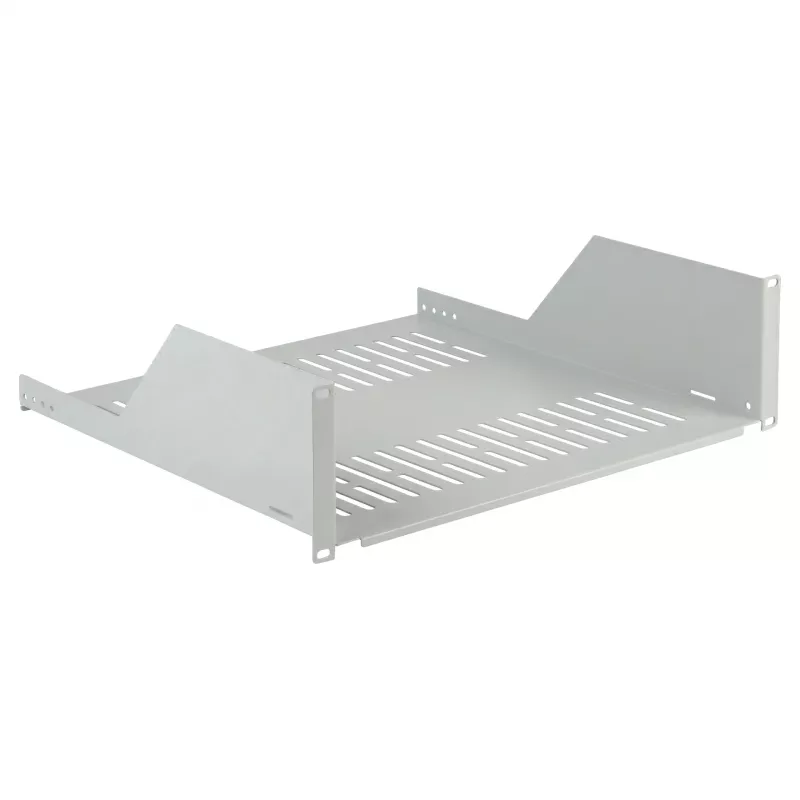

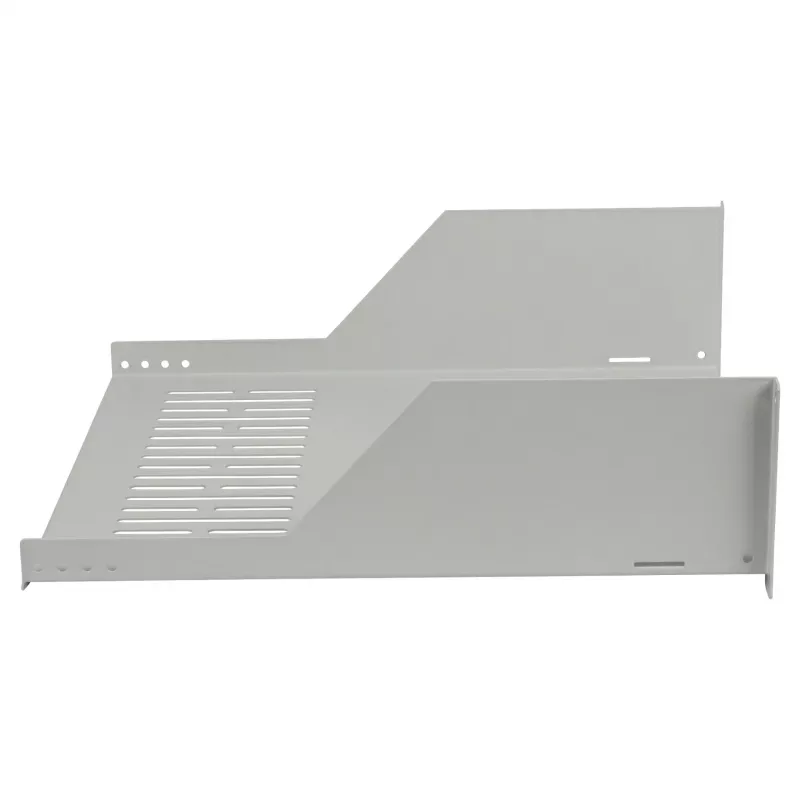

Bastidor fijo de 19" 3U EFB ELEKTRONIK, 450 mm de profundidad, carga 36 kg, gris claro RAL 7035

Support up to 36 kg of non-rackmount equipment with this robust 19-inch 3U fixed cantilever shelf, featuring a 450 mm usable depth and a durable powder-coated light grey finish (RAL 7035).

Overview

Engineered for standard 19-inch server racks and network cabinets, this shelf provides a stable platform for servers, switches, UPS units, and other equipment that lacks rack-mount ears. Its front-mounted 4-point design ensures easy installation directly onto rack profiles, while the solid steel construction guarantees long-term reliability.

What stands out

• High load capacity: 36 kg evenly distributed
• Generous 450 mm depth accommodates deep devices
• 3U height fits standard rack spacing
• Light grey RAL 7035 powder coating blends with most racks
• Includes mounting hardware (screws and cage nuts) for quick setup

Technical details

• Rack standard: 19 inch
• Rack units: 3U
• Shelf type: Fixed cantilever shelf
• Mounting: Front-mounted, 4-point
• Usable depth: 450 mm
• Maximum weight capacity: 36 kg
• Material: SPCC cold rolled steel
• Surface finish: Powder-coated
• Color: Light grey (RAL 7035)
• Ventilation: Solid (non-vented)
• Product dimensions (W x D x H): 482.6 x 450 x 133.35 mm
• Net weight: 3.5 kg
• Certifications: RoHS compliant
• Compatibility: Standard 19-inch server racks and network cabinets
• Mounting hardware included: Yes (screws and cage nuts)

Our verdict

A dependable, no-frills shelf that delivers solid support and easy installation for your rack-mounted infrastructure.
