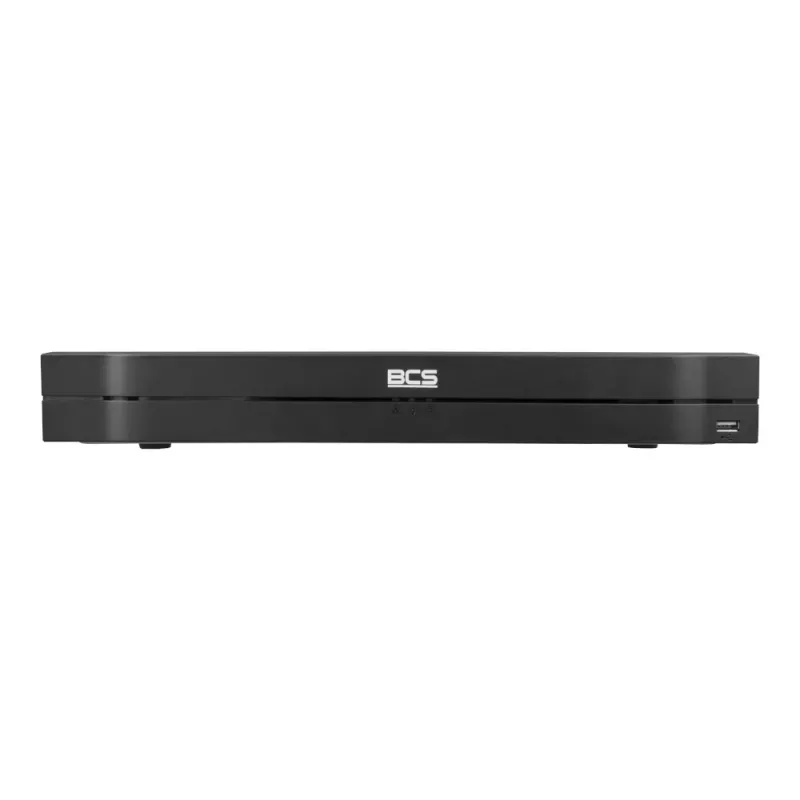

BCS 8-Channel 8K AI NVR Recorder BCS-L-NVR0802-A-8K-Ai2

The BCS-L-NVR0802-A-8K-Ai2 is a high-performance 8-channel network video recorder (NVR) designed for advanced surveillance systems. Supporting up to 8K resolution recording, it delivers exceptional image clarity and detail. Equipped with AI features such as perimeter protection, SMD Plus, and face detection, this NVR enhances security monitoring with intelligent analytics. With dual SATA bays supporting up to 10TB each, it offers ample storage for extended recording.

Advantages

This NVR provides ultra-high 8K recording resolution, ensuring every detail is captured. The AI capabilities reduce false alarms and improve event detection efficiency. Its compact design and low power consumption make it ideal for both small and medium-sized installations.

Suitable for

• Retail stores requiring high-definition surveillance
• Office buildings needing reliable security recording
• Warehouses and logistics centers
• Residential properties with advanced security needs

Key specifications

• 8 IP channels with up to 8K (7680x4320) recording resolution
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming bandwidth: 80 Mbps, outgoing: 60 Mbps
• HDMI output up to 8K, VGA output
• 1 audio input and 1 audio output (RCA)
• 4 alarm inputs, 2 alarm outputs
• 2 SATA HDD bays, each supporting up to 10TB
• 1 RJ-45 Gigabit Ethernet port
• 1 USB 2.0 and 1 USB 3.0 port
• AI features: perimeter protection, SMD Plus, face detection (1 channel)
• Power supply: DC12V/4A, consumption <10W (without HDD)
• Operating temperature: -10°C to +55°C
• ONVIF Profile S/G/T compliant

Recommendations

For optimal performance, use with BCS cameras supporting 8K or high-resolution IP cameras. Ensure proper ventilation and use enterprise-grade HDDs for 24/7 recording.
