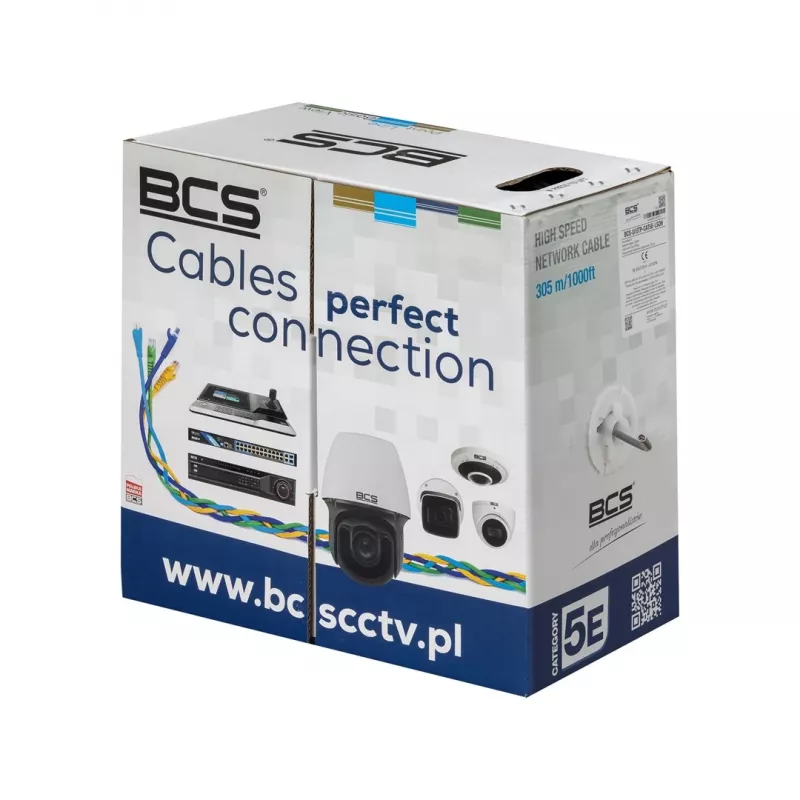

BCS BCS-U/UTP-CAT5E-LSOH Cable Ethernet masivo Cat5e U/UTP LSOH de cobre desnudo macizo, 305m, gris

The BCS BCS-U/UTP-CAT5E-LSOH is a high-performance Cat5e bulk Ethernet cable designed for reliable data transmission in indoor horizontal cabling applications. Featuring U/UTP (unshielded twisted pair) construction with solid bare copper conductors, this cable ensures excellent signal integrity and supports data rates up to 100 Mbps (100BASE-TX) and 1000BASE-T over shorter distances. The Low Smoke Zero Halogen (LSOH) jacket provides enhanced fire safety, making it ideal for use in public buildings, schools, and offices where safety is paramount.

Advantages

This cable offers a perfect balance of performance and safety. The solid bare copper conductors provide superior conductivity and durability compared to copper-clad aluminum (CCA) alternatives. The LSOH jacket emits low smoke and no halogen gases in case of fire, reducing toxic fumes and improving evacuation safety. With a bandwidth of 100 MHz and compliance with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, it ensures reliable network performance for voice, data, and video applications.

Suitable for

• Indoor horizontal cabling in data networks
• Structured cabling systems in offices, schools, and hospitals
• Installations requiring low smoke and zero halogen fire safety
• 10/100/1000BASE-T Ethernet networks

Key specifications

• Cable Type: U/UTP (Unshielded Twisted Pair)
• Category: Cat5e
• Conductor: Solid Bare Copper, 24 AWG
• Number of Pairs: 4
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Cable Length: 305 meters (1000 ft)
• Colour: Grey
• Bandwidth: 100 MHz
• Characteristic Impedance: 100 ± 15 Ohm
• Operating Temperature: -20°C to +60°C
• Packaging: Reel-in-box

Recommendations

For optimal performance, ensure proper termination with Cat5e rated connectors and follow TIA/EIA-568-C.2 wiring standards. This cable is not recommended for outdoor use or direct burial. Always check local building codes for fire safety requirements.
