BCS Line BCS-L-NVR1602-A-4KE(2L) Grabadora NVR 4K de 16 canales

The BCS Line BCS-L-NVR1602-A-4KE(2L) is a high-performance 16-channel network video recorder (NVR) designed for professional surveillance systems. Supporting up to 8MP (4K UHD) resolution, it delivers exceptional image clarity. With dual SATA bays supporting up to 20TB total storage, it offers ample space for long-term recording. Advanced H.265+ compression reduces bandwidth and storage requirements without compromising quality.

Advantages

This NVR provides reliable 24/7 recording with intelligent video analytics including motion detection, line crossing, and intrusion detection. Its dual-stream recording and simultaneous playback of up to 16 channels ensure efficient monitoring. The unit supports remote access via BCS Manager and BCS Point mobile apps, making it ideal for both local and remote surveillance.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Residential complexes and gated communities
• Educational institutions and public facilities

Key specifications

• Video Input Channels: 16
• Max Recording Resolution: 8MP (4K UHD)
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio Compression: G.711a, G.711u, PCM
• HDD Bays: 2 SATA (up to 10TB each, total 20TB)

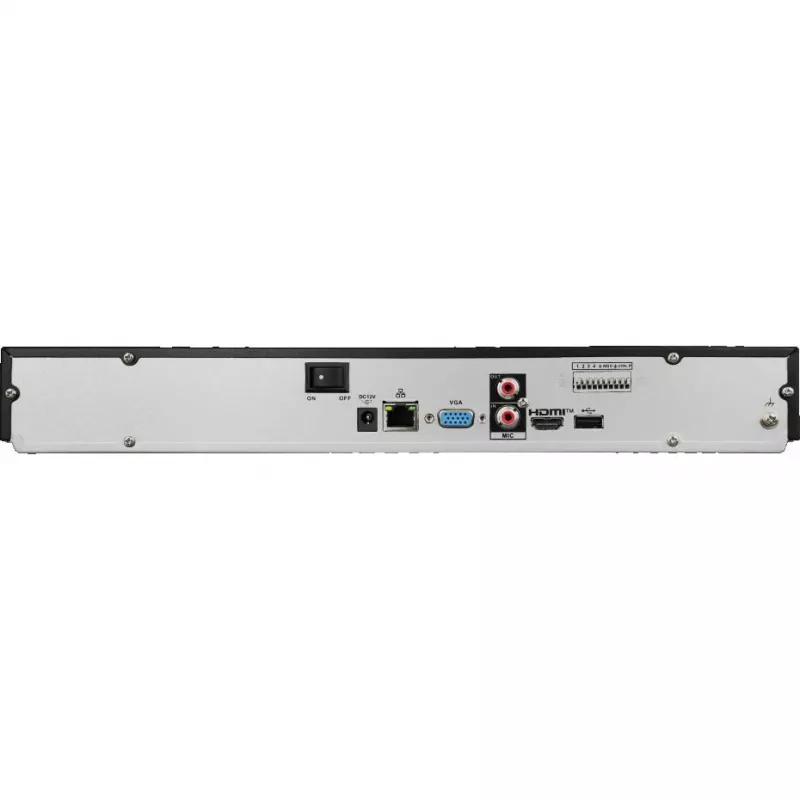

• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Network Interface: 1x RJ45 10/100/1000 Mbps Ethernet
• USB Ports: 1x USB 2.0, 1x USB 3.0
• Audio Input/Output: 1x RCA In / 1x RCA Out
• Alarm Input/Output: 4x In / 1x Out
• Power Supply: DC 12V / 4A
• Operating Temperature: -10°C to +55°C
• Mobile App Support: BCS Manager, BCS Point
• Intelligent Functions: Motion Detection, Line Crossing, Intrusion Detection, Object Left/Removed
• Playback Channels: 1/4/9/16 simultaneous
• Recording Modes: Manual, Schedule (Continuous, Motion, Alarm), Stop

Recommendations

For optimal performance, use compatible BCS cameras and high-quality CAT6 Ethernet cables. Ensure adequate ventilation and stable power supply. Regular firmware updates are recommended to maintain security and functionality.
