BCS NVR IP 4K 16 canales BCS-P-NVR1602-4KE(3)

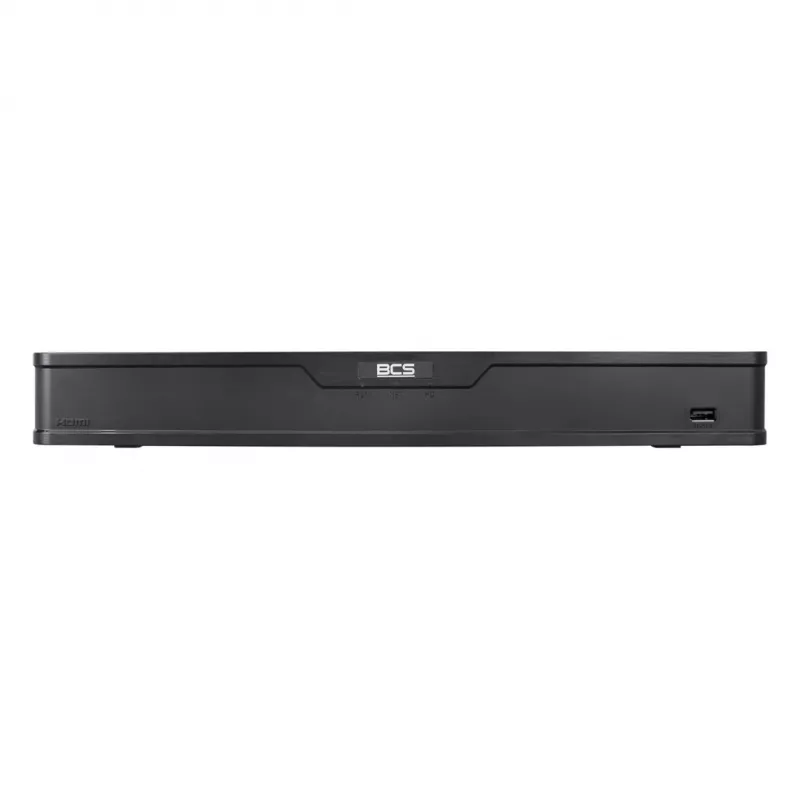

The BCS-P-NVR1602-4KE(3) is a high-performance 16-channel IP network video recorder supporting up to 8MP (4K) resolution per channel. Designed for professional surveillance systems, it offers advanced H.265+ compression, dual HDD bays, and reliable embedded Linux operation.

Advantages

Supports up to 20TB total storage (2x 10TB), 4K HDMI output, and 160 Mbps recording bandwidth. H.265+ compression reduces bandwidth and storage requirements without compromising image quality.

Suitable for

• Medium to large security installations requiring 16 IP cameras
• Retail, warehouse, office, and residential surveillance
• Users needing 4K resolution and long-term recording

Key specifications

• 16 IP camera channels, max 8MP per channel
• H.265+/H.265/H.264+/H.264 compression
• 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• 2x SATA 3.0 HDD bays, up to 10TB each
• 1x RJ-45 Gigabit Ethernet, 1x USB 2.0, 1x USB 3.0
• 4 alarm inputs, 2 alarm outputs, 1 audio in/out
• DC 12V/4A power, <10W consumption (without HDD)
• Embedded Linux OS, mobile apps: BCS Manager, DMSS

Recommendations

Pair with BCS PoE switches and 4K IP cameras for a complete end-to-end surveillance solution. Use enterprise-grade SATA HDDs rated for 24/7 operation.
