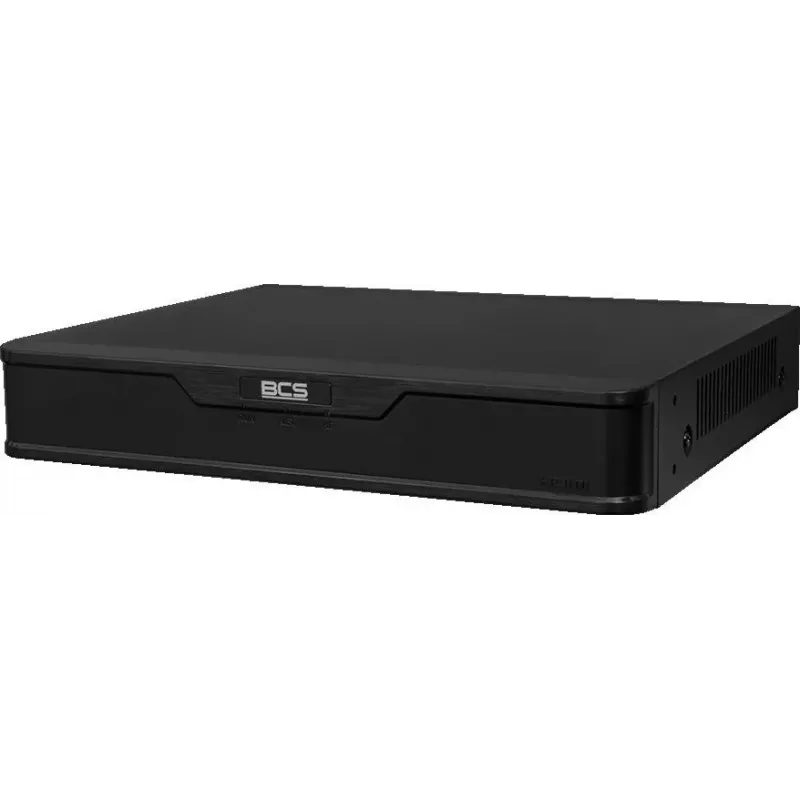

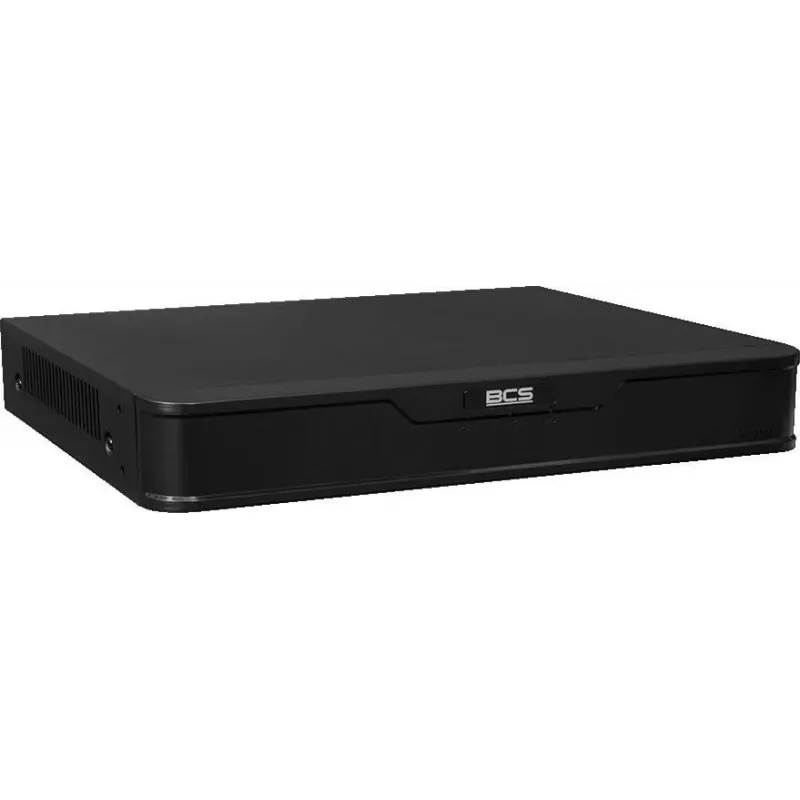

BCS Point P-NVR0401-4K-4P(3) Grabadora NVR 4K PoE de 4 canales

The BCS Point P-NVR0401-4K-4P(3) is a high-performance 4-channel network video recorder (NVR) designed for small to medium-sized surveillance systems. Supporting up to 8MP (4K) resolution per channel, this NVR delivers crisp and detailed video footage. Equipped with 4 PoE ports (IEEE 802.3af/at), it simplifies installation by powering IP cameras directly through the Ethernet cables. The recorder features H.265+ compression for efficient storage and bandwidth usage, and offers flexible recording modes including manual, schedule, and motion detection. With a single SATA HDD bay supporting up to 8TB, it provides ample storage for extended recording. The P-NVR0401-4K-4P(3) is ONVIF compliant (Profile S/G/T) and compatible with mobile apps like BCS Manager and DMSS for remote viewing.

Advantages

This NVR offers a cost-effective solution for 4-camera setups with built-in PoE, eliminating the need for separate power adapters. Its 4K recording capability ensures high-definition surveillance, while H.265+ compression reduces storage requirements without compromising image quality. The compact design and easy-to-use interface make it ideal for retail stores, offices, and homes.

Suitable for

• Small businesses and retail shops
• Office environments
• Residential surveillance
• Warehouses and storage facilities

Key specifications

• Video Input Channels: 4 IP channels
• PoE Ports: 4 (IEEE 802.3af/at)
• Max Recording Resolution: Up to 8MP (4K) per channel
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio Input/Output: 1x RCA In, 1x RCA Out
• Network Interface: 1x RJ-45 (10/100 Mbps Ethernet)
• HDD Bays: 1x SATA (up to 8TB)
• USB Ports: 2x USB 2.0
• Max Incoming Bandwidth: 40 Mbps
• Max Outgoing Bandwidth: 20 Mbps
• Power Supply: DC 48V
• ONVIF Support: Yes (Profile S/G/T)
• Mobile App Support: Yes (BCS Manager, DMSS)
• Operating Temperature: -10°C to +55°C
• Playback Resolution: 4K/1080p/720p
• Recording Modes: Manual, Schedule (Continuous, Motion Detection, Alarm), Stop

Recommendations

For optimal performance, use compatible BCS Point IP cameras and a high-quality CAT5e or CAT6 Ethernet cable. Ensure the NVR is placed in a well-ventilated area to maintain operating temperature. Regular firmware updates are recommended to enhance security and features.
