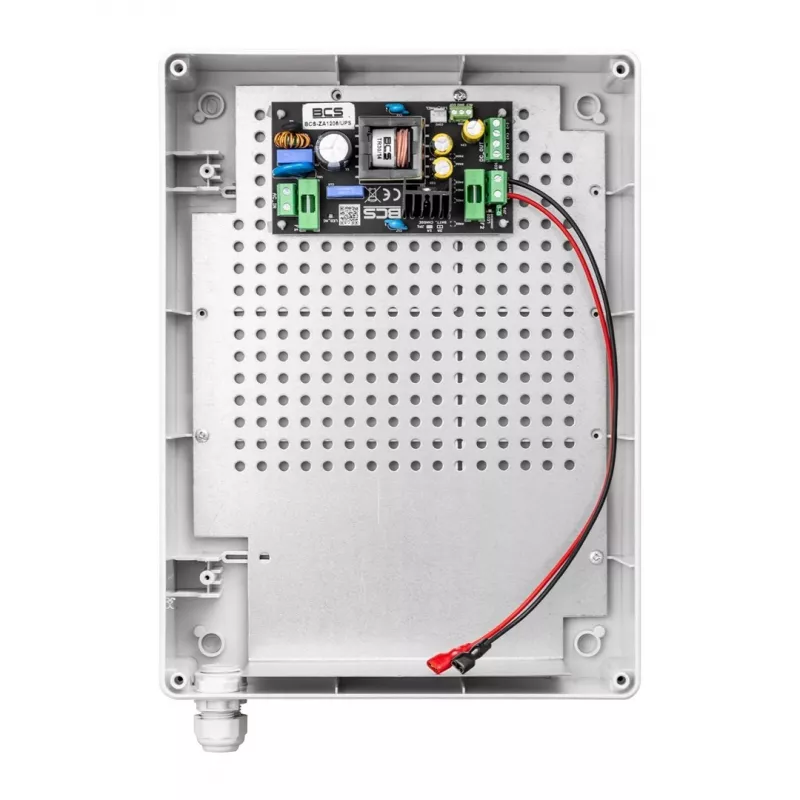

BCS ZA1206/UPS/XL 12V 6A 72W Fuente de alimentación SAI con cargador de batería para CCTV y control de accesos

The BCS ZA1206/UPS/XL is a professional-grade uninterruptible power supply (UPS) designed for security and access control systems. It provides a stable 12V DC output with up to 6A current and 72W power, ensuring reliable operation of CCTV cameras, access controllers, and alarm panels. The integrated battery charger supports 12V lead-acid batteries (AGM/Gel) up to 40Ah, with a charging current of 1.5A, keeping your system powered during outages.

Advantages

This UPS offers adjustable output voltage (11.5V - 13.8V) to match your equipment's needs, comprehensive protection against short circuits, overload, overvoltage, deep discharge, and reverse battery connection, and high efficiency (≥85%). Its wall-mountable metal enclosure ensures durability and easy installation.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• Security applications requiring backup power

Key specifications

• Output Voltage: 12V DC (adjustable 11.5V - 13.8V)
• Output Current: 6A
• Output Power: 72W
• Input Voltage: 100-240V AC, 50/60Hz
• Battery Type: 12V Lead-Acid (AGM/Gel)
• Max Battery Capacity: 40Ah
• Battery Charging Current: 1.5A
• Protection: Short Circuit, Overload, Overvoltage, Deep Discharge, Reverse Battery Connection
• Efficiency: ≥85%
• Operating Temperature: -10°C to +40°C
• Enclosure Material: Metal
• Mounting: Wall-mount
• LED Indicators: AC Power, DC Output, Battery Charging

Recommendations

For optimal performance, use a 12V lead-acid battery (AGM or Gel) with capacity up to 40Ah. Ensure proper ventilation and secure wall mounting. This unit is ideal for professional security installations requiring reliable backup power.
