Sistema de alimentación ininterrumpida (SAI) Phoenix Contact QUINT-UPS/24DC/24DC/5

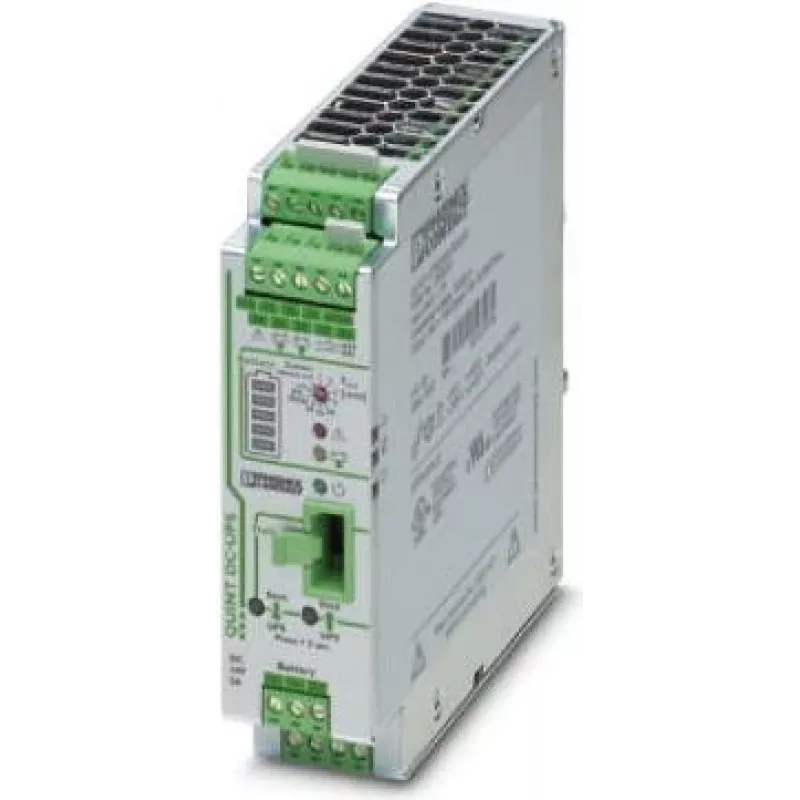

The Phoenix Contact QUINT-UPS/24DC/24DC/5 is a compact 24 V DC uninterruptible power supply module that provides an output current of 5 A. Designed to work with input voltages from 18 to 30 V and deliver a stable 18 V output, this module enables integration of a power supply, UPS functionality, and energy storage into a tailored solution for industrial and automation applications. The unit has IP20 protection, a grey enclosure, and complies with RoHS and relevant EN standards; its dimensions are 35 mm (width) × 125 mm (depth) × 130 mm (height).

Advantages

The QUINT-UPS/24DC/24DC/5 offers uninterrupted DC power with compact dimensions suitable for control cabinets and limited-space installations. It supports system-level integration of power supply, UPS and energy storage functions, ensures compliance with international standards, and provides a predictable 18 V output for connected loads.

Suitable for

Key specifications

How to use

Mount the UPS module inside a suitable electrical enclosure or control cabinet following Phoenix Contact mounting recommendations and safety rules. Connect the input to a 18–30 V DC supply and wire the 18 V DC output to the load or downstream power rail. Integrate energy storage (battery or capacitor) as required by your system design and the manufacturer’s instructions. Verify polarity, secure connections, and follow any commissioning steps in the product manual before applying full load.

Recommendations

Install the module in a dry, ventilated enclosure with ambient conditions within the device’s specified limits. Use appropriate fusing on input and output circuits, observe polarity and grounding practices, and consult the official Phoenix Contact documentation for battery selection, wiring diagrams, and maintenance intervals.
