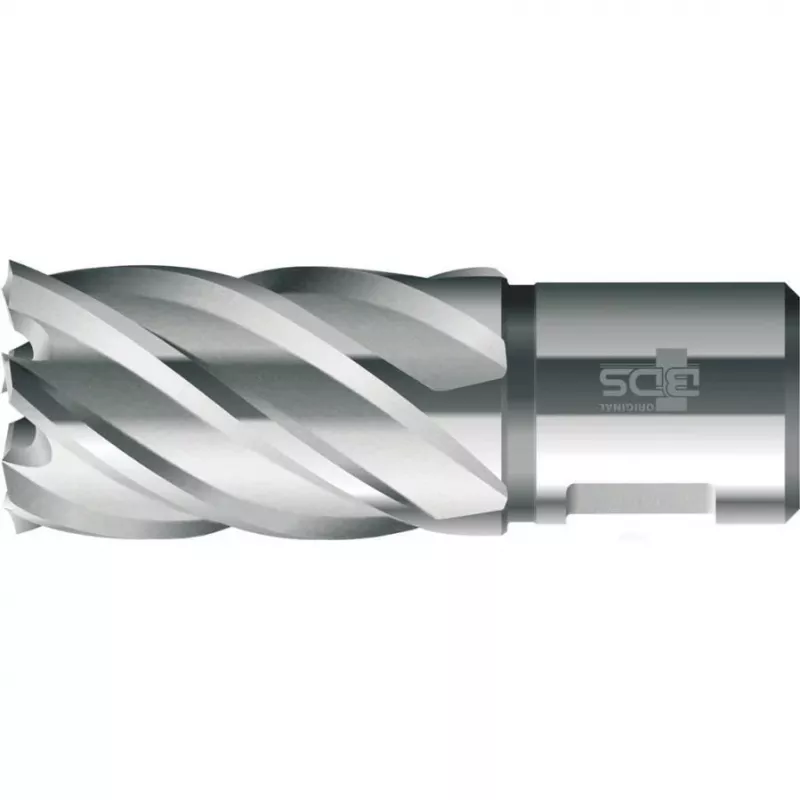

BDS Broca de corona HSS estándar 17,0 mm profundidad de corte 30 mm vástago Weldon (KBK-017)

For precise hole drilling in steel and structural steel, this BDS HSS annular cutter with a 17.0 mm cutting diameter and 30 mm cutting depth delivers clean, burr-free results. Its Weldon shank ensures a secure fit in magnetic drilling machines, making it a reliable choice for metalworking and fabrication tasks.

Advantages

The high-speed steel construction provides excellent wear resistance and long tool life. The 4-flute design promotes efficient chip evacuation, reducing heat buildup and improving cutting performance. The bright finish enhances corrosion resistance and allows for smooth operation.

Suitable for

• Drilling in structural steel and steel plates
• Non-ferrous metals such as aluminum and copper
• Metalworking, fabrication, and construction applications
• Use with magnetic drilling machines equipped with a Weldon chuck

Key specifications

• Cutting diameter: 17.0 mm
• Cutting depth: 30 mm
• Shank type: Weldon (19 mm / 3/4 inch)
• Material: High-Speed Steel (HSS)
• Number of flutes: 4
• Series: Standard
• Manufacturing standard: DIN 845 (or equivalent)

Recommendations

For optimal performance, use with a suitable cutting fluid and ensure the magnetic drill is properly secured. Regularly inspect the cutter for wear and replace when cutting edges become dull to maintain hole quality.
