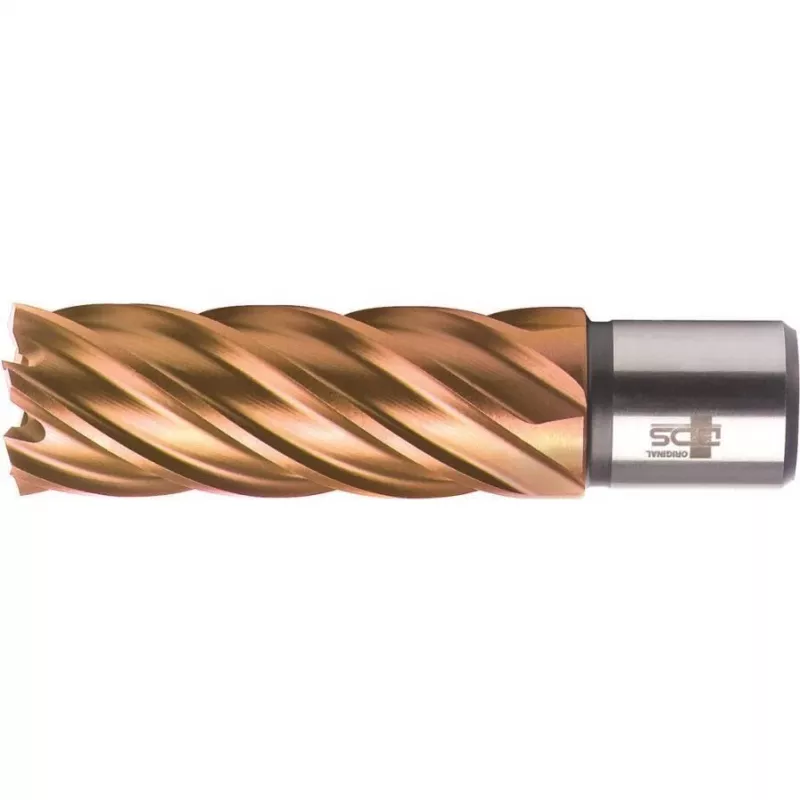

BDS Broca de corona HSS-VarioPLUS 12 mm con vástago Weldon, 55 mm profundidad de corte KBL-VP012

Professional annular cutter for core drilling in steel, stainless steel, and non-ferrous metals. The BDS HSS-VarioPLUS 12 mm cutter delivers clean, burr-free holes with exceptional speed and tool life, thanks to its precision-ground HSS body and special VarioPLUS coating. Designed for magnetic core drilling machines with a 19 mm Weldon chuck, this cutter excels in structural steelwork, fabrication, and maintenance applications where accuracy and efficiency are critical.

Advantages

The HSS-VarioPLUS series combines high-speed steel toughness with an advanced coating that reduces friction and heat. Its optimized flute geometry ensures efficient chip evacuation, even in deep cuts, while the internal cooling design keeps the cutting edge cool for extended service life. The Weldon shank provides secure, vibration-free mounting, and the precision-ground cutting edges produce smooth, round holes without reaming.

Suitable for

• Core drilling in steel up to 900 N/mm² tensile strength
• Stainless steel and non-ferrous metal applications
• Magnetic core drilling machines with Weldon 19 mm chuck
• Structural steel fabrication, bridge construction, and heavy equipment repair
• On-site drilling where portable, high-performance tooling is required

Key specifications

• Cutting diameter: 12.0 mm
• Cutting depth: 55 mm
• Shank type: Weldon, 19 mm (3/4 inch)
• Overall length: approx. 82 mm
• Material: High-speed steel (HSS) with VarioPLUS coating
• Precision ground for accuracy and long life
• Designed for internal cooling
• Packaging unit: 1 piece

Recommendations

For best results, use with a suitable magnetic drill press and apply cutting fluid or coolant. Ensure the machine's spindle speed matches the cutter diameter and material. Regularly inspect the cutter for wear and replace when cutting performance declines. Always follow safety guidelines for metal drilling.
