BDS HSS VarioPLUS Broca de corona 20 mm, 55 mm de profundidad de corte, vástago Weldon 19 (KBL-VP020)

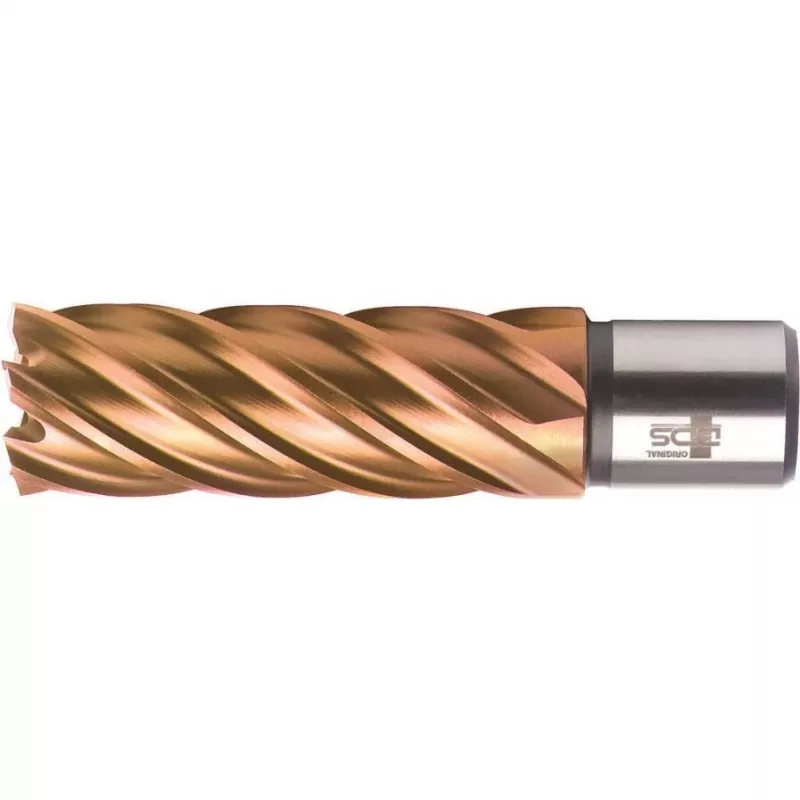

The BDS HSS VarioPLUS 20 mm annular cutter stands out from conventional twist drills by removing only a ring of material, dramatically reducing power consumption and machining time. Its precision-ground multi-cut geometry delivers smooth, burr-free holes in steel, stainless steel, cast iron, and non-ferrous metals, while the Weldon 19 shank ensures secure clamping in magnetic drilling machines and industrial drill presses.

Highlights

• High-speed steel (HSS) with VarioPLUS technology for enhanced wear and heat resistance
• 20 mm cutting diameter and 55 mm cutting depth for deep hole applications
• Weldon 19 (3/4") shank for reliable torque transmission
• Optimized multi-cut geometry for efficient chip evacuation and smooth cutting
• Re-sharpenable for extended service life

In daily use

Whether you are drilling structural steel, fabricating stainless steel components, or working with cast iron, this annular cutter delivers consistent performance. The precision ground cutting edges maintain excellent concentricity, producing accurate holes with minimal burr formation. For optimal results and extended tool life, use a suitable cutting fluid or coolant during operation. The cutter is compatible with standard magnetic drilling machines and can be used on industrial drill presses with an appropriate adapter.

Full specifications

• Brand: BDS
• Model: KBL-VP020
• MPN: KBL-VP020
• EAN: 4250187503573
• Cutter type: Annular cutter (core drill)
• Material: High-speed steel (HSS)
• Series/Technology: HSS-VarioPLUS
• Cutting diameter: 20 mm
• Cutting depth: 55 mm
• Shank type: Weldon 19 (3/4")
• Recommended materials: Steel, stainless steel, cast iron, non-ferrous metals
• Application: Core drilling, hole cutting
• Compatibility: Magnetic drilling machines, industrial drill presses (with adapter)
• Geometry: Optimized multi-cut geometry
• Coolant usage: Recommended for extended tool life
• Re-sharpenable: Yes
• Manufacturing process: Precision ground
• Advantages: Faster drilling, less power consumption compared to twist drills

Final note

Engineered for professionals who demand precision and efficiency, the BDS HSS VarioPLUS 20 mm annular cutter is a reliable choice for demanding metalworking tasks. Its robust construction and advanced geometry ensure consistent performance and long tool life, making it a valuable addition to any workshop.
