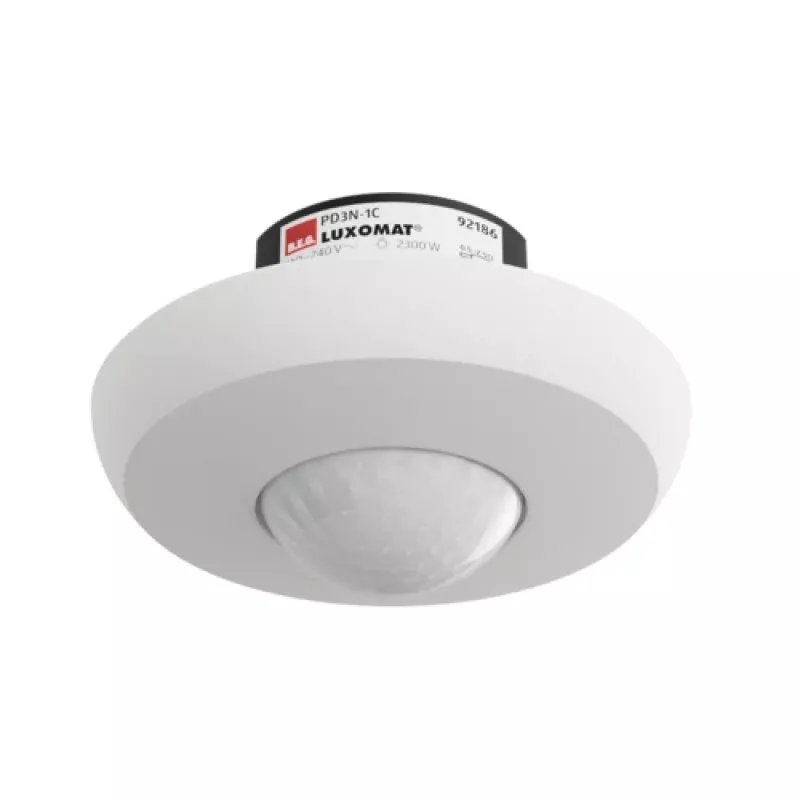

BEG 92186 detector de movimiento PIR de techo PD3-UP-1C RAL9010, 1 canal, empotrado, blanco puro

With a 360° detection angle and an 8-metre range, the BEG 92186 ceiling motion detector delivers comprehensive coverage for indoor lighting control. This flush-mounted PIR sensor in pure white (RAL 9010) blends seamlessly into ceilings while providing reliable, energy-efficient automation.

Overview

The BEG PD3-UP-1C is a passive infrared presence detector designed for ceiling installation. It features a single switching channel suitable for lighting loads up to 2300 W resistive or 600 W LED. The integrated light sensor (10–2000 lux) and adjustable time delay (10 seconds to 60 minutes) allow precise adaptation to room conditions and user preferences.

What stands out

• 360° detection angle with an 8 m diameter coverage at 2.5 m mounting height
• Flush-mounted design with only 52 mm visible diameter and 10 mm height
• High switching capacity: 2300 W resistive, 1000 VA inductive, 600 W LED
• Wide light sensitivity range (10–2000 lux) for daylight-dependent operation
• UV-stabilised polycarbonate housing for durability
• Simple 3-wire connection for easy installation

Technical details

• Sensor type: Passive Infrared (PIR)
• Mounting: Ceiling flush-mounted (Unterputz / UP)
• Detection angle: 360°
• Detection range: 8 m diameter at 2.5 m height
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching power: 2300 W resistive, 1000 VA inductive (cos φ=0.5), 600 W LED
• Light sensor range: 10–2000 lux
• Time delay: 10 s – 60 min
• Protection rating: IP20
• Operating temperature: -25 °C to +50 °C
• Recommended installation height: 2.0–3.0 m
• Visible dimensions: diameter 52 mm, height 10 mm; installation depth 30 mm
• Housing material: UV-stabilised polycarbonate
• Colour: Pure white (RAL 9010)

Our verdict

The BEG 92186 combines robust performance with a discreet design, making it an excellent choice for offices, corridors, and residential spaces. Its high switching capacity and flexible settings ensure reliable automation for modern LED lighting systems.
