B.E.G. Brück Detector de presencia KNX empotrable PD2N-KNXs-BA-DE, blanco 93533,0

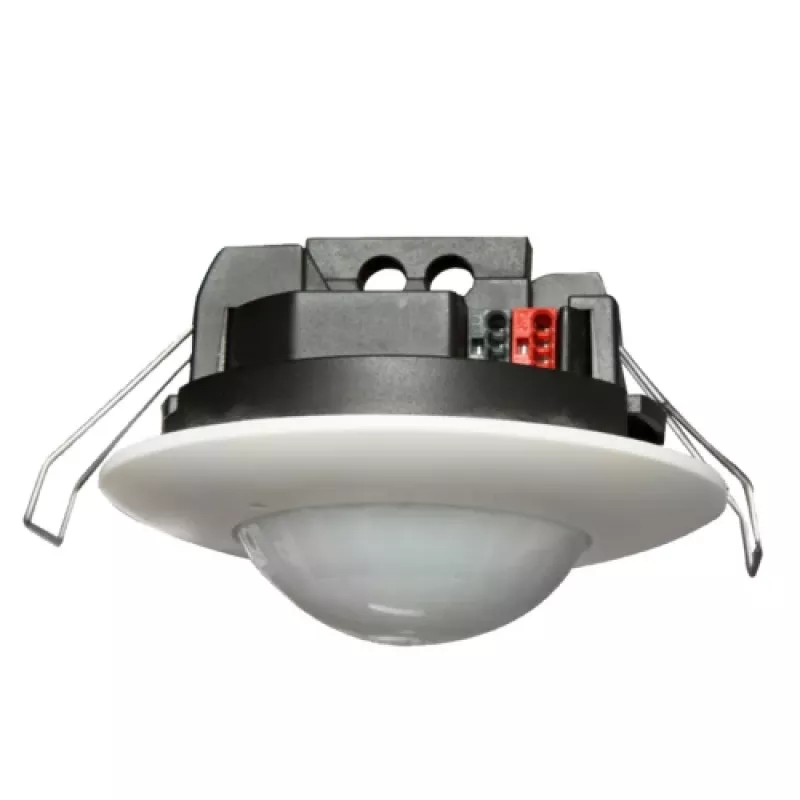

The B.E.G. Brück PD2N-KNXs-BA-DE is a KNX flush-mount presence detector with a 360° detection angle and a presence detection area of Ø 8 m at a mounting height of 2.5 m. It integrates constant light control on two channels and HVAC control on one channel, making it suitable for automated lighting and climate management in indoor spaces.

Advantages

KNX bus powered, no separate power supply needed. Self-learning delay time and short presence function adapt to usage patterns. Orientation light provides visual feedback. UV-stabilised polycarbonate housing in white (RAL 9010).

Suitable for

• Offices and meeting rooms
• Corridors and stairwells
• Classrooms and seminar rooms
• Residential living areas

Key specifications

• Communication protocol: KNX
• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection area (presence): Ø 8 m at 2.5 m mounting height
• Optimal mounting height: 2.5 m
• Operating voltage: KNX bus voltage (21-30 V DC)
• Power consumption: approx. 0.5 W
• IP rating: IP20
• Operating temperature range: -25 °C to +50 °C
• Brightness sensor range: 10 - 2000 Lux
• Adjustable delay time: 10 sec - 120 min
• Housing material: UV-stabilised polycarbonate
• Housing diameter: 82 mm
• Installation depth: 60 mm
• Colour: White (RAL 9010)

Recommendations

For optimal performance, install at a height of 2.5 m in indoor areas with stable temperature. Configure via ETS software to utilise constant light control and HVAC functions.
