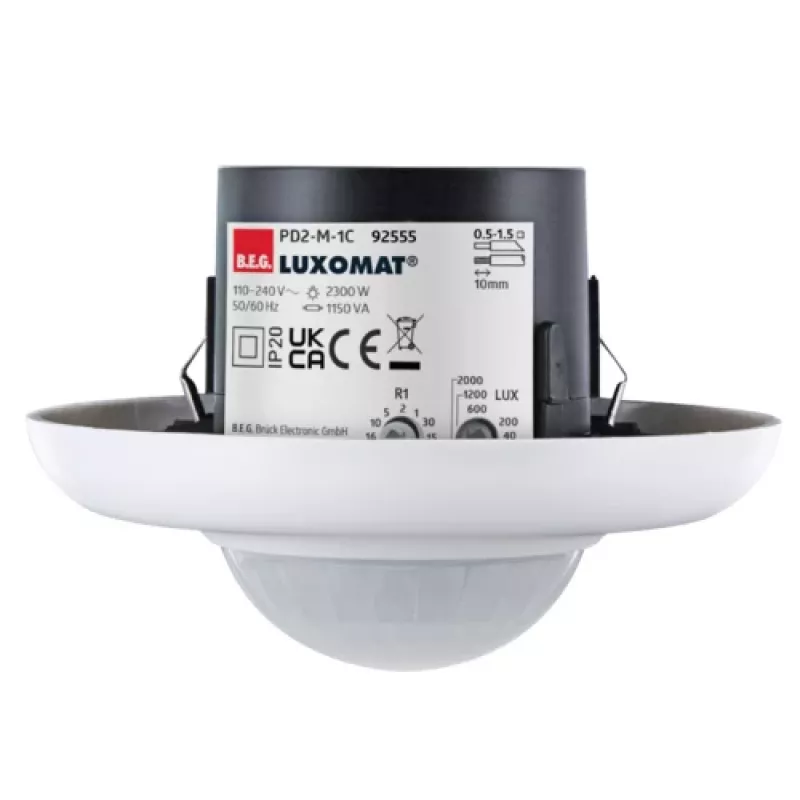

BEG LUXOMAT PD2-M-1C-UP Detector de presencia empotrable con PIR, 1 canal, Blanco

Lighting in unoccupied spaces wastes energy and shortens lamp life. The BEG LUXOMAT PD2-M-1C-UP presence detector solves this by automatically controlling lighting based on movement and ambient light, ensuring illumination only when needed. This flush-mounted PIR sensor is ideal for offices, corridors, restrooms, and storage rooms, offering reliable switching of up to 1000 W resistive load.

Who is it for

Facility managers, electricians, and building owners seeking an energy-efficient, discreet presence detector for indoor applications. It suits both new installations and retrofits where a clean ceiling appearance is desired.

Main features

• Passive infrared (PIR) detection with adjustable sensitivity for reliable presence sensing
• Flush-mounted design (installation opening Ø 60 mm, depth 36 mm) for a seamless ceiling integration
• 1-channel lighting control with max switching power: 1000 W resistive, 500 VA inductive, 250 W LED
• Adjustable light threshold (10–2000 lux) and time delay (15 sec – 30 min, pulse mode)
• Fully automatic or semi-automatic operation, manual override, test mode, and master/slave capability
• Wide detection area: Ø 8 m at 2.5 m mounting height (approx. 50 m²)
• White (RAL 9010) finish blends with standard ceilings

Specifications

• Detection technology: Passive Infrared (PIR)
• Mounting type: Flush-mounted (ceiling)
• Supply voltage: 230 V AC, 50 Hz
• Max. switching power (resistive): 1000 W (cos φ = 1)
• Max. switching power (inductive): 500 VA (cos φ = 0.5)
• Max. switching power (LED): 250 W
• Detection area: Ø 8 m at 2.5 m height (approx. 50 m²)
• Recommended mounting height: 2.0 – 3.0 m (optimal 2.5 m)
• Light sensor range: 10 – 2000 Lux
• Time delay setting: 15 sec – 30 min, Pulse
• Protection class: IP40 (visible part), IP20 (flush-mounted part)
• Operating temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Installation depth: 36 mm
• Installation opening diameter: 60 mm
• Control modes: Fully automatic, Semi-automatic
• Special features: Manual override, Test mode, Master/slave capable, Adjustable sensitivity

Tips

For optimal performance, mount the detector at 2.5 m height in a location with unobstructed view of the area. Adjust the light threshold to prevent switching on when daylight is sufficient, and use the test mode during commissioning to verify detection coverage.
