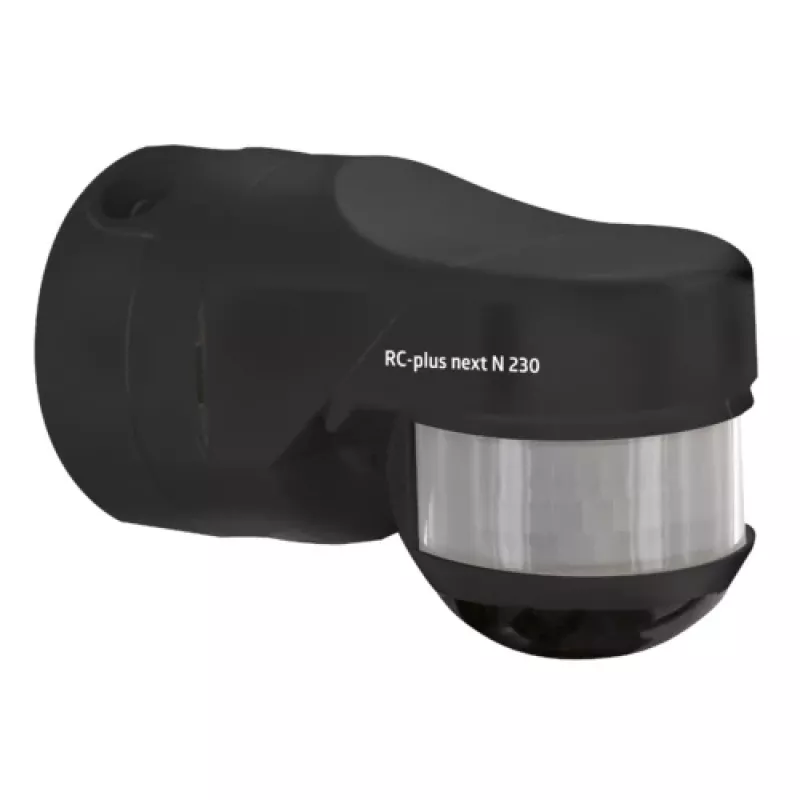

BEG RC-plus next N 230 sensor de movimiento negro con alcance de 230° y protección antiarrastre

For reliable outdoor motion detection in residential and commercial settings, the BEG RC-plus next N 230 in black combines a wide 230° detection angle with a 16 m tangential range. Its under-creep protection ensures that movement directly beneath the sensor is captured, making it ideal for securing entrances, driveways, and building perimeters. With an IP54 rating and UV-stabilized polycarbonate housing, this sensor withstands harsh weather while maintaining precise performance.

Key specifications

• Detection angle: 230°
• Tangential detection range: 16 m
• Frontal detection range: 6 m
• Under-creep protection: Yes
• Mounting type: Wall mounting
• Recommended installation height: 2.5 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power: 2300 W incandescent, 575 W LED/fluorescent (C-load), 1150 VA
• IP rating: IP54
• Protection class: II
• Color: Black (RAL 9005)
• Twilight switch adjustment: 2 – 2500 Lux
• Time delay adjustment: 10 sec – 30 min
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilized polycarbonate
• Control options: Remote control via optional IR remote
• Standby power consumption: < 0.5 W
• Special functions: Pulse function, test function, teach-in function

Why choose it

The RC-plus next N 230 delivers dependable motion detection with a broad coverage area and precise adjustment options. Its under-creep protection eliminates blind spots directly below the sensor, a common weakness in many detectors. The robust IP54 housing and wide operating temperature range ensure year-round functionality, while the low standby consumption keeps energy costs minimal. With support for remote control and advanced functions like pulse and teach-in, it adapts to diverse automation needs.

Ideal use cases

• Outdoor lighting control for residential driveways and gardens
• Security monitoring for commercial building entrances and loading docks
• Automation of exterior lights in public areas or walkways
• Integration into smart building systems for energy-efficient lighting

Good to know

Installation is straightforward with wall mounting at a recommended height of 2.5 m. The twilight switch and time delay are adjustable to suit specific lighting conditions and occupancy patterns. For enhanced convenience, an optional IR remote allows remote configuration without accessing the unit. The sensor is designed for 230 V AC mains operation and complies with protection class II for safe installation without grounding.
