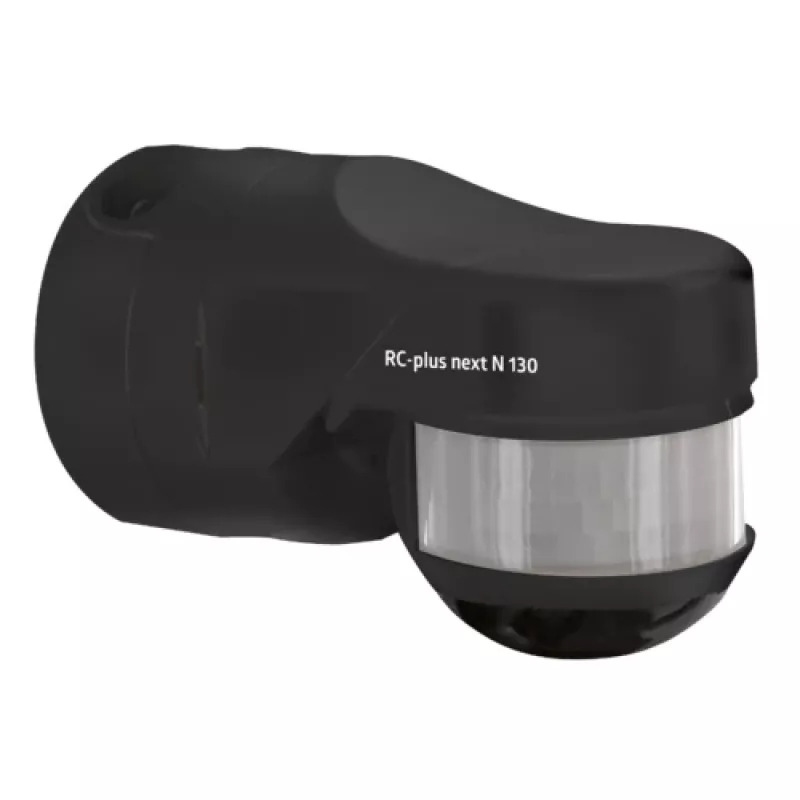

BEG RC-plus next N 130 Detector de movimiento negro con 130° de cobertura y protección antiarrastre

With a 130° detection angle and a tangential range of up to 16 metres, the BEG RC-plus next N 130 captures movement across wide areas with precision. This black motion detector is engineered for reliable switching of lighting and HVAC loads in both residential and commercial environments.

Overview

The RC-plus next N 130 is a passive infrared (PIR) motion detector designed for surface-mounted installation. It operates on 230V AC and features a relay output for phase-switched loads. The unit combines a wide detection pattern with adjustable time and brightness settings, making it suitable for corridors, stairwells, entrances, and outdoor covered areas.

What stands out

• 130° detection angle with 16 m tangential and 10 m radial range
• Under-creep protection prevents false triggering from small animals
• Adjustable time delay from 10 seconds to 30 minutes
• Brightness threshold adjustable from 10 to 2000 lux
• IP54-rated housing for dust and splash resistance
• Manual override via external push-button for convenience
• Test mode simplifies commissioning and walk-testing

Technical details

• Mounting type: Surface-mounted
• Colour: Black
• Operating voltage: 230V AC, 50/60 Hz
• Switching capacity: 2300 W incandescent, 1150 VA fluorescent/LED
• Time setting range: 10 sec – 30 min
• Brightness setting range: 10 – 2000 lux
• Protection class: IP54
• Ambient temperature: -25°C to +50°C
• Recommended installation height: 2.0 – 3.0 m
• Standby power consumption: < 1 W
• Housing material: UV-stabilized polycarbonate
• Output type: Relay (phase-switched)

Our verdict

The BEG RC-plus next N 130 delivers robust motion detection with flexible configuration. Its wide coverage, under-creep protection, and IP54 rating make it a dependable choice for demanding indoor and sheltered outdoor applications.
