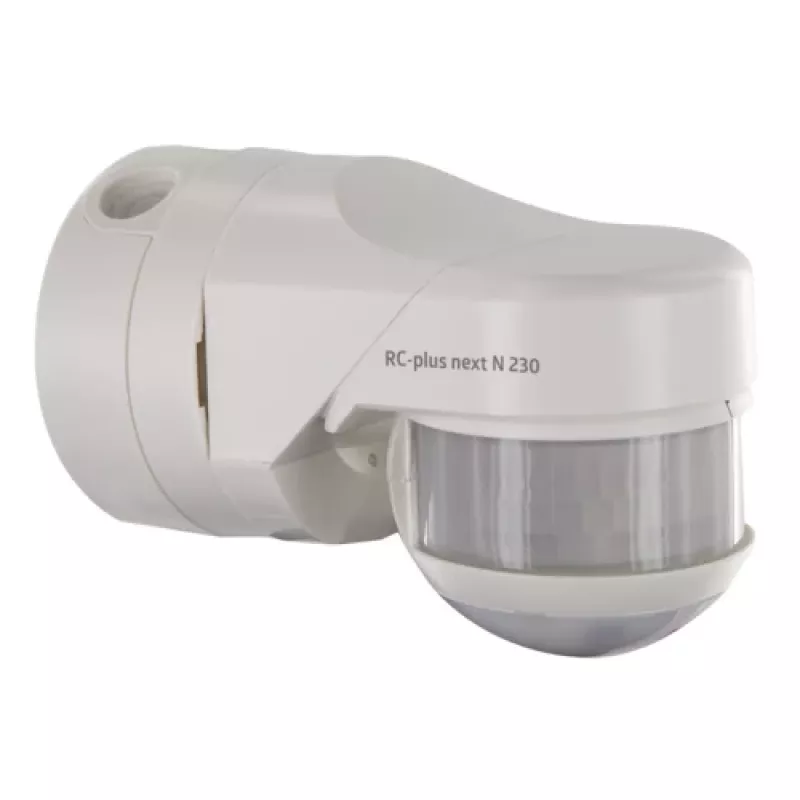

BEG BRCK LUXOMAT RC-plus next N 230 detector de movimiento blanco con alcance de 230° y protección antiinsectos

The BEG RC-plus next N 230 is a surface-mounted passive infrared motion detector engineered for reliable presence and movement detection in indoor and sheltered outdoor areas. Its 230° wide-angle lens and creep zone protection ensure comprehensive coverage, while the integrated light sensor and adjustable time delay allow precise automation of lighting and HVAC loads. With a robust IP54-rated housing and a 2300 W switching capacity, this detector is a versatile solution for energy-efficient building control.

Advantages

Exceptional detection coverage with a 230° field of view and tangential range up to 16 m in diameter. Creep zone protection eliminates blind spots directly beneath the sensor, enhancing security. The adjustable twilight threshold (10–2000 lux) and time delay (15 s – 30 min) provide flexible automation tailored to specific environments. High switching capacity supports resistive loads up to 2300 W and LED loads up to 600 W, making it suitable for a wide range of luminaires. IP54 protection ensures reliable operation in dusty or damp locations, and the wide operating temperature range (-25 °C to +50 °C) allows use in unheated spaces.

Suitable for

• Automatic lighting control in corridors, stairwells, and entrance areas
• Presence detection in offices, restrooms, and storage rooms
• Outdoor applications under canopies, carports, or covered walkways
• Integration with HVAC systems for demand-driven ventilation
• Security lighting activation in residential and commercial buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 230°
• Tangential detection range: 16 m diameter at 2.5 m mounting height
• Radial detection range: 6 m diameter at 2.5 m mounting height
• Creep zone protection: Yes
• Recommended mounting height: 2.5 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (resistive): 2300 W / 10 A
• Max. switching power (LED): 600 W
• Light sensor range: 10–2000 lux
• Time delay adjustment: 15 s – 30 min
• Protection rating: IP54
• Operating temperature: -25 °C to +50 °C
• Colour: White
• Mounting type: Surface (wall/ceiling)
• Output type: Relay (1 NO contact)

Recommendations

For optimal performance, install the detector at a height of 2.5 m in a location free from obstructions and direct sunlight. Adjust the twilight setting and time delay after installation to match the specific usage pattern. Suitable for both indoor and protected outdoor environments.
