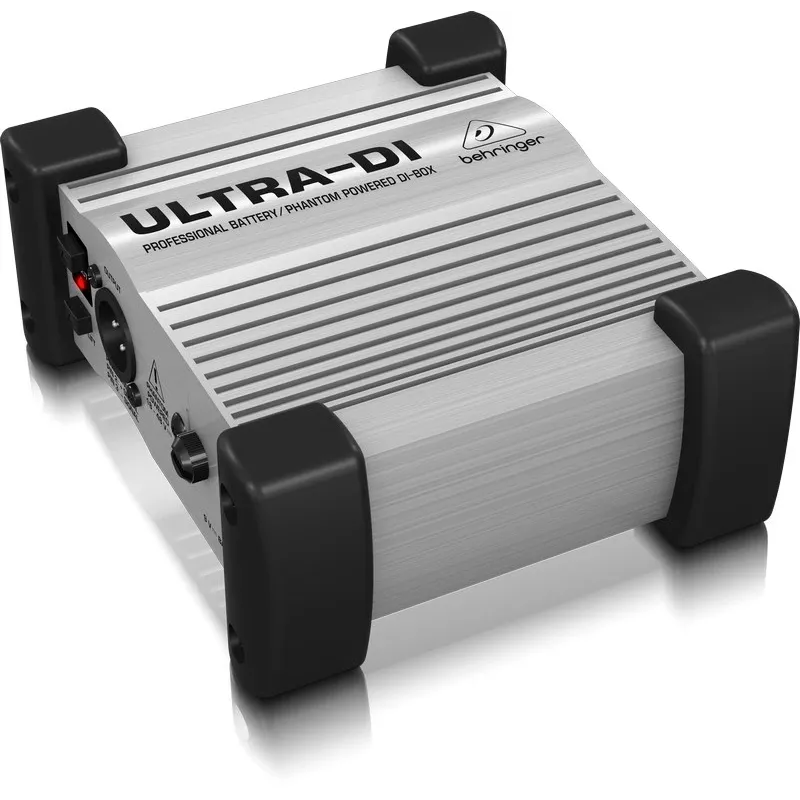

Behringer DI100 Caja de inyección directa activa Ultra-DI

Connecting unbalanced high-impedance instruments like electric guitars, basses, or keyboards directly to a mixing console often results in signal degradation, hum, and noise. The Behringer DI100 Ultra-DI Active Direct Injection Box solves this by converting your unbalanced signal into a balanced, low-impedance signal that can travel long distances without interference, preserving every nuance of your performance.

Who is it for

Musicians, live sound engineers, and recording studios seeking a reliable, road-ready DI solution. Whether you're on stage, in the studio, or setting up a permanent installation, the DI100 delivers clean, transparent signal transfer with minimal coloration.

Main features

• Active DI with Behringer OT-1 transformer for exceptional signal integrity

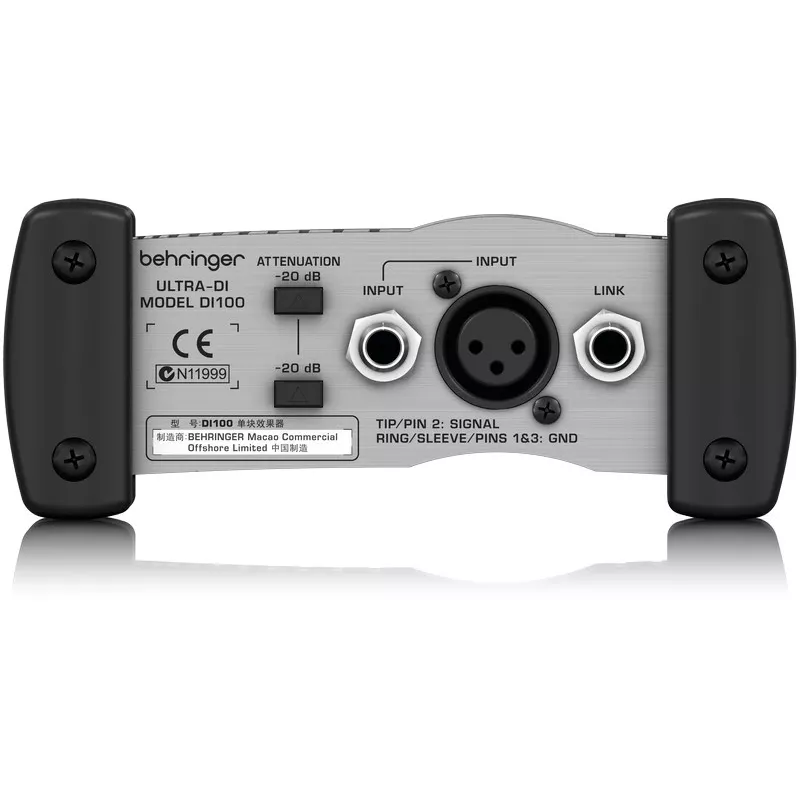

• 1/4" TS unbalanced input with parallel link output for connecting to an amplifier
• Balanced XLR output for direct connection to mixing consoles or audio interfaces
• Switchable -20 dB pad to handle high-output sources without distortion
• Ground lift switch to eliminate hum and buzz caused by ground loops
• Powered by +18 V to +48 V phantom power or a 9 V battery (approx. 15 hours)
• Rugged, oversized metal casing built to withstand the rigors of touring

Specifications

• Product type: Active Direct Injection (DI) Box
• Channels: 1 (mono)
• Input impedance: 250 kΩ
• Output impedance: 600 Ω
• Frequency response: 10 Hz – 50 kHz
• Maximum input level: +20 dBu (with pad engaged)
• Signal-to-noise ratio: >100 dB
• THD+N: <0.005%
• Internal transformer: Behringer OT-1
• Construction: Road-suitable, oversized metal casing

Tips

For best results, engage the ground lift if you encounter hum. Use the -20 dB pad when connecting line-level sources or active instruments to prevent clipping. The parallel output lets you send a dry signal to your amp while feeding the PA or recording interface.
